Dashboards - Configure your Dashboards instance to accept incoming connections

View as Markdown

Find out how to configure your Dashboards instance to accept incoming connections

Objective

Public Cloud Databases allow you to focus on building and deploying cloud applications while OVHcloud takes care of the database infrastructure and maintenance in operational conditions.

This guide explains how to configure your Dashboards instance to accept incoming connections.

Requirements

  • A Public Cloud project in your OVHcloud account
  • A Dashboards service running on your OVHcloud Public Cloud Databases (this guide can help you to meet this requirement)

OVHcloud Console Access

  • Direct link:
  • Navigation path: Public Cloud > Select your project > Analytics

Instructions

Configure your Dashboards instance to accept incoming connections

Before making a connection, we need to verify that our Dashboards instance is correctly configured. In the left-hand menu of your Public Cloud project, click Managed Dashboards under Analytics, then click the name of your Dashboards instance.

Step 1: Verify your user roles and password

Select the Users tab, then reset the password of the avnadmin user, which comes with the Admin role: click the ... button on the row of the user, then Reset password. The password is displayed only once: note it down.

Info

Other users can be created in your Dashboards instance web UI, from the Users tab of the Server Admin panel.

Step 2: Authorise incoming connections to your Dashboards instance

Warning

For security reasons the default network configuration doesn't allow any incoming connections. It is thus critical you authorise the suitable IP addresses in order to successfully access your service.

In this step, open the Configuration tab and locate the IP restrictions section. IP addresses must be authorised here before they can connect to your service.

Click Add, enter a single IP address or an IP block in the IP block (CIDR) field, then click Save.

You can remove an authorised IP from the same section.

Info

If you want to allow connections from the outside, you can enter the IP 0.0.0.0/0. Please use it carefully.

Connect to your Dashboards Instance

In your Dashboards instance, collect the URI in the Connection details card of the Overview tab.

Then connect to your Dashboards instance:

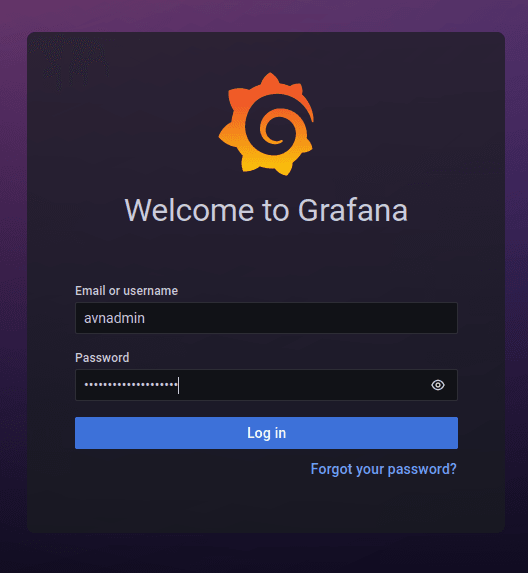

Welcome to Grafana

Congratulations! You are now connected to your Dashboards instance.

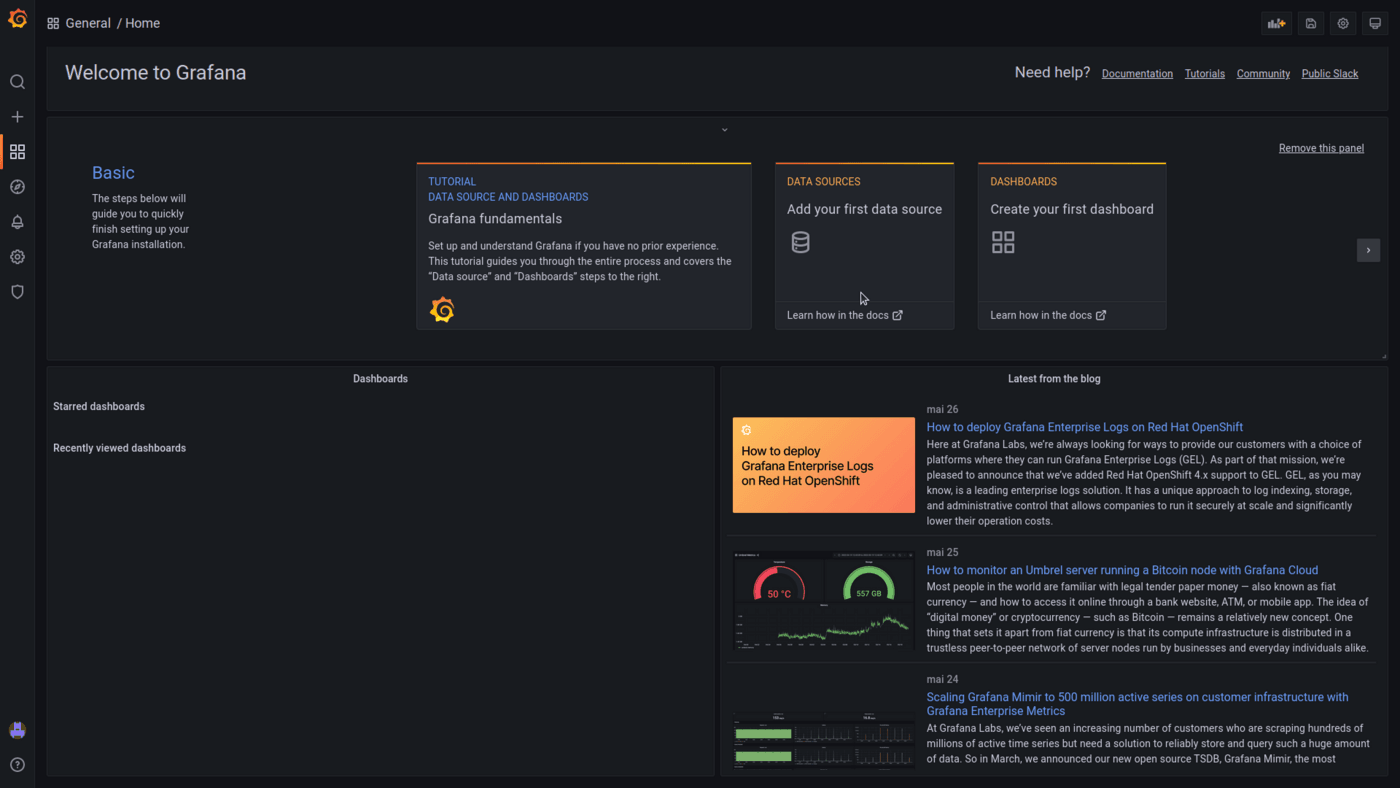

Grafana first connection

Learn more about Grafana® in the following tutorial: Grafana fundamentals
