OVHcloud vRack is a private network solution that enables our customers to route traffic between OVHcloud dedicated servers as well as other OVHcloud services. At the same time, it allows you to add Public Cloud instances and Managed Kubernetes clusters to your private network to create an infrastructure of physical and virtual resources.
In this tutorial, we are going to activate the vRack on a Public Cloud project. Then we will create a Managed Kubernetes cluster and a Public Cloud instance (PCI). Eventually, both of them will be added inside the vRack.
Concretely, we are going to install an OVHcloud Managed Kubernetes cluster and a Public Cloud instance, both of them in the same private network. We are going to deploy a WordPress on the Kubernetes cluster that will use the private network to connect to a MariaDB database installed on the Public Cloud instance.
In this tutorial we are going to give you an example of how to use the OVHcloud vRack to connect a Managed Kubernetes cluster with a Public Cloud instance inside the same private network.
Warning
The method described in this tutorial currently works if the Managed Kubernetes cluster and the external instance are in the same private network in the vRack. The process to connect them between different private networks will be described in a next tutorial.
Requirements
This tutorial presupposes that you already have a working OVHcloud Managed Kubernetes cluster, and some basic knowledge of how to operate it. If you want to know more on those topics, please look at the OVHcloud Managed Kubernetes Service Quickstart.
It also supposes that you already have followed the Using vRack guide to activate the vRack on your Public Cloud project and put your OVHcloud Managed Kubernetes cluster inside the vRack.
OVHcloud Console Access
Direct link:
Navigation path:Public Cloud > Select your project > Containers > Managed Kubernetes Service
Instructions
Setting up the vRack

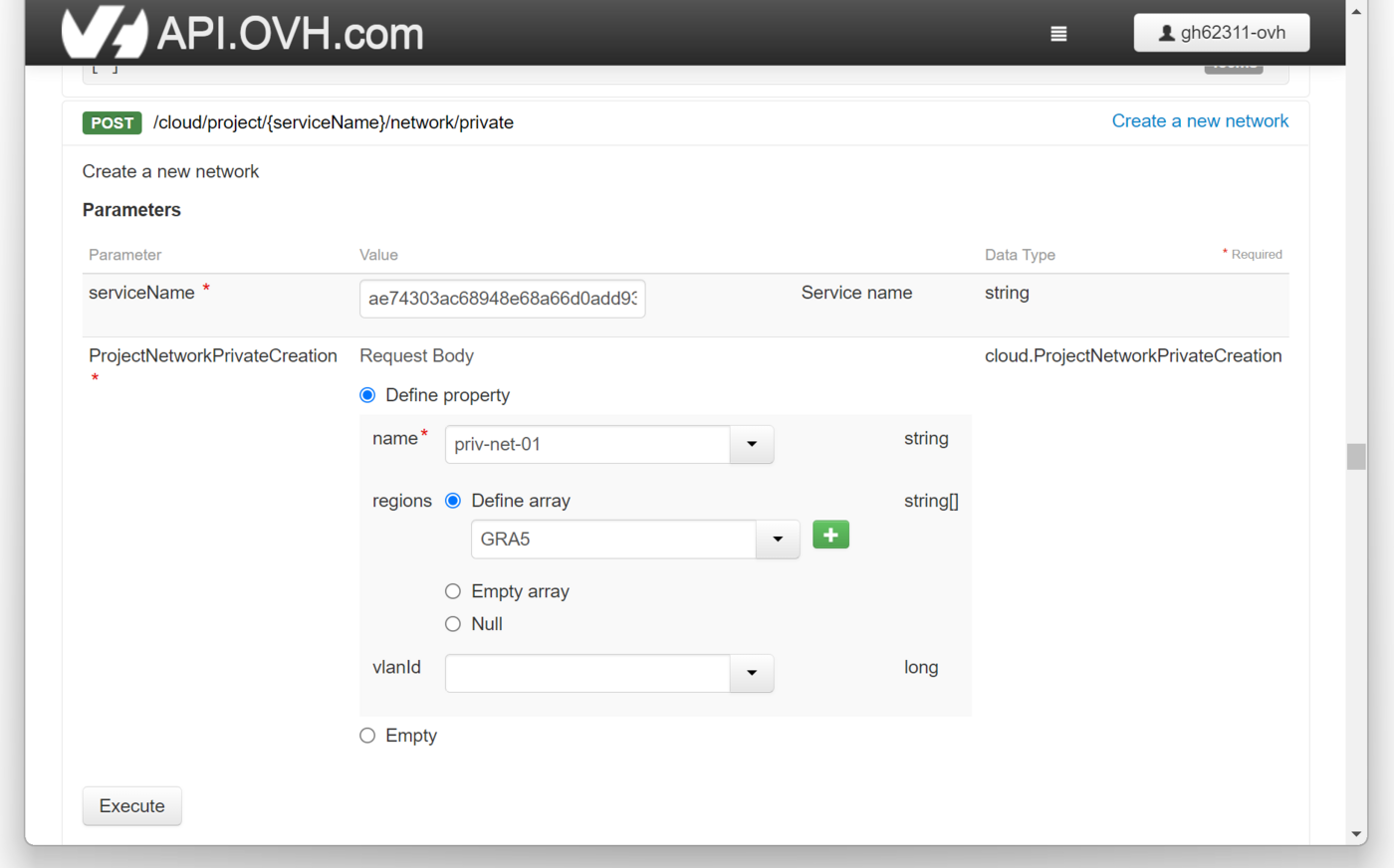

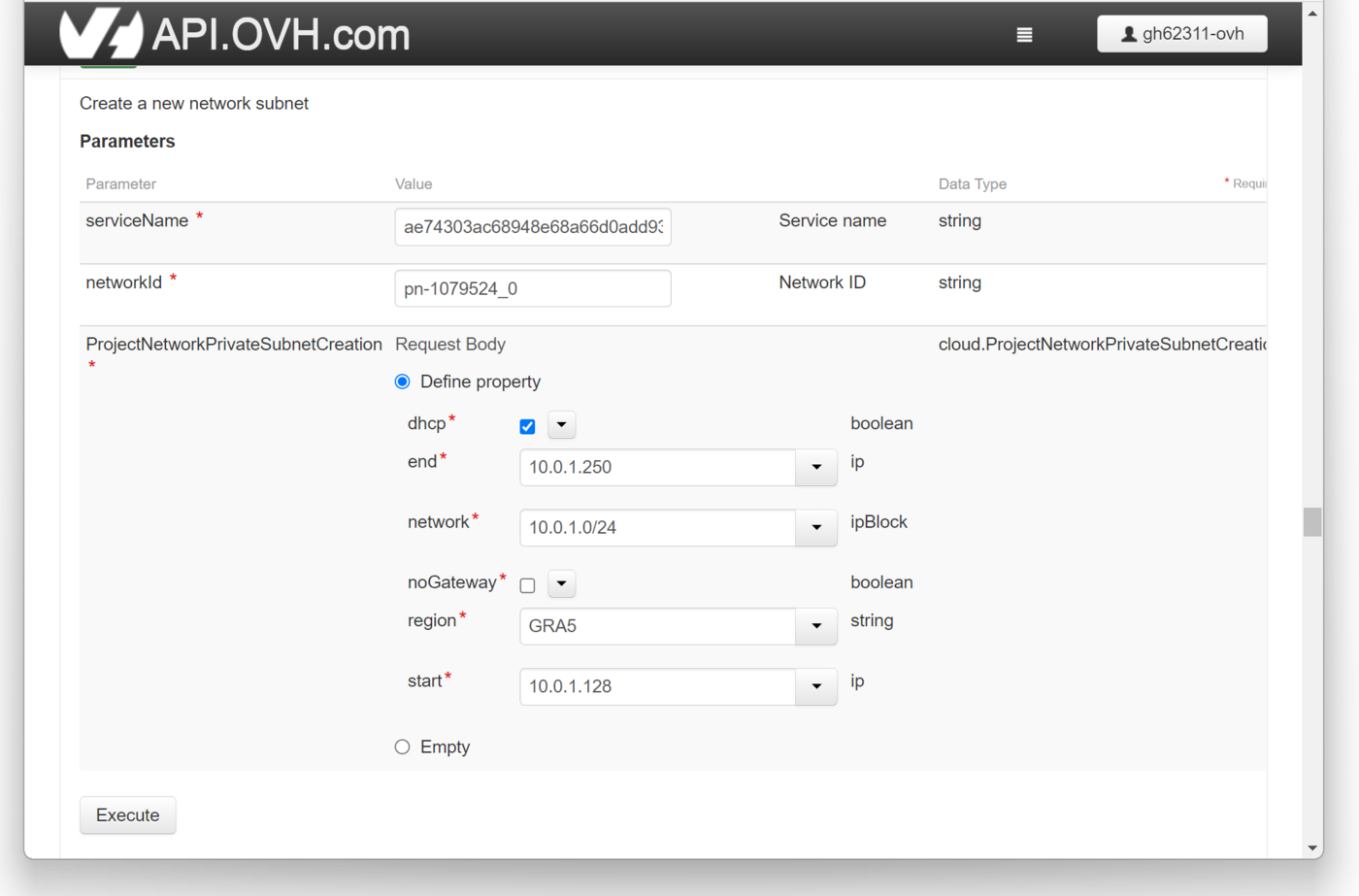

First of all, we will need to set up vRack Private Network for our Public Cloud. To do it, we follow the Configuring vRack for Public Cloud guide. Once you have created a vRack and added it into a Private Network, you can continue.
Warning
As explained in the Known limits guide, the following subnets are not compliant with the vRack feature and can generate some incoherent behaviours with our used overlay networks:
10.2.0.0/16 # Subnet used by pods10.3.0.0/16 # Subnet used by services172.17.0.0/16 # Subnet used by the Docker daemon
Setting up the Managed Kubernetes
Then we create a Kubernetes cluster, as explained in the Create a cluster guide. Integrating a cluster into a vRack Private Network must be done when creating the cluster, in the Network settings section, where we can choose an existing private network and subnet for the cluster.
Our new cluster will be created inside the vRack Private Network we have chosen.

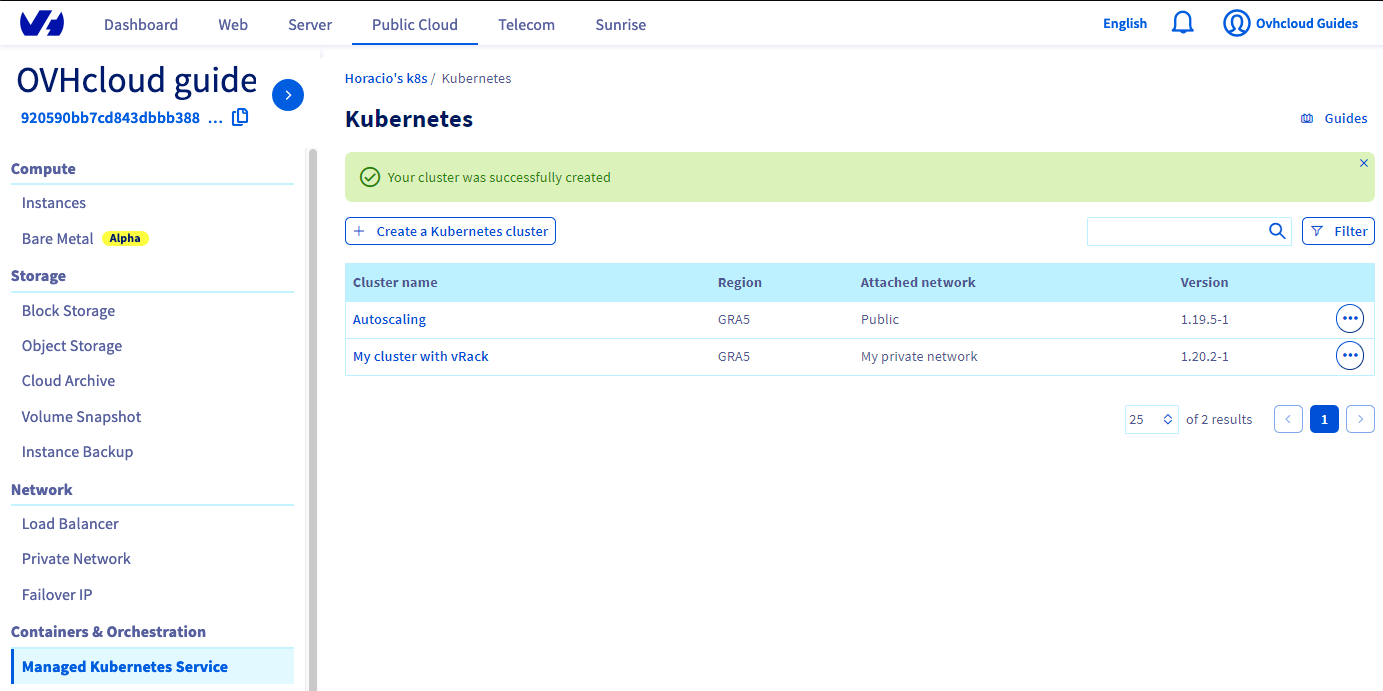

Once the cluster is created, click its name in the Managed Kubernetes Service list and open its Network tab: it shows the chosen private network.

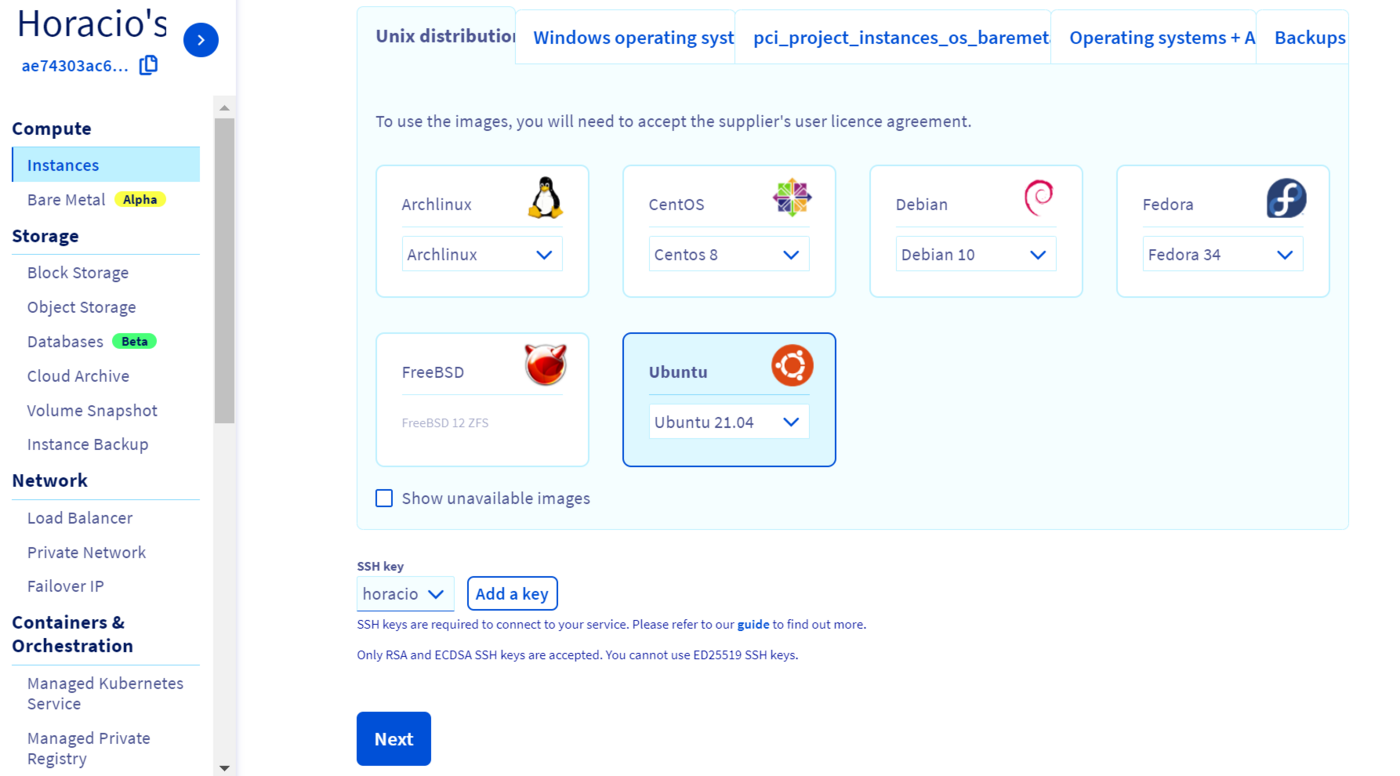

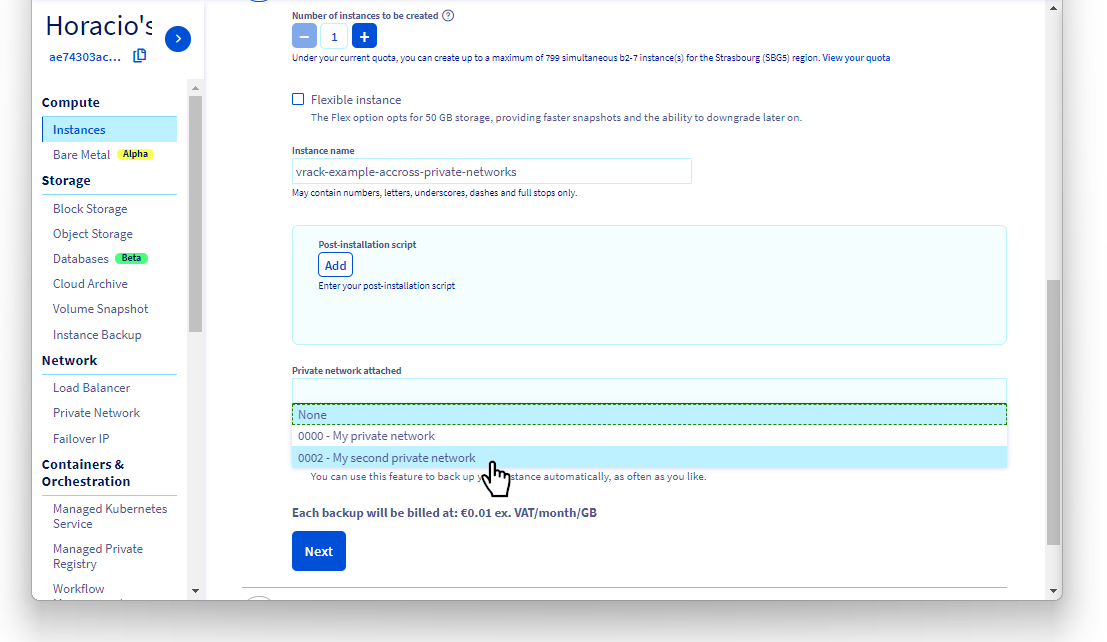

In the Network settings section of the instance creation page, we attach it to the private network we created before.

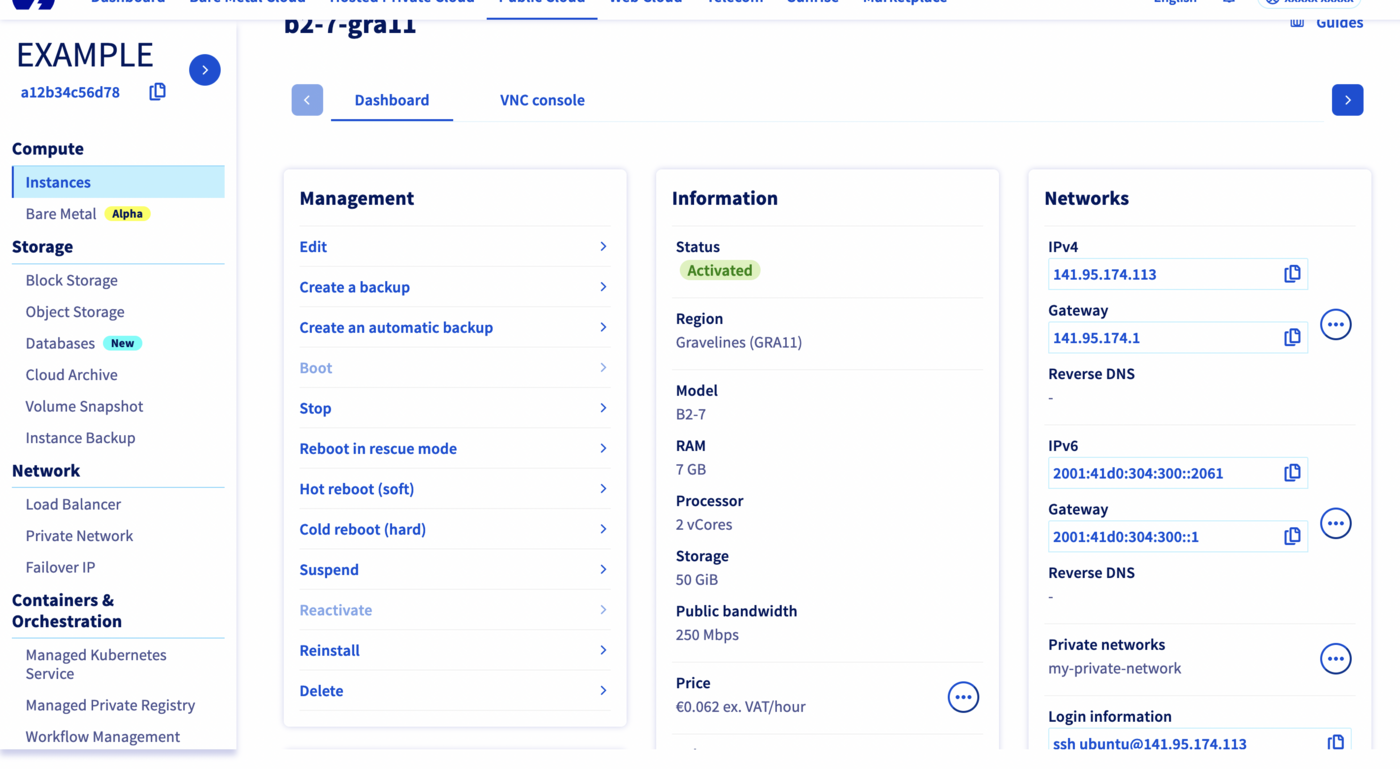

After instance creation, click on the name of the newly created instance: the connection details are displayed in the Connection details card of its Overview tab in the OVHcloud Console.
If we log in to the instance using SSH, we can see that it has two network interfaces, one attached to the public IP address we used to log in, the other attached to the private network:
$ ssh ubuntu@141.95.174.113The authenticity of host '141.95.174.113 (141.95.174.113)' can't be established.ECDSA key fingerprint is SHA256:+bfW0MhF8CisP+6LmXa1hdJ15owKWk+KKTgeIoFLnOY.Are you sure you want to continue connecting (yes/no/[fingerprint])? yesWarning: Permanently added '141.95.174.113' (ECDSA) to the list of known hosts.Welcome to Ubuntu 21.10 (GNU/Linux 5.13.0-19-generic x86_64) * Documentation: https://help.ubuntu.com * Management: https://landscape.canonical.com * Support: https://ubuntu.com/advantage System information as of Mon Dec 20 15:43:20 UTC 2021 System load: 0.0 Processes: 202 Usage of /: 3.3% of 48.29GB Users logged in: 0 Memory usage: 3% IPv4 address for ens3: 141.95.174.113 Swap usage: 0% IPv4 address for ens4: 10.0.64.518 updates can be applied immediately.To see these additional updates run: apt list --upgradableThe list of available updates is more than a week old.To check for new updates run: sudo apt update
Please take note of the private network IP address (in this case 10.0.64.51), as we will need to use it to configure WordPress.
Setting up MariaDB on the PCI
Installing MariaDB
The easiest way to install MariaDB in the PCI is to use the apt package manager:
sudo apt -y install mariadb-server
That will install MariaDB and all its dependencies:
ubuntu@b2-7-gra11:~$ sudo apt -y install mariadb-serverReading package lists... DoneBuilding dependency tree... DoneReading state information... DoneThe following additional packages will be installed: [...]Suggested packages: [...]The following NEW packages will be installed: [...]0 upgraded, 31 newly installed, 0 to remove and 4 not upgraded.Need to get 16.3 MB of archives.After this operation, 101 MB of additional disk space will be used.Get:1 http://nova.clouds.archive.ubuntu.com/ubuntu impish/main amd64 mysql-common all 5.8+1.0.5ubuntu2 [7496 B] [...]Get:19 http://nova.clouds.archive.ubuntu.com/ubuntu impish/main amd64 libcgi-fast-perl all 1:2.15-1 [10.5 kB] [...]Setting up mariadb-server (1:10.5.12-1build1) ...Setting up libcgi-fast-perl (1:2.15-1) ...Processing triggers for man-db (2.9.4-2) ...Processing triggers for libc-bin (2.34-0ubuntu3) ...Scanning processes...Scanning linux images...Running kernel seems to be up-to-date.No services need to be restarted.No containers need to be restarted.No user sessions are running outdated binaries.
Creating a user and a database
Now we can connect to the database using the mysql client:
sudo mysql
By default, the root account has no password when connected from the localhost, so we directly arrive to the MariaDB CLI.
Let's create a wordpress_db database and a wordpress_user user:
1. Create the database:
create database wordpress_db;
2. Create the user (with remote access) and grant privileges to this user on the new database:
grant all privileges on wordpress_db.* TO 'wordpress_user'@'%' identified by 'a_strong_password';
3. Apply the changes to be sure that the modifications on the MariaDB grant tables take effect immediately:
flush privileges;
The MariaDB instance is now ready.
ubuntu@b2-7-gra11:~$ sudo mysqlWelcome to the MariaDB monitor. Commands end with ; or \g.Your MariaDB connection id is 44Server version: 10.5.12-MariaDB-1build1 Ubuntu 21.10Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.MariaDB [(none)]> create database wordpress_db;Query OK, 1 row affected (0.001 sec)MariaDB [(none)]> grant all privileges on wordpress_db.* TO 'wordpress_user'@'%' identified by 'a_strong_password';Query OK, 0 rows affected (0.002 sec)MariaDB [(none)]> flush privileges;Query OK, 0 rows affected (0.001 sec)MariaDB [(none)]> exitBye
Making MariaDB listen on the private network interface
By default, MariaDB only listens on localhost. In order to accept requests coming from the private network, we need to make it also listen on that network interface.
The easiest way to do it is by changing the bind_address line setted by default to 127.0.0.1 and change it to your MariaDB IP in the /etc/mysql/mariadb.conf.d/50-server.cnf configuration file:
sudo vi /etc/mysql/mariadb.conf.d/50-server.cnf
before:
bind-address = 127.0.0.1
after:
bind-address = <MARIADB_ADDRESS>
Where <MARIADB_ADDRESS> is the private network IP address of the MariaDB instance (in this case 10.0.64.51).
Then restart MariaDB:
sudo service mariadb restart
And try to connect to MariaDB using that interface:
mysql -h`<MARIADB_ADDRESS>` -u wordpress_user -pa_strong_password
In this case:
ubuntu@b2-7-gra11:~$ mysql -h10.0.64.51 -u wordpress_user -pa_strong_passwordWelcome to the MariaDB monitor. Commands end with ; or \g.Your MariaDB connection id is 30Server version: 10.5.13-MariaDB-0ubuntu0.21.10.1 Ubuntu 21.10Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.MariaDB [(none)]> show databases;+--------------------+| Database |+--------------------+| information_schema || wordpress_db |+--------------------+2 rows in set (0.001 sec)MariaDB [(none)]>
Accessing the MariaDB instance from the Managed Kubernetes cluster
To verify that the vRack is working as intended, let's test if we can access the MariaDB instance from the Managed Kubernetes cluster via the vRack.
We are deploying a MySQL client in the Kubernetes cluster, that will connect to the MariaDB instance using the vRack. Don't forget to replace <MARIADB_ADDRESS> with the private network IP address of the MariaDB instance (in this case 10.0.64.51).
Go to your running Kubernetes cluster (you need to previously retrieve the kubeconfig file and set-up your KUBECONFIG environnement variable):
$ echo $KUBECONFIG/Users/<YOUR_USER>/.kube/my-cluster-vrack.yml$ kubectx kubernetes-admin@my-cluster-vrackSwitched to context "kubernetes-admin@my-cluster-vrack".$ kubectl get nodesNAME STATUS ROLES AGE VERSIONnodepool-59d0ba5f-2fce-4a47-89-node-05134b Ready <none> 18h v1.34.0nodepool-59d0ba5f-2fce-4a47-89-node-46cbc9 Ready <none> 17h v1.34.0nodepool-59d0ba5f-2fce-4a47-89-node-ea4d0a Ready <none> 18h v1.34.0
And then execute the following comand:
kubectl run -it --rm --image=mysql:5.6 --restart=Never mysql-client -- mysql -h <MARIADB_ADDRESS> -uwordpress_user -pa_strong_password
$ kubectl run -it --rm --image=mysql:5.6 --restart=Never mysql-client -- mysql -h 10.0.64.51 -uwordpress_user -pa_strong_passwordIf you don't see a command prompt, try pressing enter.mysql> show databases;+--------------------+| Database |+--------------------+| information_schema || wordpress_db |+--------------------+2 rows in set (0.00 sec)mysql> exitByepod "mysql-client" deleted
Setting up WordPress
Now we have set up the database, we can deploy WordPress on the Kubernetes cluster. We are following a similar process as in our Installing WordPress tutorial, but adapting it to use an external database.
Pre-requisites
We (the OVHcloud Managed Kubernetes Service team) are working on a patch to be released in early 2022. In the meantime, please remove the default storage class and install the new one.
Delete the concerned StorageClass that you are using by default
It will apply the correct StorageClass YAML manifest:
$ kubectl apply -f https://raw.githubusercontent.com/ovh/docs/develop/pages/public_cloud/containers_orchestration/managed_kubernetes/fix-persistent-volumes-permissions/files/fixed-cinder-high-speed-storage-class.yamlstorageclass.storage.k8s.io/csi-cinder-high-speed created
Using the WordPress Helm chart
For this tutorial we are using the WordPress Helm chart found on Bitnami repository. The chart is fully configurable, but we will only need to tweak the external database parameters:
Don't forget to replace <MARIADB_ADDRESS> with the private network IP address of the MariaDB instance (in this case 10.0.64.51).
$ helm install my-first-k8s-wordpress bitnami/wordpress --set mariadb.enabled=false,externalDatabase.host=10.0.64.51,externalDatabase.user=wordpress_user,externalDatabase.password=a_strong_password,externalDatabase.database=wordpress_db,externalDatabase.port=3306NAME: my-first-k8s-wordpressLAST DEPLOYED: Tue Dec 21 10:30:26 2021NAMESPACE: defaultSTATUS: deployedREVISION: 1TEST SUITE: NoneNOTES:CHART NAME: wordpressCHART VERSION: 12.2.7APP VERSION: 5.8.2** Please be patient while the chart is being deployed **Your WordPress site can be accessed through the following DNS name from within your cluster: my-first-k8s-wordpress.default.svc.cluster.local (port 80)To access your WordPress site from outside the cluster follow the steps below:1. Get the WordPress URL by running these commands: NOTE: It may take a few minutes for the LoadBalancer IP to be available. Watch the status with: 'kubectl get svc --namespace default -w my-first-k8s-wordpress' export SERVICE_IP=$(kubectl get svc --namespace default my-first-k8s-wordpress --template "{{ range (index .status.loadBalancer.ingress 0) }}{{.}}{{ end }}") echo "WordPress URL: http://$SERVICE_IP/" echo "WordPress Admin URL: http://$SERVICE_IP/admin"2. Open a browser and access WordPress using the obtained URL.3. Login with the following credentials below to see your blog: echo Username: user echo Password: $(kubectl get secret --namespace default my-first-k8s-wordpress -o jsonpath="{.data.wordpress-password}" | base64 --decode)
Wait until you obtain an external IP:
kubectl get svc --namespace default my-first-k8s-wordpress -w
Then we can follow the instructions to get the Admin URL:
export SERVICE_IP=$(kubectl get svc --namespace default my-first-k8s-wordpress --template "{{ range (index .status.loadBalancer.ingress 0) }}{{.}}{{ end }}")$ echo "WordPress URL: http://$SERVICE_IP/"WordPress URL: http://152.228.251.29/$ echo "WordPress Admin URL: http://$SERVICE_IP/admin"WordPress Admin URL: http://152.228.251.29/admin
And putting the URL in the browser will take us to the new blog, accessing the MariaDB database from the PCI instance via the vRack.
