Find out how to create a Kubernetes cluster managed by OVHcloud using the OVHcloud Console, API, CLI, Terraform, Pulumi or CDK for Terraform

Objective

The OVHcloud Managed Kubernetes service lets you deploy production-ready clusters without the operational overhead of setting them up or maintaining them. Create a cluster through the OVHcloud Console, API, or CLI, or automate the process using Infrastructure as Code tools like Terraform, Pulumi or CDK for Terraform.

Requirements

A Public Cloud project in your OVHcloud account

Tip

Take advantage of reduced prices by committing to a period of 1 to 36 months on your Public Cloud resources. More information on our Savings Plans page.

OVHcloud Console Access

Direct link:
Navigation path: Public Cloud > Select your project > Containers > Managed Kubernetes Service

Info

The OVHcloud API, CLI, Terraform, CDK for Terraform, and Pulumi all require OVHcloud API credentials (application_key, application_secret, consumer_key). Follow First steps with the OVHcloud APIs to generate them.

Instructions

OVHcloud Console

OVHcloud API

OVHcloud CLI

Terraform

CDK for Terraform

Pulumi

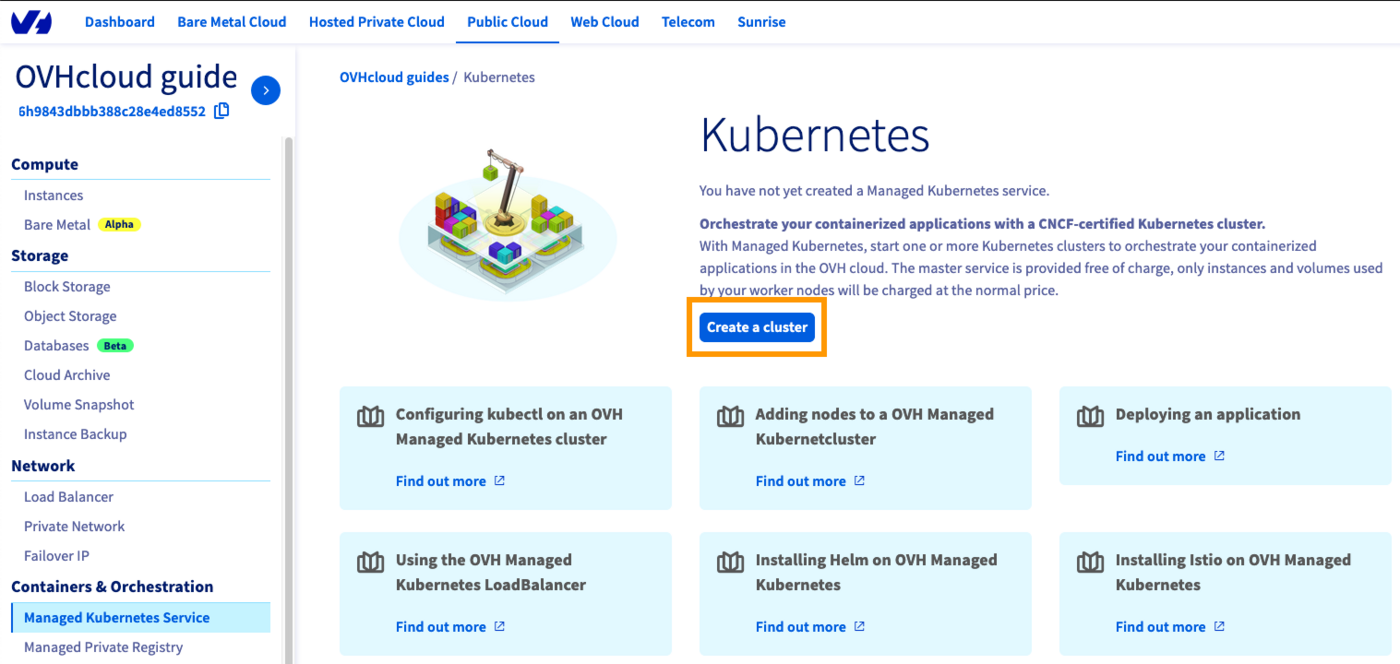

In your Public Cloud project, click on Managed Kubernetes Service under Containers in the left-hand menu, then click Create a cluster. All the settings are on the Create a Kubernetes cluster page:

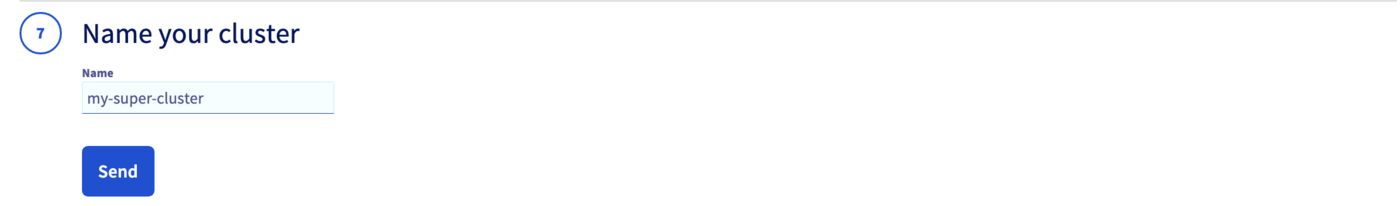

Cluster name: enter a name for your cluster.

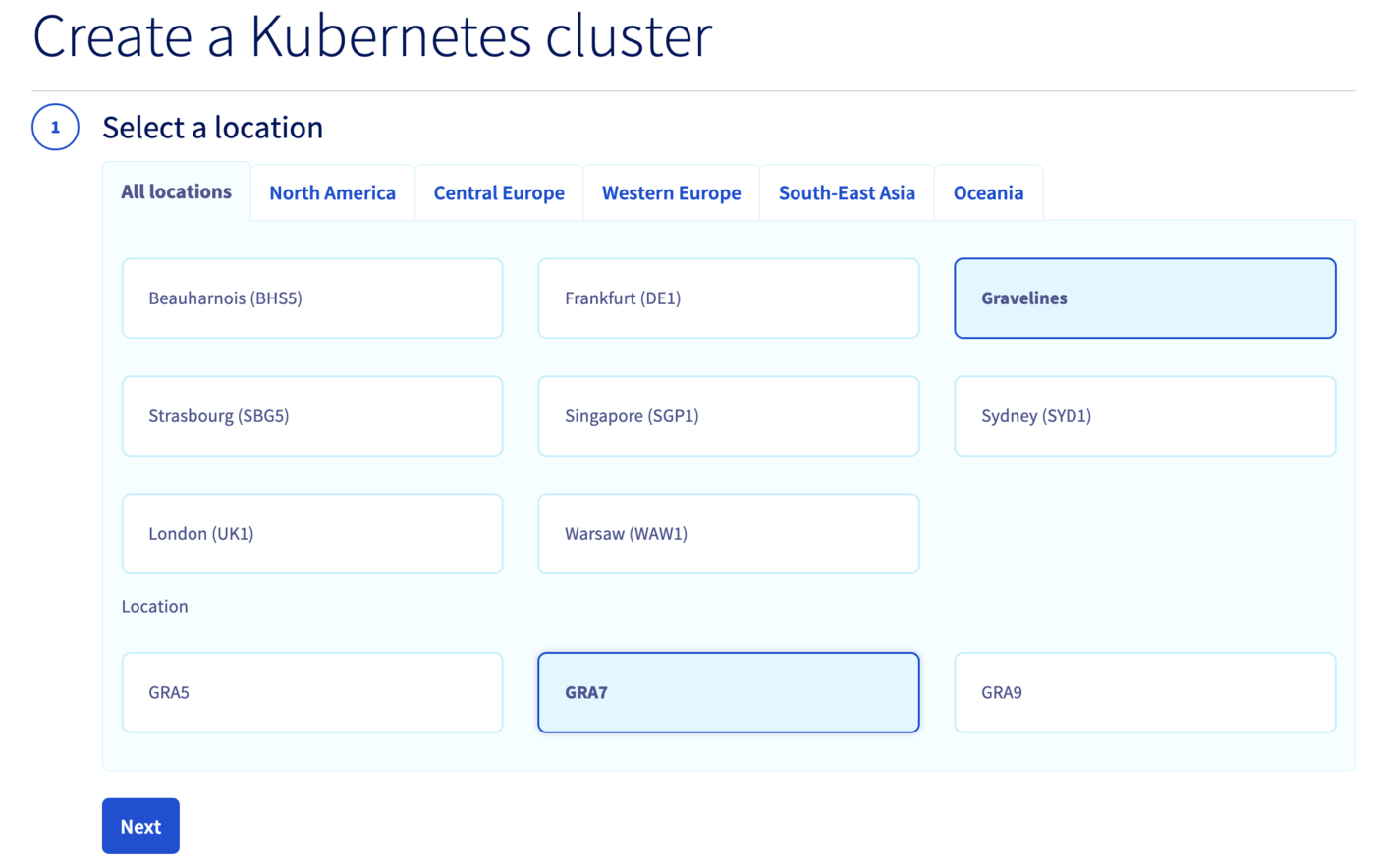

Region: select a deployment mode (1-AZ or 3-AZ region) and a location for your new cluster.
Plan: choose the Free or Standard plan (Compare plans gives the details).

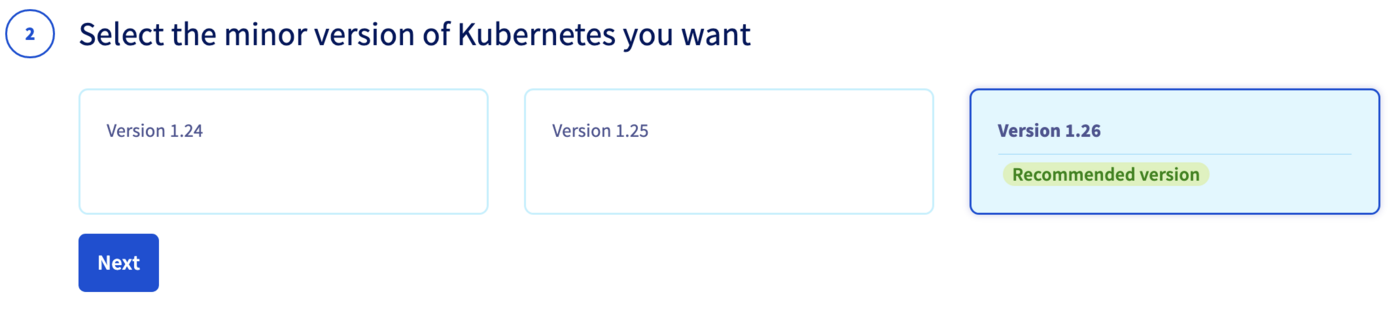

Version and security policy: choose the minor version of Kubernetes and the automatic update policy.

Info

We recommend always using the latest stable version. Please read our End of life / end of support page to understand our version policy.

Network settings: optionally, integrate your cluster into a private network using OVHcloud vRack by selecting an existing private network and subnet. For more information, read our guide Using the vRack.

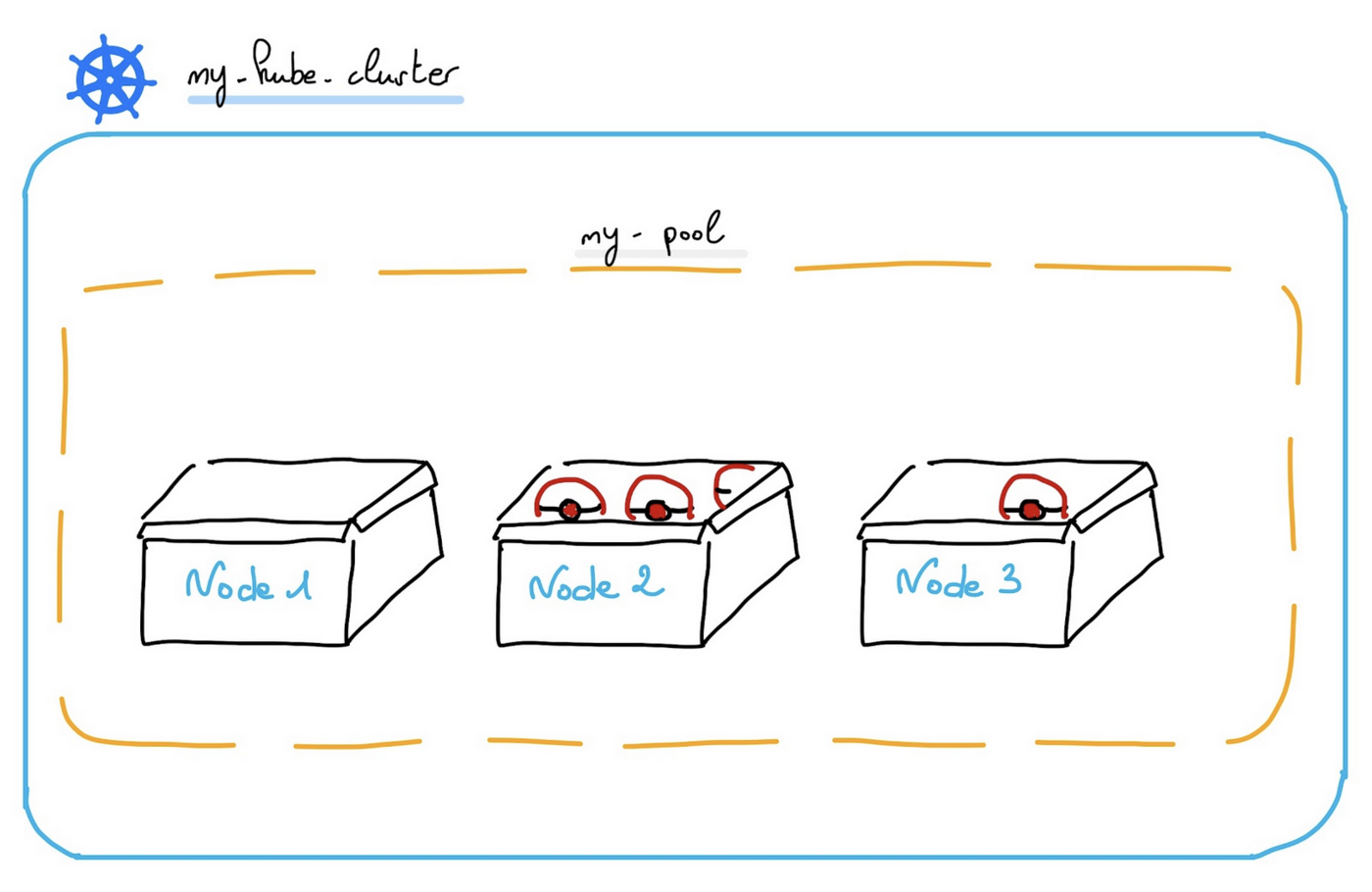

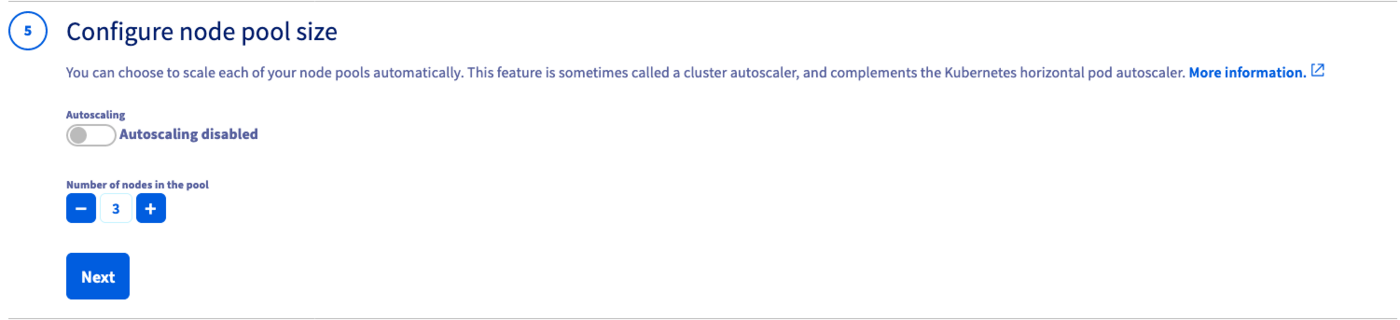

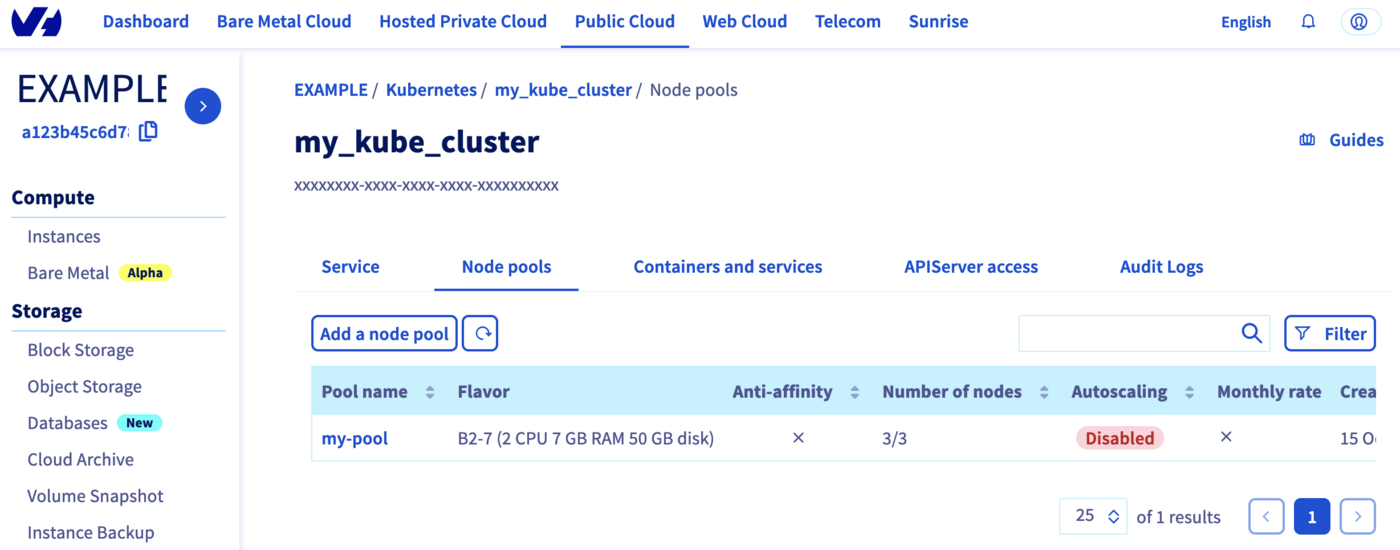

Node pools: click Add node pool to configure a node pool. A node pool is a group of nodes sharing the same configuration. You can add a node pool now or skip this step to add one later. Read the Managing node pools guide for more information.

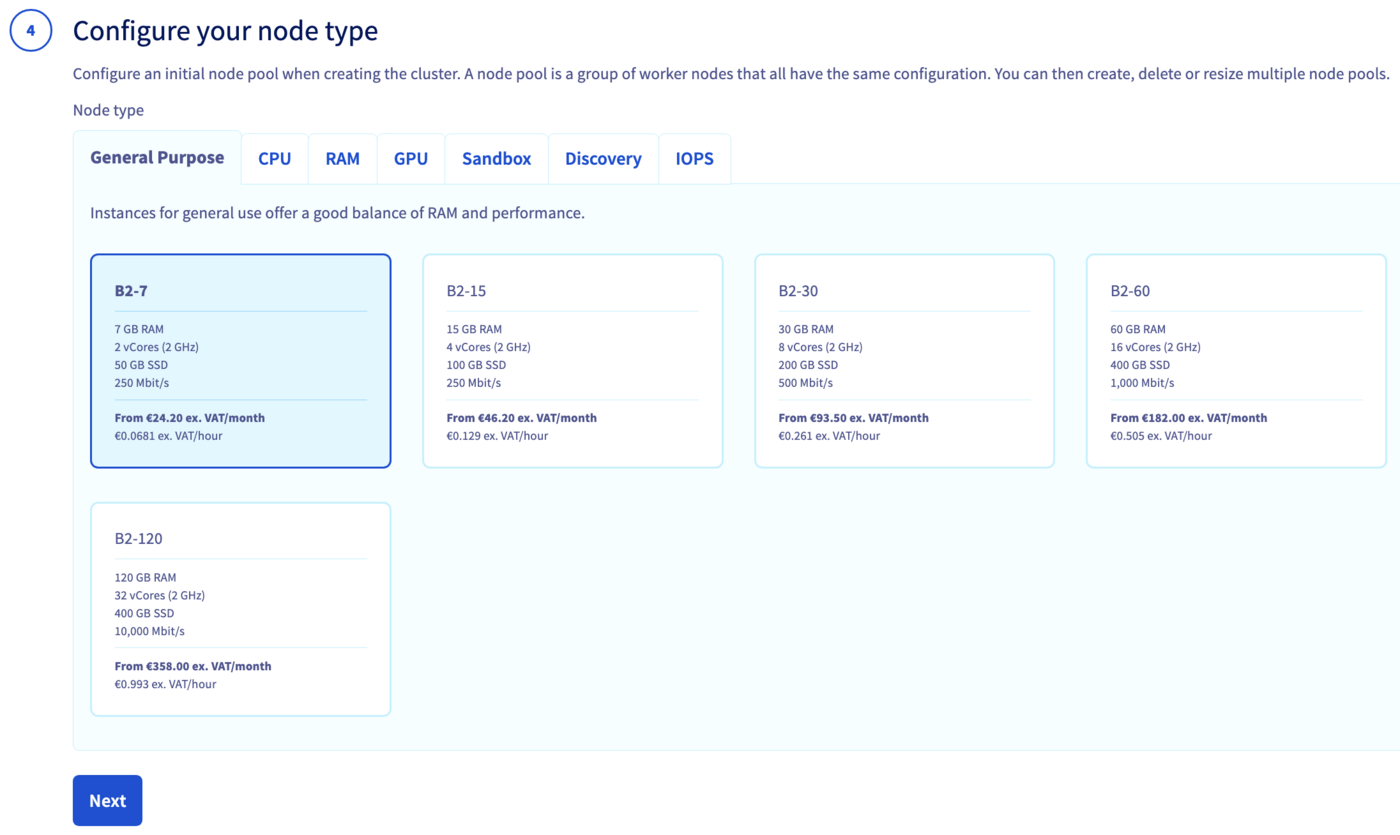

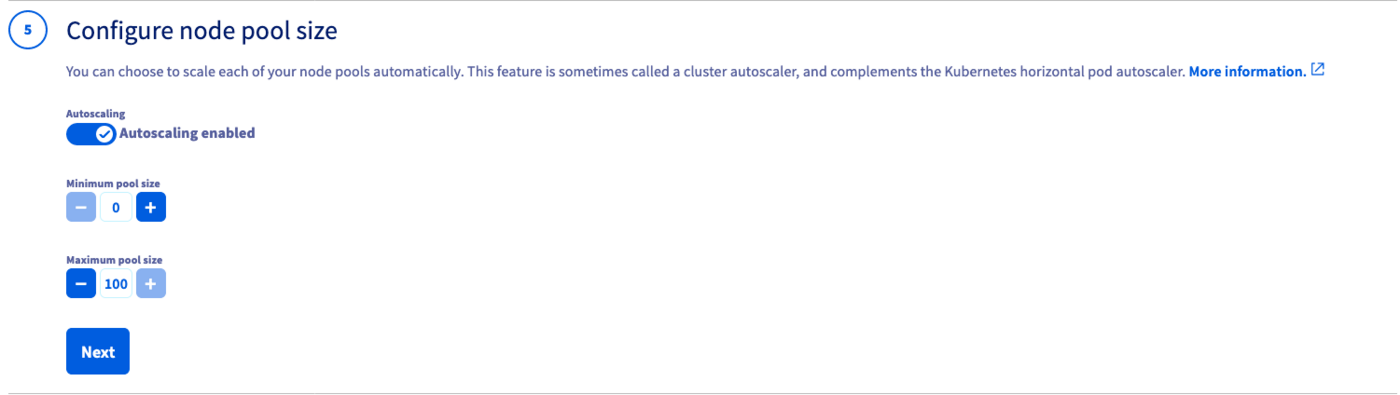

For each node pool, enter a Node pool name, select an instance model, and set the Number of nodes. Optionally, enable Autoscaling and define the minimum and maximum pool size. Choose the billing mode (Monthly or Hourly) and optionally enable Anti-affinity.

Info

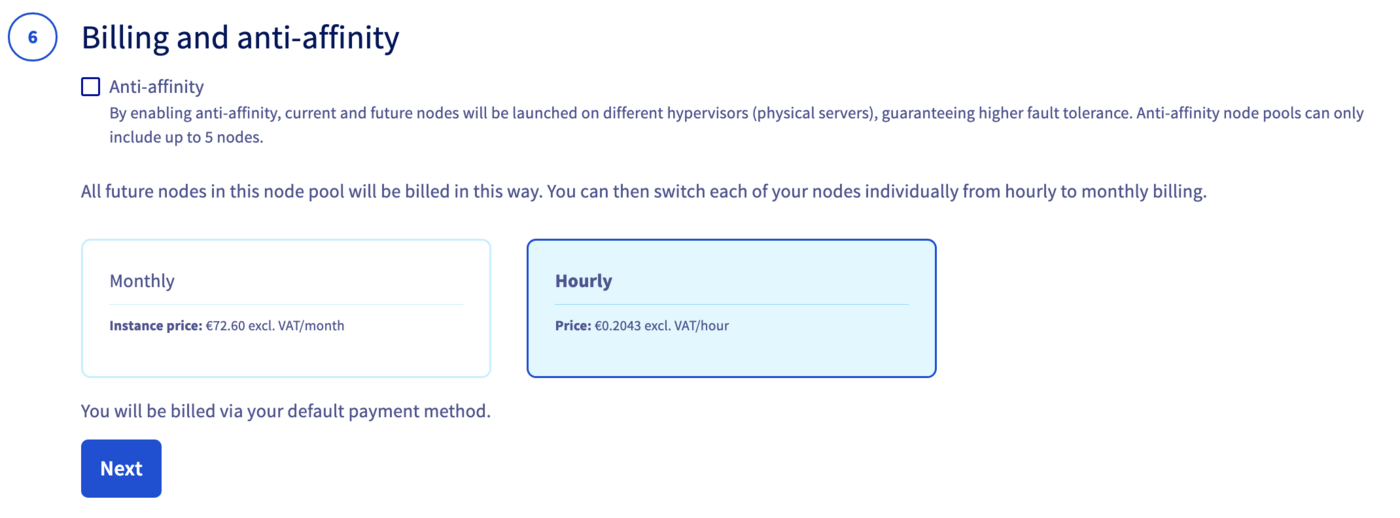

Anti-affinity distributes nodes across different hypervisors for higher fault tolerance. Anti-affinity node pools are limited to 5 nodes. Monthly billing cannot be switched to hourly afterwards.

Review the summary and click Create Cluster.

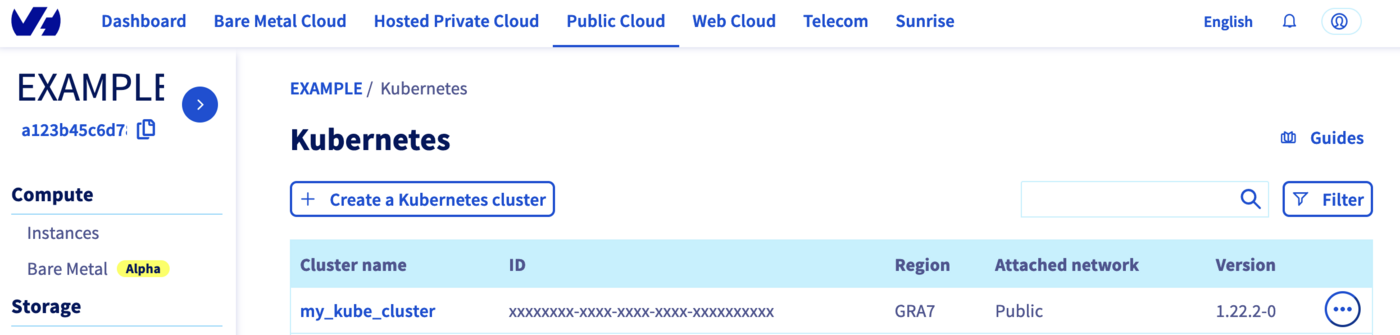

The cluster is available within a few minutes.

Warning

After a cluster is created, the region and private network ID cannot be changed.

Create the cluster:

Call the following endpoint with this body:

POST/cloud/project/{serviceName}/kube

{
  "name": "my-cluster",
  "region": "GRA7",
  "version": "1.34"
}

Info

We recommend always using the latest stable version. Please read our End of life / end of support page to understand our version policy.

Tip

On the Standard plan, you can create a cluster that uses your own router or firewall as default gateway, with the public exposure of its nodes and workloads disabled, by adding plan, privateNetworkId, nodesSubnetId, disablePublicNetworking and privateNetworkConfiguration.useUserGateway to this body. See Using a custom gateway on an OVHcloud Managed Kubernetes cluster. To only disable the public exposure of the nodes and workloads while keeping the OVHcloud managed gateway of the nodes subnet, add plan, privateNetworkId, nodesSubnetId and disablePublicNetworking, without privateNetworkConfiguration.useUserGateway: see Understanding OVHcloud Managed Kubernetes architecture.

Note the id in the response — you will need it to create the node pool.

Create a node pool:

Call the following endpoint with this body:

POST/cloud/project/{serviceName}/kube/{kubeId}/nodepool

{
  "name": "my-pool",
  "flavorName": "b2-7",
  "desiredNodes": 3,
  "minNodes": 3,
  "maxNodes": 3
}

Warning

Node pool names only accept lowercase characters, digits and -. Underscores and dots are not supported.

Warning

After a cluster is created, the region, the private network ID, and the disablePublicNetworking and useUserGateway attributes cannot be changed.

Info

Install the OVHcloud CLI and configure your credentials before proceeding.

Create the cluster:

ovhcloud cloud managed-kubernetes create \
  --cloud-project <serviceName> \
  --name my-cluster \
  --region GRA7 \
  --version 1.34

Info

We recommend always using the latest stable version. Please read our End of life / end of support page to understand our version policy.

Note the id in the output — you will need it to create the node pool.

Create a node pool:

ovhcloud cloud managed-kubernetes nodepool create <kubeId> \
  --cloud-project <serviceName> \
  --name my-pool \
  --flavor-name b2-7 \
  --desired-nodes 3 \
  --min-nodes 3 \
  --max-nodes 3

Warning

Node pool names only accept lowercase characters, digits and -. Underscores and dots are not supported.

Warning

After a cluster is created, the region and private network ID cannot be changed.

Info

Install Terraform CLI (version 0.12.x minimum) before proceeding.

OVHcloud provides a Terraform provider available in the official Terraform registry.

Your Public Cloud project ID is the service_name. To copy it, click the project selector at the top of the left-hand menu of your Public Cloud project, then click the copy icon on the row of your project (it appears when you hover the row).

provider.tf:

terraform {
  required_providers {
    ovh = {
      source = "ovh/ovh"
    }
  }
}

provider "ovh" {
  endpoint           = "ovh-eu"
  application_key    = "<your_access_key>"
  application_secret = "<your_application_secret>"
  consumer_key       = "<your_consumer_key>"
}

Alternatively, use environment variables to avoid storing secrets in source code: OVH_ENDPOINT, OVH_APPLICATION_KEY, OVH_APPLICATION_SECRET, OVH_CONSUMER_KEY.

variables.tf:

variable service_name {
  type    = string
  default = "<your_service_name>"
}

ovh_kube_cluster.tf:

resource "ovh_cloud_project_kube" "my_kube_cluster" {
   service_name = "${var.service_name}"
   name         = "my_kube_cluster"
   region       = "GRA7"
   version      = "1.34"
}

resource "ovh_cloud_project_kube_nodepool" "node_pool" {
   service_name  = "${var.service_name}"
   kube_id       = ovh_cloud_project_kube.my_kube_cluster.id
   name          = "my-pool"
   flavor_name   = "b2-7"
   desired_nodes = 3
   max_nodes     = 3
   min_nodes     = 3
}

output.tf:

output "kubeconfig" {
  value     = ovh_cloud_project_kube.my_kube_cluster.kubeconfig
  sensitive = true
}

Warning

Node pool names only accept lowercase characters, digits and -. Underscores and dots cause a gzip: invalid header error.

Deploy:

terraform init && terraform apply

Info

You need kubectl, CDK for Terraform CLI and Go installed.

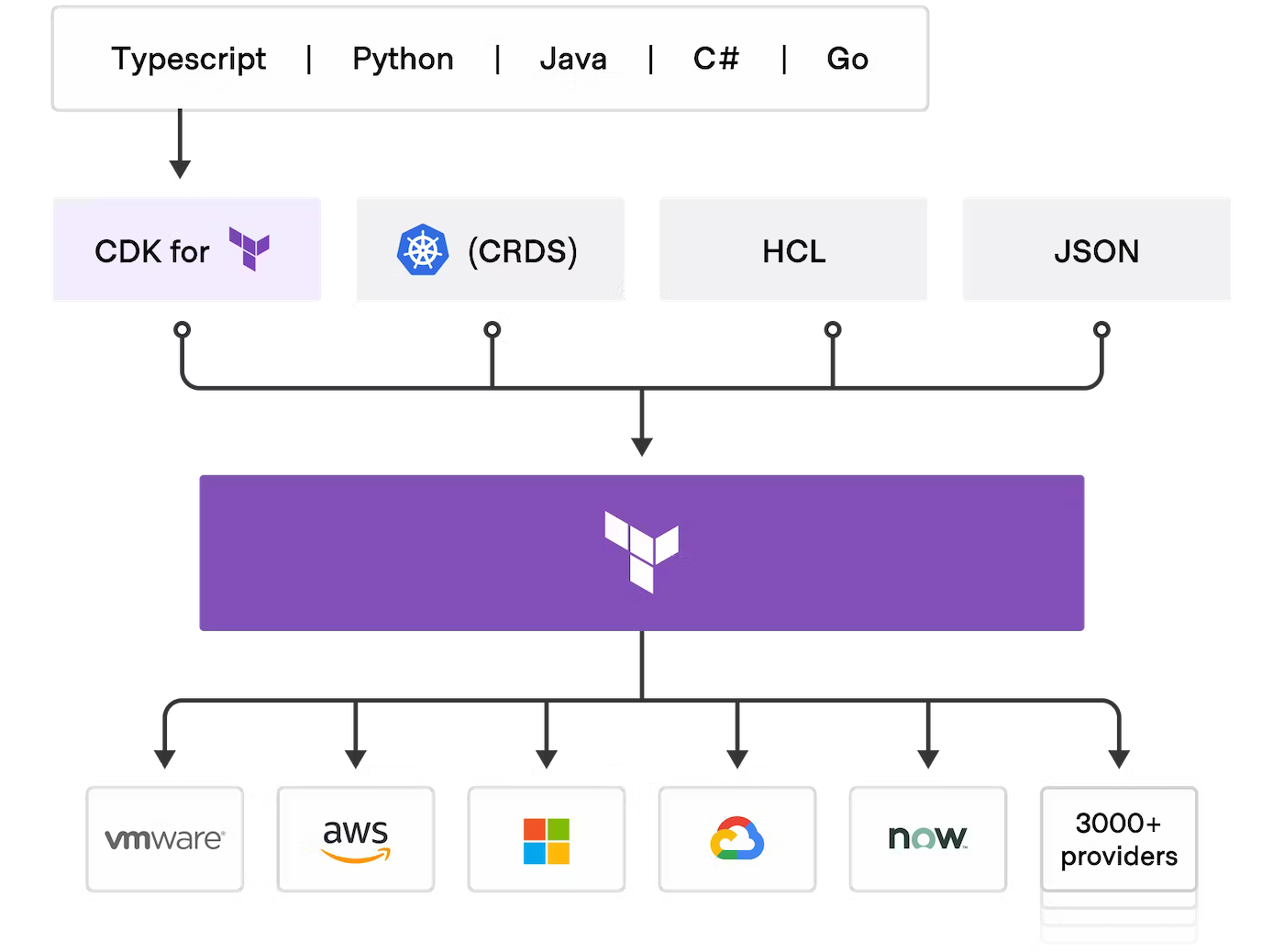

CDKTF translates Go code into Terraform HCL and uses the OVHcloud Terraform provider. Set the required credentials as environment variables:

export OVH_ENDPOINT="ovh-eu"
export OVH_APPLICATION_KEY="xxx"
export OVH_APPLICATION_SECRET="xxx"
export OVH_CONSUMER_KEY="xxx"
export OVH_CLOUD_PROJECT_SERVICE="xxx"

Initialize the project:

mkdir ovhcloud-kube && cd ovhcloud-kube
cdktf init --template=go --providers="ovh/ovh@~>0.37.0" "hashicorp/local" --providers-force-local --local --project-name=ovhcloud-kube

Edit main.go:

package main

import (
    "os"
    "path"

    "cdk.tf/go/stack/generated/hashicorp/local/file"
    local "cdk.tf/go/stack/generated/hashicorp/local/provider"
    "cdk.tf/go/stack/generated/ovh/ovh/cloudprojectkube"
    "cdk.tf/go/stack/generated/ovh/ovh/cloudprojectkubenodepool"
    ovh "cdk.tf/go/stack/generated/ovh/ovh/provider"
    "github.com/aws/constructs-go/constructs/v10"
    "github.com/aws/jsii-runtime-go"
    "github.com/hashicorp/terraform-cdk-go/cdktf"
)

func NewMyStack(scope constructs.Construct, id string) cdktf.TerraformStack {
    stack := cdktf.NewTerraformStack(scope, &id)

    ovh.NewOvhProvider(stack, jsii.String("ovh"), &ovh.OvhProviderConfig{
        Endpoint: jsii.String("ovh-eu"),
    })
    local.NewLocalProvider(stack, jsii.String("local"), &local.LocalProviderConfig{})

    serviceName := os.Getenv("OVH_CLOUD_PROJECT_SERVICE")

    kube := cloudprojectkube.NewCloudProjectKube(stack, jsii.String("my_desired_cluster"), &cloudprojectkube.CloudProjectKubeConfig{
        ServiceName: jsii.String(serviceName),
        Name:        jsii.String("my_desired_cluster"),
        Region:      jsii.String("GRA5"),
    })

    cdktf.NewTerraformOutput(stack, jsii.String("cluster_version"), &cdktf.TerraformOutputConfig{
        Value: kube.Version(),
    })

    pwd, _ := os.Getwd()
    file.NewFile(stack, jsii.String("kubeconfig"), &file.FileConfig{
        Filename:       jsii.String(path.Join(pwd, "kubeconfig.yaml")),
        Content:        kube.Kubeconfig(),
        FilePermission: jsii.String("0644"),
    })

    nodePool := cloudprojectkubenodepool.NewCloudProjectKubeNodepool(stack, jsii.String("my-pool"), &cloudprojectkubenodepool.CloudProjectKubeNodepoolConfig{
        ServiceName:  kube.ServiceName(),
        KubeId:       kube.Id(),
        Name:         jsii.String("my-pool"),
        DesiredNodes: jsii.Number(1),
        MaxNodes:     jsii.Number(3),
        MinNodes:     jsii.Number(1),
        FlavorName:   jsii.String("b2-7"),
    })

    cdktf.NewTerraformOutput(stack, jsii.String("nodePoolID"), &cdktf.TerraformOutputConfig{
        Value: nodePool.Id(),
    })

    return stack
}

func main() {
    app := cdktf.NewApp(nil)
    NewMyStack(app, "ovhcloud")
    app.Synth()
}

Deploy:

cdktf deploy

Info

You need Pulumi CLI, a Pulumi account with an access token, and kubectl installed.

The OVH Pulumi provider supports Go, Python, Node.js/TypeScript, C# and Java. See examples.

Set credentials as environment variables:

export OVH_ENDPOINT="ovh-eu"
export OVH_APPLICATION_KEY="xxx"
export OVH_APPLICATION_SECRET="xxx"
export OVH_CONSUMER_KEY="xxx"

Create and initialize the project:

mkdir pulumi_ovh_kube && cd pulumi_ovh_kube
pulumi new go -y
go get github.com/ovh/pulumi-ovh/sdk/go/...

Edit Pulumi.yaml to add the service name:

config:
 serviceName: <your-service-name>

Edit main.go:

package main

import (
    "github.com/pulumi/pulumi/sdk/v3/go/pulumi"
    "github.com/pulumi/pulumi/sdk/v3/go/pulumi/config"
    "github.com/ovh/pulumi-ovh/sdk/go/ovh/cloudproject"
)

func main() {
    pulumi.Run(func(ctx *pulumi.Context) error {
        serviceName := config.Require(ctx, "serviceName")

        myKube, err := cloudproject.NewKube(ctx, "my_desired_cluster", &cloudproject.KubeArgs{
            ServiceName: pulumi.String(serviceName),
            Name:        pulumi.String("my_desired_cluster"),
            Region:      pulumi.String("GRA5"),
        })
        if err != nil {
            return err
        }

        ctx.Export("kubeconfig", pulumi.ToSecret(myKube.Kubeconfig))

        nodePool, err := cloudproject.NewKubeNodePool(ctx, "my-desired-pool", &cloudproject.KubeNodePoolArgs{
            ServiceName:  pulumi.String(serviceName),
            KubeId:       myKube.ID(),
            Name:         pulumi.String("my-desired-pool"),
            DesiredNodes: pulumi.Int(1),
            MaxNodes:     pulumi.Int(3),
            MinNodes:     pulumi.Int(1),
            FlavorName:   pulumi.String("b2-7"),
        })
        if err != nil {
            return err
        }

        ctx.Export("nodePoolID", nodePool.ID())
        return nil
    })
}

Run go mod tidy then deploy:

pulumi up

Connect to the cluster

OVHcloud Console

OVHcloud API

OVHcloud CLI

Terraform

CDK for Terraform

Pulumi

On your cluster page, in the Connection information card of the Overview tab, click Download next to kubeconfig to download the kubectl configuration file to connect to your cluster.

Call the following endpoint to retrieve the kubeconfig content and save it to a file:

POST/cloud/project/{serviceName}/kube/{kubeId}/kubeconfig

kubectl --kubeconfig=kubeconfig.yaml get nodes

Known issues

"not enough xxx quotas"

By default, Public Cloud resource quotas (RAM, CPU, disk space, number of instances, etc.) are limited for security reasons. If you run out of resources when creating a node pool, follow Increasing Public Cloud quotas to increase them.

Terraform

Pulumi

"gzip: invalid header"

This error occurs when a node pool name or flavor name contains _ or .. Only lowercase characters, digits and - are accepted:

name        = "my-pool"
flavor_name = "b2-7"

"Provider is missing a required configuration key"

You forgot to export the required OVHcloud environment variables:

export OVH_ENDPOINT="ovh-eu"
export OVH_APPLICATION_KEY="xxx"
export OVH_APPLICATION_SECRET="xxx"
export OVH_CONSUMER_KEY="xxx"

"Node pool name xxx is invalid"

Only lowercase characters, digits and - are accepted in node pool names. Rename your node pool using a valid value:

Name: pulumi.String("my-desired-pool"),

Destroy (cleanup)

OVHcloud Console

OVHcloud API

OVHcloud CLI

Terraform

CDK for Terraform

Pulumi

Click the name of your cluster in the Managed Kubernetes Service section. In the Manage cluster card of the Overview tab, click Delete, type TERMINATE in the confirmation field, then click Delete.

Go further

To have an overview of OVHcloud Managed Kubernetes service, you can go to the OVHcloud Managed Kubernetes page.

To deploy your first application on your Kubernetes cluster, we invite you to follow our guide to configuring default settings for kubectl and deploying a Hello World application.

For training or technical assistance implementing our solutions, contact your sales representative or visit our Professional Services page to request a quote and have your project analysed by our experts.
