Creating a cluster
Objective
The OVHcloud Managed Kubernetes service lets you deploy production-ready clusters without the operational overhead of setting them up or maintaining them. You can create a cluster directly through the OVHcloud Control Panel, or automate the process using Infrastructure as Code (IaC) tools.
OVHcloud offers a native Terraform provider, and for developers who prefer working in their own programming languages, tools like Pulumi provide even more flexibility. This guide walks you through the different ways to create a Kubernetes cluster, so you can choose the one that best fits your workflow.
OVHcloud Control Panel
Terraform
Terraform is an open-source infrastructure as code (IaC) tool created by Hashicorp in 2014, written in Go. It aims to build, change and version control your infrastructure. You can define and provision your infrastructure by writing the definition of your resources in Hashicorp Configuration Language (HCL).
This tool has a powerful and very intuitive command line interface (CLI).
If you are interested in leveraging your knowledge about Terraform CLI, a Cheat Sheet exists.
CDK for Terraform

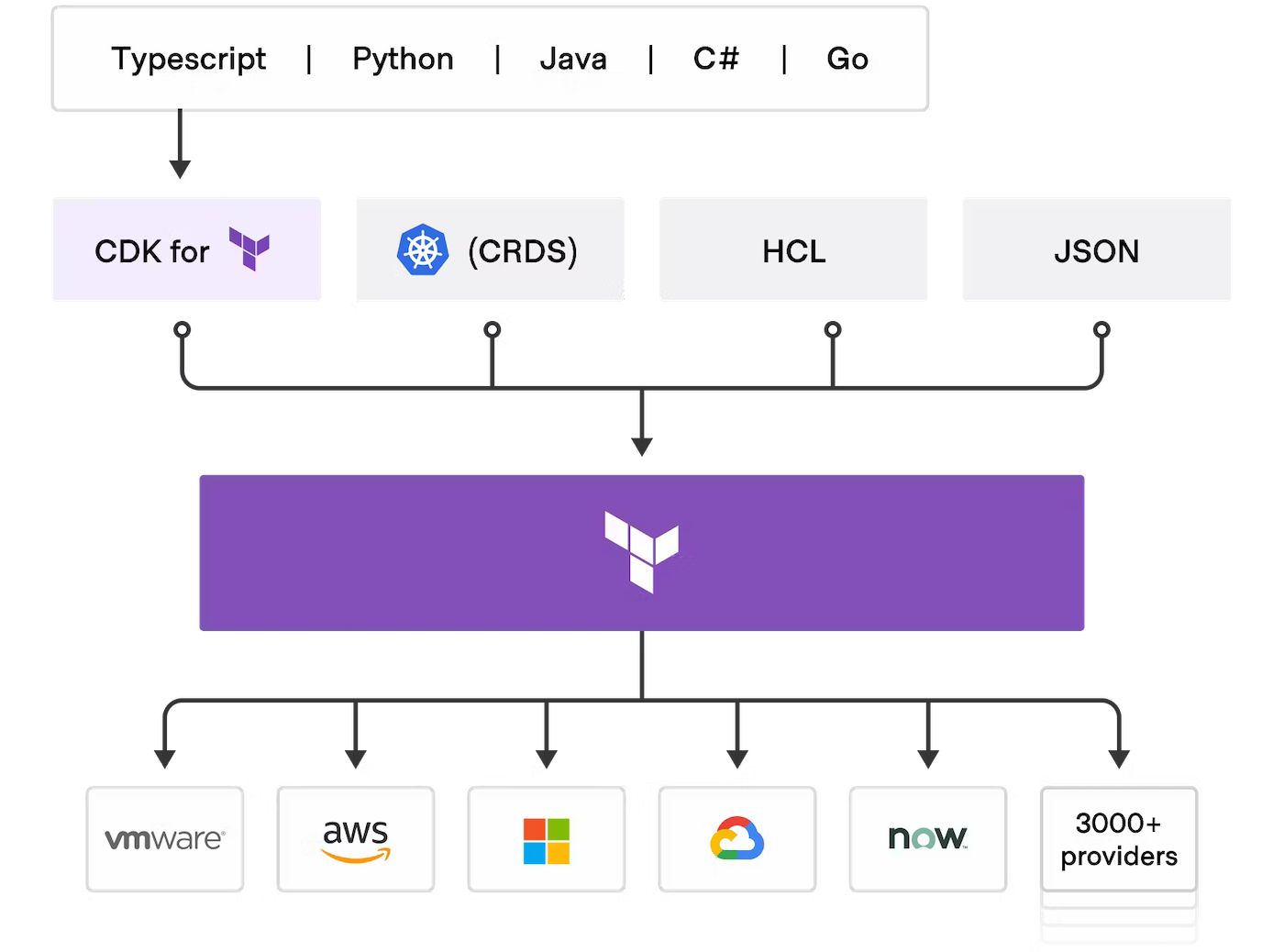

Cloud Development Kit for Terraform, also called CDKTF, converts the definitions you write in your preferred programming language to Terraform configuration files. It uses Terraform to provision and manage your infrastructure when you deploy your application.
It supports several programming languages: Go, Python, Java, TypeScript and C#. There is no need to define your infrastructures in HCL (Hashicorp Configuration Language) and it supports all existing Terraform providers and modules.
Read the official documentation of CDK for Terraform if you need further information.
Pulumi
Pulumi is an Infrastructure as code (IasC) tool that allows you to build your infrastructures with a programming language, in Golang for example.
Users define the desired state in Pulumi programs and Pulumi create the desired resources.
Pulumi offers an intuitive command line interface (CLI), to provision, update or delete your infrastructure. If you are familiar with Docker Compose CLI and Terraform CLI, you will adopt Pulumi CLI too.
Requirements
INFO
The specific prerequisites for each tool will be annotated in it directly.
TIP
Take advantage of reduced prices by committing to a period of 1 to 36 months on your Public Cloud resources. More information on our Savings Plans page.
Instructions
Via OVHcloud Control Panel

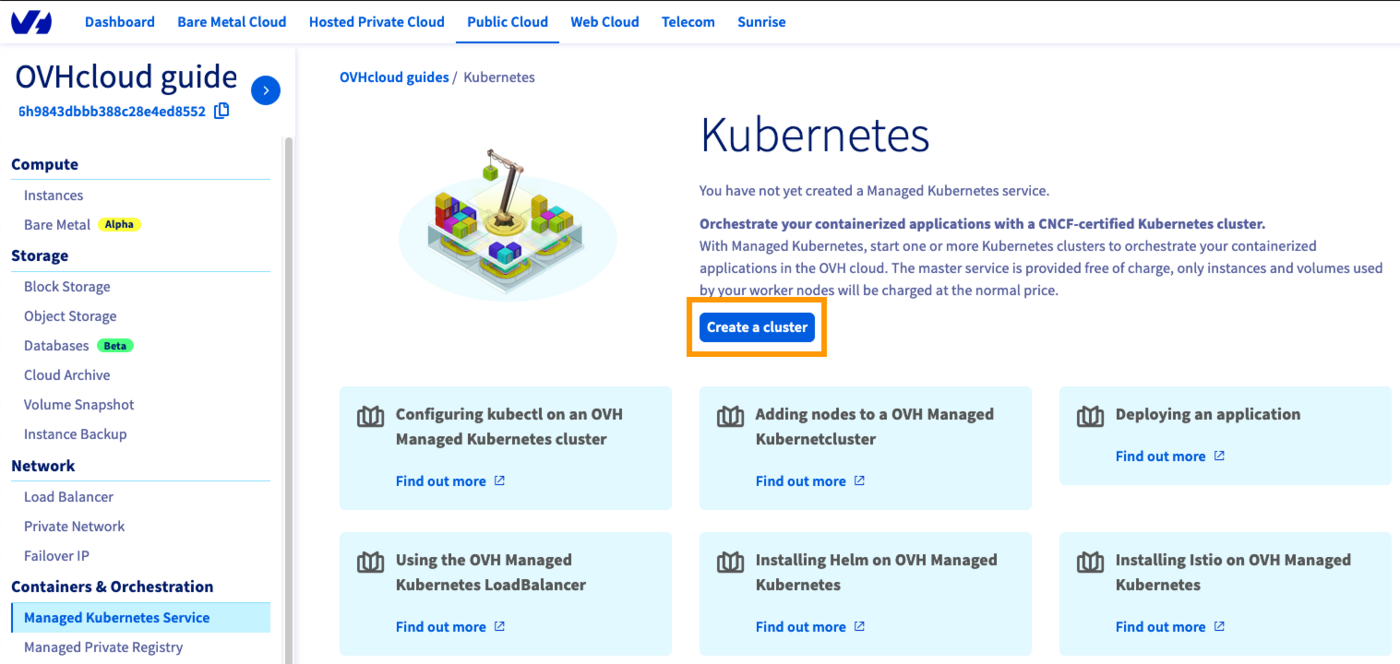

Log in to the OVHcloud Control Panel, go to the Public Cloud section and select the Public Cloud project concerned.
Access the administration UI for your OVHcloud Managed Kubernetes clusters by clicking on Managed Kubernetes Service in the left-hand menu and click on Create a cluster.

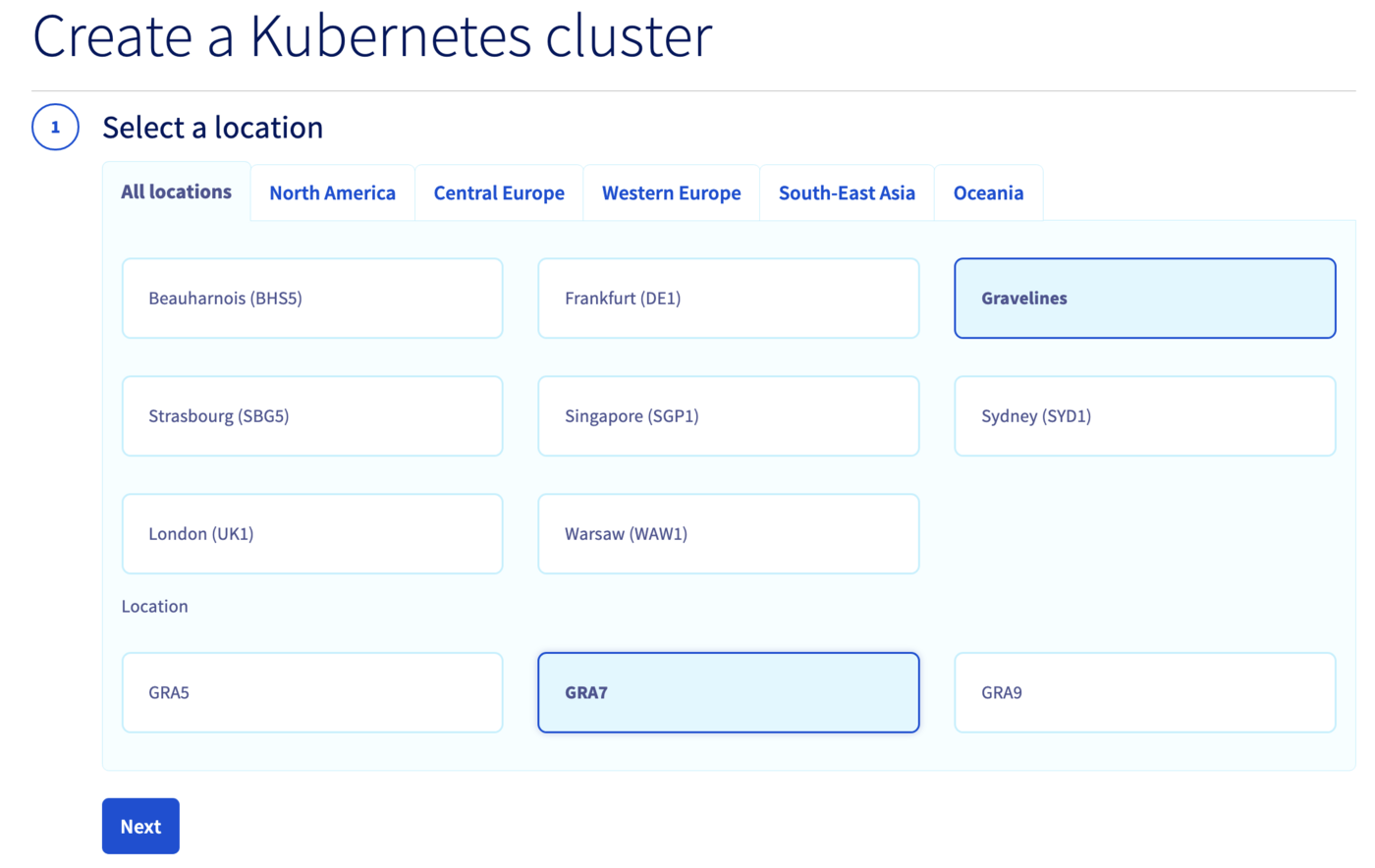

Select a location for your new cluster.

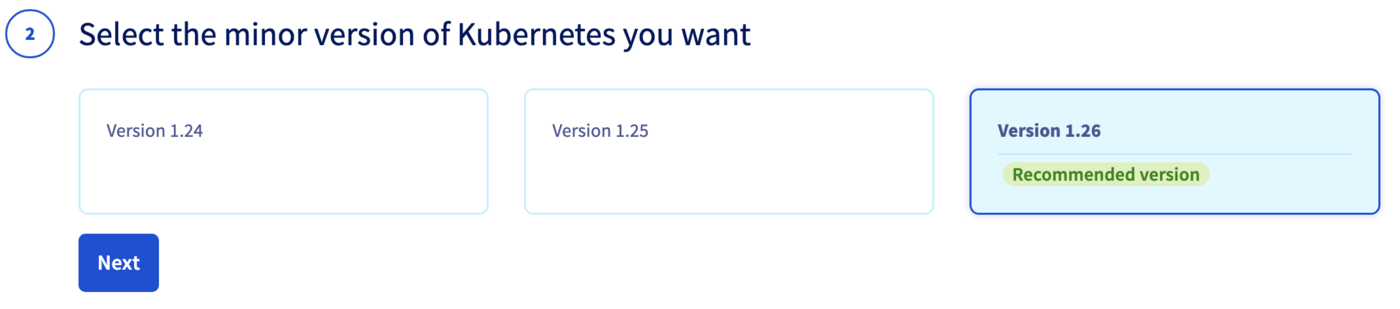

Choose the minor version of Kubernetes.

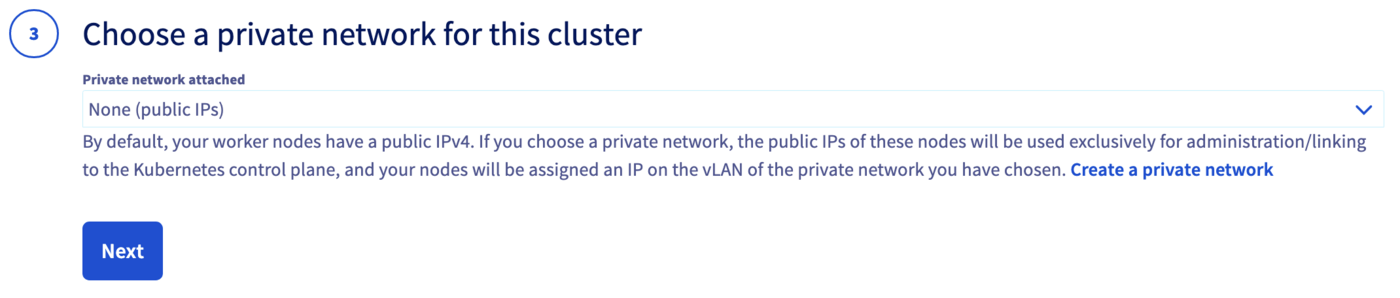

You can now choose to integrate your Kubernetes cluster into a private network using OVHcloud vRack. For more information about this option, please read our guide Using the vRack.

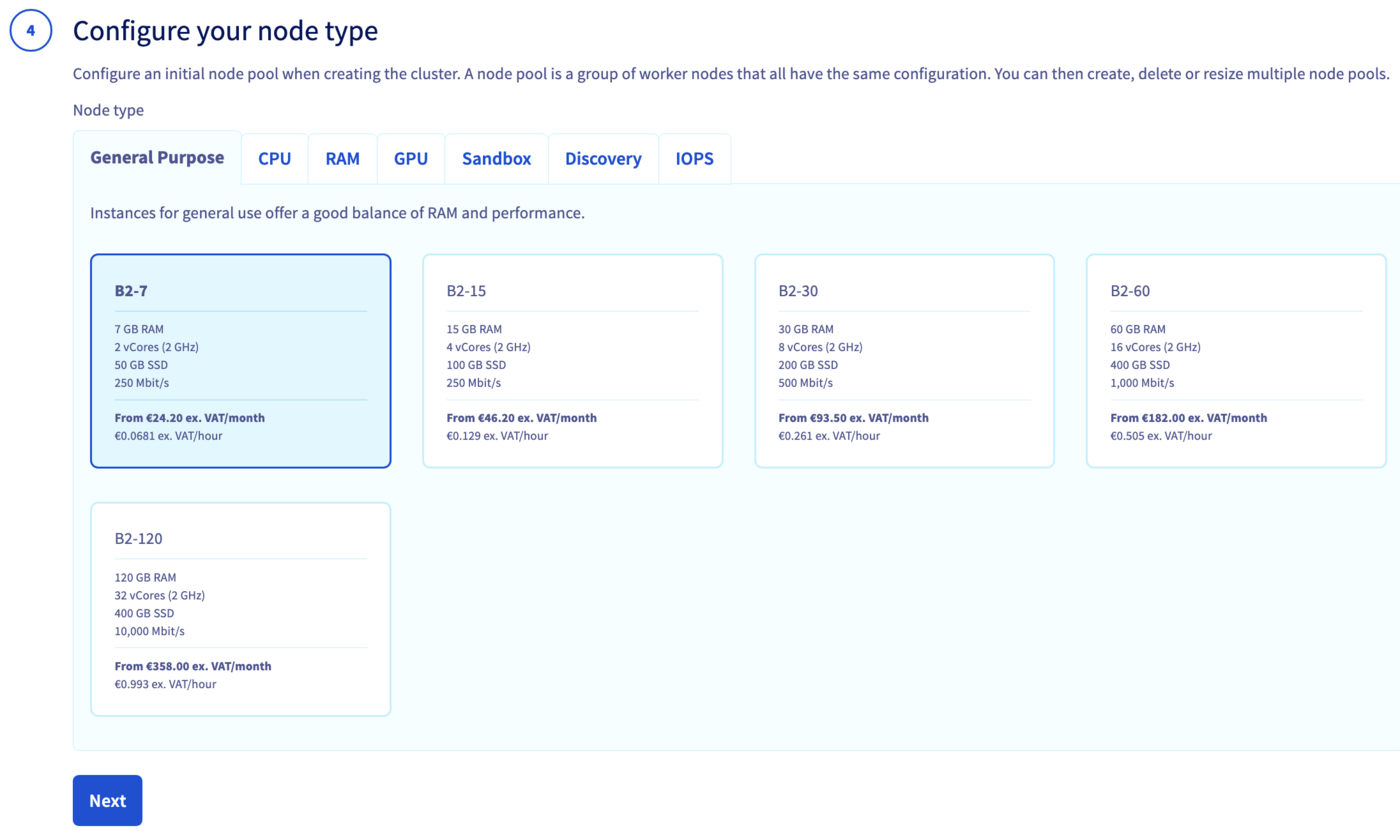

Now you can configure the default node pool. A node pool is a group of nodes sharing the same configuration, allowing you a lot of flexibility in your cluster management.

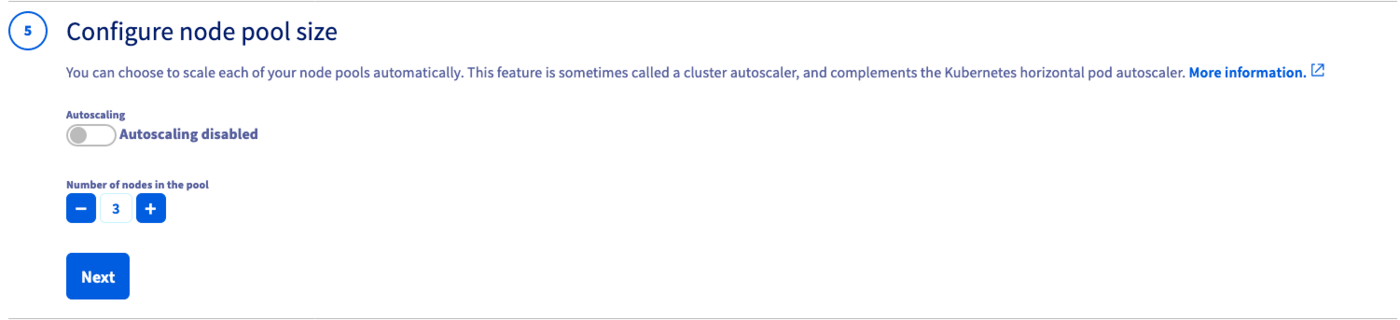

In the next step, define the size of the default node pool.

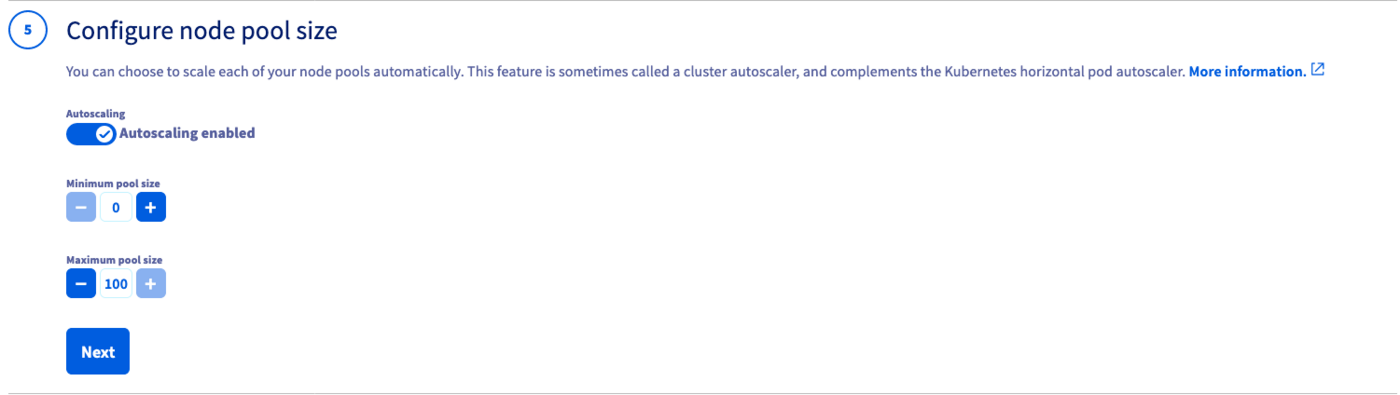

Alternatively, you can enable the Autoscaling feature for the cluster. Define the minimum and maximum pool size in that case.

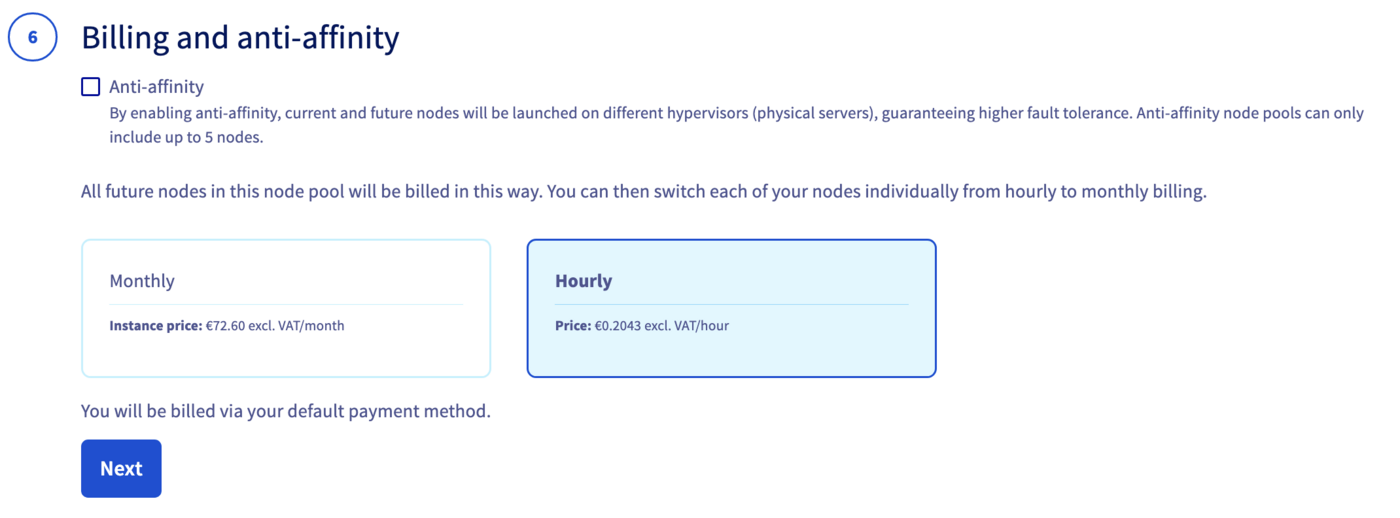

In the next step, choose the appropriate billing mode (monthly or hourly). You can also enable the anti-affinity mode here.
Info
By enabling anti-affinity, current and future nodes will be launched on different hypervisors (physical servers), guaranteeing higher fault tolerance. Anti-affinity node pools can only include up to 5 nodes.
Moreover, if you choose the monthly billing method, you cannot change later from monthly to hourly. A change is only possible the other way around.

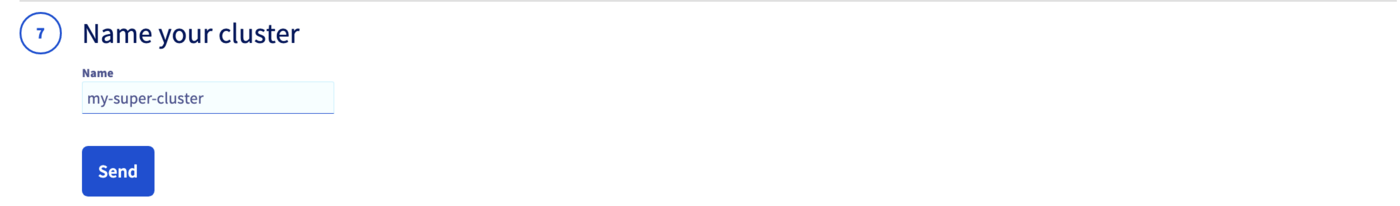

Enter a name for your cluster.
Finally, click the Send button.
The cluster creation is now in progress. It should be available within a few minutes in your OVHcloud Control Panel.
Warning
After a cluster is created, you can no longer change:
- The region.
- The private network ID.
Via Terraform
In order to create a Kubernetes cluster and other resources, OVHcloud provides a Terraform provider which is available in the official Terraform registry.
All available resources and data sources have their definition and documentation.
In this guide, we will create two resources:
The "OVH provider" needs to be configured with a set of credentials:
application_keyapplication_secretconsumer_key
Why?
Because, behind the scenes, the "OVH Terraform provider" is doing requests to OVHcloud APIs.
In order to retrieve this necessary information, please follow First steps with the OVHcloud APIs tutorial.
Concretely, you have to generate these credentials via the OVH token generation page with the following rights:
When you have successfully generated your OVH tokens, please keep them. You'll have to define them in the coming minutes ;-).
The last needed information is the service_name: it is the ID of your Public Cloud project.
How to get it?
In the Public Cloud section, you can retrieve your service name ID thanks to the Copy to clipboard button.
You will also use this information in Terraform resources definition files.
Create a cluster
When you want to manage (create, modify, and remove) your infrastructure, getting started with Terraform is easy.
Just create files ending with .tf containing the description of the resources you want to have.
In our case, we want to create:
- An OVHcloud managed Kubernetes cluster.
- A nodepool.
So, let's start!
Resources definition
First, create a provider.tf file with the minimum version, european endpoint ("ovh-eu") and keys you previously got in this guide.
Terraform 0.13 and later:
terraform {
required_providers {
ovh = {
source = "ovh/ovh"
}
}
}
provider "ovh" {
endpoint = "ovh-eu"
application_key = "<your_access_key>"
application_secret = "<your_application_secret>"
consumer_key = "<your_consumer_key>"
}
Terraform 0.12 and earlier:
# Configure the OVHcloud Provider
provider "ovh" {
endpoint = "ovh-eu"
application_key = "<your_access_key>"
application_secret = "<your_application_secret>"
consumer_key = "<your_consumer_key>"
}
Alternatively the secret keys can be retrieved from your environment.
OVH_ENDPOINTOVH_APPLICATION_KEYOVH_APPLICATION_SECRETOVH_CONSUMER_KEY
This later method (or a similar alternative) is recommended to avoid storing secret data in a source repository.
Here, we defined the ovh-eu endpoint because we want to call the OVHcloud Europe API, but other endpoints exist, depending on your needs:
ovh-eu for OVHcloud Europe APIovh-us for OVHcloud US APIovh-ca for OVHcloud North-America API
Then, create a variables.tf with service_name:
variable service_name {
type = string
default = "<your_service_name>"
}
Define the resources you want to create in a new file called ovh_kube_cluster.tf:
resource "ovh_cloud_project_kube" "my_kube_cluster" {
service_name = "${var.service_name}"
name = "my_kube_cluster"
region = "GRA7"
version = "1.22"
}
resource "ovh_cloud_project_kube_nodepool" "node_pool" {
service_name = "${var.service_name}"
kube_id = ovh_cloud_project_kube.my_kube_cluster.id
name = "my-pool" //Warning: "_" char is not allowed!
flavor_name = "b2-7"
desired_nodes = 3
max_nodes = 3
min_nodes = 3
}
In this resources configuration, we ask Terraform to create a Kubernetes cluster, in the GRA7 region, using the Kubernetes version 1.22 (the last and recommended version at the time we wrote this tutorial).

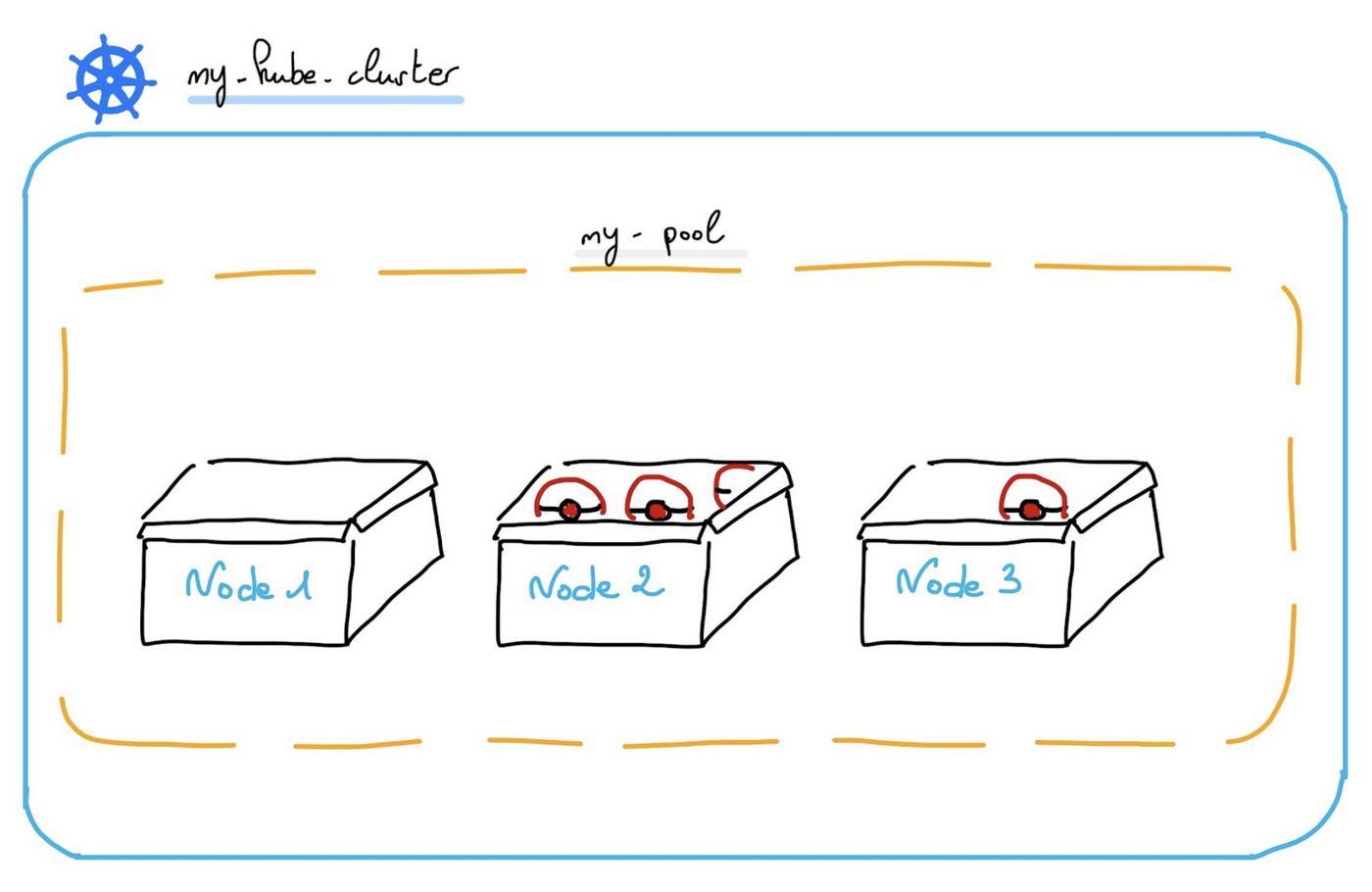

And we tell Terraform to create a Node Pool with 3 Nodes with B2-7 machine type.
Warning
You can't use "_" or "." as a separator in a node pool name or a flavor name.
You would obtain a "gzip: invalid header" during node pool creation.
Finally, create a output.tf file with the following content:
output "kubeconfig" {
value = ovh_cloud_project_kube.my_kube_cluster.kubeconfig
sensitive = true
}
With this output, we tell Terraform to retrieve the kubeconfig file content. This information is needed to connect to the new Kubernetes cluster.
For your information, outputs are useful to retrieve and display specific information after the resources creation.
Your code organisation should be like this:
.
├── output.tf
├── ovh_kube_cluster.tf
├── provider.tf
└── variables.tf
Now we need to initialise Terraform, generate a plan, and apply it.
$ terraform init
Initializing the backend...
Initializing provider plugins...
- Finding latest version of ovh/ovh...
- Installing ovh/ovh v0.17.1...
- Installed ovh/ovh v0.17.1 (signed by a HashiCorp partner, key ID F56D1A6CBDAAADA5)
Partner and community providers are signed by their developers.
If you'd like to know more about provider signing, you can read about it here:
https://www.terraform.io/docs/cli/plugins/signing.html
Terraform has created a lock file .terraform.lock.hcl to record the provider
selections it made above. Include this file in your version control repository
so that Terraform can guarantee to make the same selections by default when
you run "terraform init" in the future.
Terraform has been successfully initialized!
You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.
If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.
The init command will initialize your working directory which contains .tf configuration files.
It's the first command to execute for a new configuration, or after doing a checkout of an existing configuration in a given git repository for example.
The init command will:
- Download and install Terraform providers/plugins.
- Initialise backend (if defined).
- Download and install modules (if defined).
Now, we can generate our plan:
$ terraform plan
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create
Terraform will perform the following actions:
# ovh_cloud_project_kube.my_kube_cluster will be created
+ resource "ovh_cloud_project_kube" "my_kube_cluster" {
+ control_plane_is_up_to_date = (known after apply)
+ id = (known after apply)
+ is_up_to_date = (known after apply)
+ kubeconfig = (sensitive value)
+ name = "my_kube_cluster"
+ next_upgrade_versions = (known after apply)
+ nodes_url = (known after apply)
+ region = "GRA7"
+ service_name = "<YOUR_SERVICE_NAME>"
+ status = (known after apply)
+ update_policy = (known after apply)
+ url = (known after apply)
+ version = "1.22"
}
# ovh_cloud_project_kube_nodepool.node_pool will be created
+ resource "ovh_cloud_project_kube_nodepool" "node_pool" {
+ anti_affinity = false
+ autoscale = false
+ available_nodes = (known after apply)
+ created_at = (known after apply)
+ current_nodes = (known after apply)
+ desired_nodes = 3
+ flavor = (known after apply)
+ flavor_name = "b2-7"
+ id = (known after apply)
+ kube_id = (known after apply)
+ max_nodes = 3
+ min_nodes = 3
+ monthly_billed = false
+ name = "my-pool"
+ project_id = (known after apply)
+ service_name = "<YOUR_SERVICE_NAME>"
+ size_status = (known after apply)
+ status = (known after apply)
+ up_to_date_nodes = (known after apply)
+ updated_at = (known after apply)
}
Plan: 2 to add, 0 to change, 0 to destroy.
Changes to Outputs:
+ kubeconfig = (sensitive value)
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Note: You didn't use the -out option to save this plan, so Terraform can't guarantee to take exactly these actions if you run "terraform apply" now.
Thanks to the plan command, we can check what Terraform wants to create, modify or remove.
The plan is OK for us, so let's apply it:
$ terraform apply
An execution plan has been generated and is shown below.
Resource actions are indicated with the following symbols:
+ create
Terraform will perform the following actions:
# ovh_cloud_project_kube.my_kube_cluster will be created
+ resource "ovh_cloud_project_kube" "my_kube_cluster" {
+ control_plane_is_up_to_date = (known after apply)
+ id = (known after apply)
+ is_up_to_date = (known after apply)
+ kubeconfig = (sensitive value)
+ name = "my_kube_cluster"
+ next_upgrade_versions = (known after apply)
+ nodes_url = (known after apply)
+ region = "GRA7"
+ service_name = "<YOUR_SERVICE_NAME>"
+ status = (known after apply)
+ update_policy = (known after apply)
+ url = (known after apply)
+ version = "1.22"
}
# ovh_cloud_project_kube_nodepool.node_pool will be created
+ resource "ovh_cloud_project_kube_nodepool" "node_pool" {
+ anti_affinity = false
+ desired_nodes = 3
+ flavor_name = "b2-7"
+ id = (known after apply)
+ kube_id = (known after apply)
+ max_nodes = 3
+ min_nodes = 3
+ monthly_billed = false
+ name = "my-pool"
+ service_name = "<YOUR_SERVICE_NAME>"
+ status = (known after apply)
}
Plan: 2 to add, 0 to change, 0 to destroy.
Do you want to perform these actions?
Terraform will perform the actions described above.
Only 'yes' will be accepted to approve.
Enter a value: yes
ovh_cloud_project_kube.my_kube_cluster: Creating...
ovh_cloud_project_kube.my_kube_cluster: Still creating... [10s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [20s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [30s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [40s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [50s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [1m0s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [1m10s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [1m20s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [1m30s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [1m40s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [1m50s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [2m0s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [2m10s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [2m20s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still creating... [2m30s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Creation complete after 2m32s [id=7628f0e1-a082-4ec5-98df-2aba283ca3f3]
ovh_cloud_project_kube_nodepool.node_pool: Creating...
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [10s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [20s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [30s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [40s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [50s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [1m0s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [1m10s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [1m20s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [1m30s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [1m40s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [1m50s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [2m0s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [2m10s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [2m20s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [2m30s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [2m40s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [2m50s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [3m0s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [3m10s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [3m20s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [3m30s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [3m40s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [3m50s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still creating... [4m0s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Creation complete after 4m5s [id=ebfa7726-d50c-4fbc-8b24-e722a1ff28f5]
Apply complete! Resources: 2 added, 0 changed, 0 destroyed.
Outputs:
kubeconfig = <sensitive>
Now, log in to the OVHcloud Control Panel, go to the Public Cloud section and click on Managed Kubernetes Service.

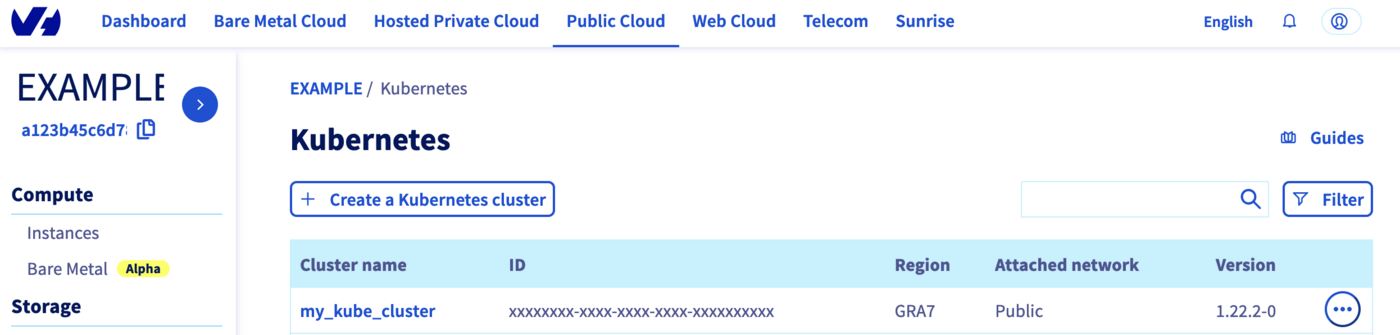

As you can see, your cluster has been successfuly created:

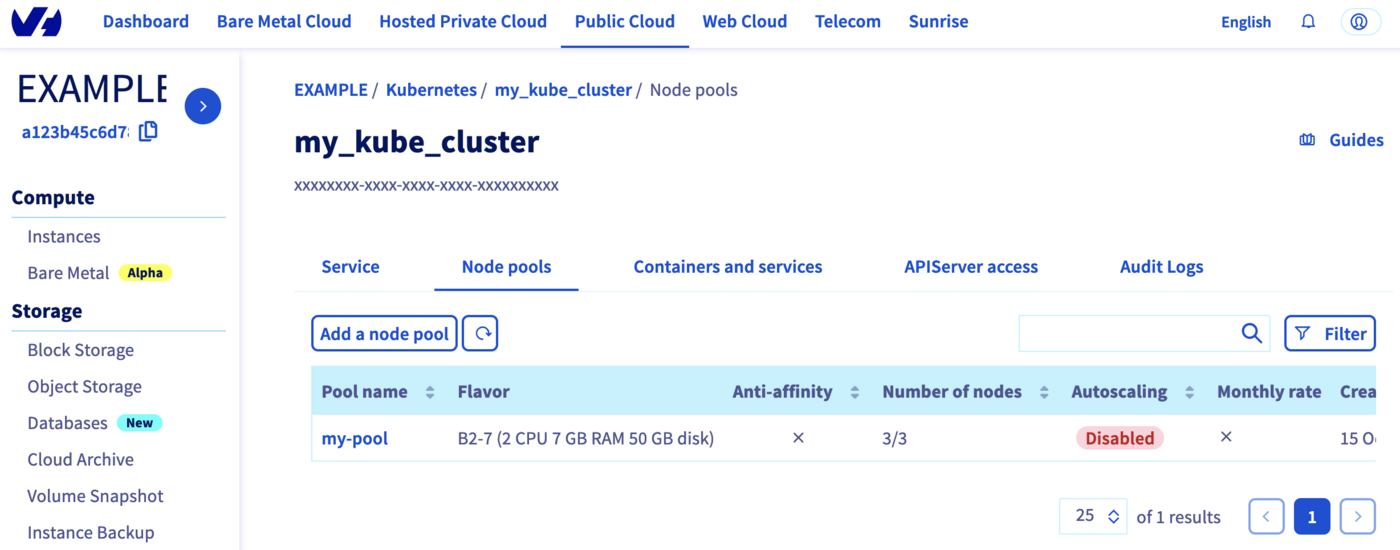

Now, click on my_kube_cluster, then on the Node pools tab:
Our node pool is created too.
Perfect!
Via CDK for Terraform
In order to create a Kubernetes cluster and other resources, OVHcloud provides a Terraform provider which is available in the official Terraform registry.
All available resources and data sources have their own definition and documentation.
CDKTF will "translate" your code into an HCL configuration file and then call terraform and use the existing OVHcloud Terraform provider.
We will create two resources:
The "OVH provider" needs to be configured with a set of credentials:
endpointapplication_keyapplication_secretconsumer_keyservice_name
This is because, behind the scenes, the "OVH Terraform provider" is doing requests to OVHcloud APIs.
To retrieve the necessary information, please follow the tutorial First steps with the OVHcloud APIs.
Concretely, you have to generate these credentials via the OVH token generation page with the following rights:
Once you have successfully generated your OVH tokens, keep them. You will need to define them later.
The last piece of information you need is the service_name: this is the ID of your Public Cloud project.
How do you get it?
In the Public Cloud section, you can retrieve your Public Cloud project ID thanks to the Copy to clipboard button.
Summary of the needed environment variables:
These keys can be generated via the OVHcloud token generation page.
Example:
# OVHcloud provider needed keys
export OVH_ENDPOINT="ovh-eu"
export OVH_APPLICATION_KEY="xxx"
export OVH_APPLICATION_SECRET="xxx"
export OVH_CONSUMER_KEY="xxx"
export OVH_CLOUD_PROJECT_SERVICE="xxx"
Deploying an OVHcloud Managed Kubernetes cluster and a node pool in Go / Golang
In this guide, we want to create, in Go:
- An OVHcloud managed Kubernetes cluster.
- A node pool.
Project initialization
Create a folder and access it:
$ mkdir ovhcloud-kube
$ cd ovhcloud-kube
Initialize your project with cdktf CLI:
$ cdktf init --template=go --providers="ovh/ovh@~>0.37.0" "hashicorp/local" --providers-force-local --local --project-name=ovhcloud-kube --project-description="Go app that deploy an OVHcloud Managed Kubernetes cluster and a node pool" --enable-crash-reporting
Note: By providing the '--local' option, you have chosen local storage mode to store your stack state.
This means that your Terraform state file will be stored locally on disk in a file 'terraform.<STACK NAME>.tfstate' at the root of your project.
go: upgraded github.com/aws/jsii-runtime-go v1.67.0 => v1.94.0
========================================================================================================
Your cdktf go project is ready!
cat help Prints this message
Compile:
go build Builds your go project
Synthesize:
cdktf synth [stack] Synthesize Terraform resources to cdktf.out/
Diff:
cdktf diff [stack] Perform a diff (terraform plan) for the given stack
Deploy:
cdktf deploy [stack] Deploy the given stack
Destroy:
cdktf destroy [stack] Destroy the given stack
Learn more about using modules and providers https://cdk.tf/modules-and-providers
Use Providers:
Use the add command to add providers:
cdktf provider add "aws@~>3.0" null kreuzwerker/docker
Learn more: https://cdk.tf/modules-and-providers
========================================================================================================
[2024-03-14T10:46:23.030] [INFO] default - Adding local provider registry.terraform.io/ovh/ovh with version constraint ~>0.37.0 to cdktf.json
[2024-03-14T10:46:23.032] [INFO] default - Adding local provider registry.terraform.io/hashicorp/local with version constraint undefined to cdktf.json
Local providers have been updated. Running cdktf get to update...
Generated go constructs in the output directory: generated
The generated code depends on jsii-runtime-go. If you haven't yet installed it, you can run go mod tidy to automatically install it.
Run 'go mod tidy' after adding imports for any needed modules such as prebuilt providers
The command initializes the application in the programming language you have specified (Go in our case) with the list of existing Terraform providers you have defined (OVHcloud and Hashicorp local) and stores the Terraform State locally (thanks to the --local flag).
The code organization of your project is created:
-rw-r--r-- 1 gitpod gitpod 265 Mar 14 10:15 cdktf.json
-rwxr-xr-x 3 gitpod gitpod 62 Mar 14 10:16 generated/
-rw-r--r-- 1 gitpod gitpod 354 Mar 14 10:15 .gitignore
-rw-r--r-- 1 gitpod gitpod 265 Mar 14 10:15 go.mod
-rw-r--r-- 1 gitpod gitpod 1238 Mar 14 10:15 go.sum
-rw-r--r-- 1 gitpod gitpod 902 Mar 14 10:15 help
-rw-r--r-- 1 gitpod gitpod 401 Mar 14 10:15 main.go
-rw-r--r-- 1 gitpod gitpod 974 Mar 14 10:15 main_test.go
Let's explain the different generated files:
cdktf.json contains configuration settings for your applicationgenerated folder contains the OVHcloud Terraform provider translated in Go.gitignore contains the gitignore filego.mod and go.sum files contain the dependencies of your Go applicationhelp contains useful cdktf commands to executemain.go is the Go programmain_test.go is for declaring unit test for your Go program
Resources definition
Edit the main.go file and replace the existing content with the following content:
package main
import (
"os"
"path"
"cdk.tf/go/stack/generated/hashicorp/local/file"
local "cdk.tf/go/stack/generated/hashicorp/local/provider"
"cdk.tf/go/stack/generated/ovh/ovh/cloudprojectkube"
"cdk.tf/go/stack/generated/ovh/ovh/cloudprojectkubenodepool"
ovh "cdk.tf/go/stack/generated/ovh/ovh/provider"
"github.com/aws/constructs-go/constructs/v10"
"github.com/aws/jsii-runtime-go"
"github.com/hashicorp/terraform-cdk-go/cdktf"
)
func NewMyStack(scope constructs.Construct, id string) cdktf.TerraformStack {
stack := cdktf.NewTerraformStack(scope, &id)
// Initialize the OVH provider
ovh.NewOvhProvider(stack, jsii.String("ovh"), &ovh.OvhProviderConfig{
Endpoint: jsii.String("ovh-eu"), //required
})
// Initialize the Local provider
local.NewLocalProvider(stack, jsii.String("local"), &local.LocalProviderConfig{})
// Get serviceName from the env var OVH_CLOUD_PROJECT_SERVICE
serviceName := os.Getenv("OVH_CLOUD_PROJECT_SERVICE")
// Deploy a new Kubernetes cluster
kube := cloudprojectkube.NewCloudProjectKube(stack, jsii.String("my_desired_cluster"), &cloudprojectkube.CloudProjectKubeConfig{
ServiceName: jsii.String(serviceName),
Name: jsii.String("my_desired_cluster"),
Region: jsii.String("GRA5"),
})
cdktf.NewTerraformOutput(stack, jsii.String("cluster_version"), &cdktf.TerraformOutputConfig{
Value: kube.Version(),
})
//Save the kubeconfig file in your current directory
pwd, _ := os.Getwd()
file.NewFile(stack, jsii.String("kubeconfig"), &file.FileConfig{
Filename: jsii.String(path.Join(pwd, "kubeconfig.yaml")),
Content: kube.Kubeconfig(),
FilePermission: jsii.String("0644"),
})
// Deploy a Node Pool
nodePool := cloudprojectkubenodepool.NewCloudProjectKubeNodepool(stack, jsii.String("my-pool"), &cloudprojectkubenodepool.CloudProjectKubeNodepoolConfig{
ServiceName: kube.ServiceName(),
KubeId: kube.Id(),
Name: jsii.String("my-pool"),
DesiredNodes: jsii.Number(1),
MaxNodes: jsii.Number(3),
MinNodes: jsii.Number(1),
FlavorName: jsii.String("b2-7"),
})
cdktf.NewTerraformOutput(stack, jsii.String("nodePoolID"), &cdktf.TerraformOutputConfig{
Value: nodePool.Id(),
})
return stack
}
func main() {
app := cdktf.NewApp(nil)
NewMyStack(app, "ovhcloud")
app.Synth()
}
In this resource configuration, we ask Terraform to create a Kubernetes cluster, in the GRA5 region, using the latest recommended version of Kubernetes.
We tell Terraform to create a node pool with 3 nodes with machine type B2-7.
And we tell Terraform to save the Kubernetes cluster configuration in a local file named kubeconfig.yaml. This information is needed to connect to the new Kubernetes cluster.
For your information, outputs are useful for retrieving and displaying specific information after resources have been created.
Creating a cluster through CDKTF
We can now use Terraform, via the CDK, to deploy our Kubernetes cluster and its node pool.
The following command will generate the Terraform plan. If you aprove it, the changes will be applied.
$ cdktf deploy
ovhcloud Initializing the backend...
ovhcloud Initializing provider plugins...
- Reusing previous version of ovh/ovh from the dependency lock file
ovhcloud - Reusing previous version of hashicorp/local from the dependency lock file
ovhcloud - Using previously-installed ovh/ovh v0.37.0
ovhcloud - Using previously-installed hashicorp/local v2.5.1
Terraform has been successfully initialized!
You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
ovhcloud should now work.
If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.
ovhcloud Terraform used the selected providers to generate the following execution plan.
Resource actions are indicated with the following symbols:
+ create
Terraform will perform the following actions:
# local_file.kubeconfig (kubeconfig) will be created
+ resource "local_file" "kubeconfig" {
+ content = (sensitive value)
+ content_base64sha256 = (known after apply)
+ content_base64sha512 = (known after apply)
+ content_md5 = (known after apply)
+ content_sha1 = (known after apply)
+ content_sha256 = (known after apply)
+ content_sha512 = (known after apply)
+ directory_permission = "0777"
+ file_permission = "0644"
+ filename = "/workspace/guide/ovhcloud-kube/kubeconfig.yaml"
+ id = (known after apply)
}
ovhcloud # ovh_cloud_project_kube.my_desired_cluster (my_desired_cluster) will be created
+ resource "ovh_cloud_project_kube" "my_desired_cluster" {
+ control_plane_is_up_to_date = (known after apply)
+ id = (known after apply)
+ is_up_to_date = (known after apply)
+ kube_proxy_mode = (known after apply)
+ kubeconfig = (sensitive value)
+ kubeconfig_attributes = (sensitive value)
+ name = "my_desired_cluster"
+ next_upgrade_versions = (known after apply)
+ nodes_url = (known after apply)
+ region = "GRA5"
+ service_name = "xxxxxxxxxxxxxxxxxxxxxxxxxxxx"
+ status = (known after apply)
+ update_policy = (known after apply)
+ url = (known after apply)
+ version = (known after apply)
}
# ovh_cloud_project_kube_nodepool.my-pool (my-pool) will be created
+ resource "ovh_cloud_project_kube_nodepool" "my-pool" {
+ anti_affinity = (known after apply)
+ autoscale = (known after apply)
+ autoscaling_scale_down_unneeded_time_seconds = (known after apply)
+ autoscaling_scale_down_unready_time_seconds = (known after apply)
+ autoscaling_scale_down_utilization_threshold = (known after apply)
+ available_nodes = (known after apply)
+ created_at = (known after apply)
+ current_nodes = (known after apply)
+ desired_nodes = 1
+ flavor = (known after apply)
+ flavor_name = "b2-7"
+ id = (known after apply)
+ kube_id = (known after apply)
+ max_nodes = 3
+ min_nodes = 1
+ monthly_billed = (known after apply)
+ name = "my-pool"
+ project_id = (known after apply)
+ service_name = "xxxxxxxxxxxxxxxxxxxxxxxxxxxx"
+ size_status = (known after apply)
+ status = (known after apply)
+ up_to_date_nodes = (known after apply)
+ updated_at = (known after apply)
}
Plan: 3 to add, 0 to change, 0 to destroy.
Changes to Outputs:
+ cluster_version = (known after apply)
+ nodePoolID = (known after apply)
Do you want to perform these actions?
Terraform will perform the actions described above.
Only 'yes' will be accepted to approve.
ovhcloud Enter a value: yes
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Creating...
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [10s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [20s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [30s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [40s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [50s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [1m0s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [1m10s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [1m20s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [1m30s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [1m40s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [1m50s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [2m0s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [2m10s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [2m20s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [2m30s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [2m40s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [2m50s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [3m0s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [3m10s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [3m20s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [3m30s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [3m40s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [3m50s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [4m0s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [4m10s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [4m20s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [4m30s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [4m40s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [4m50s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [5m0s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [5m10s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [5m20s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [5m30s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [5m40s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [5m50s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [6m0s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [6m10s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [6m20s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [6m30s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [6m40s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [6m50s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [7m0s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still creating... [7m10s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Creation complete after 7m15s [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Creating...
ovhcloud local_file.kubeconfig: Creating...
ovhcloud local_file.kubeconfig: Creation complete after 0s [id=xxxxxxxxxxxxxxxxxxxxx]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [10s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [20s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [30s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [40s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [50s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [1m0s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [1m10s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [1m20s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [1m30s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [1m40s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [1m50s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [2m0s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [2m10s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [2m20s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [2m30s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [2m40s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [2m50s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [3m0s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [3m10s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [3m20s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [3m30s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [3m40s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [3m50s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [4m0s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [4m10s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [4m20s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [4m30s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [4m40s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [4m50s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [5m0s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [5m10s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [5m20s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still creating... [5m30s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Creation complete after 5m33s [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx]
ovhcloud
Apply complete! Resources: 3 added, 0 changed, 0 destroyed.
Outputs:
cluster_version = "1.28"
nodePoolID = "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx"
ovhcloud
cluster_version = 1.28
nodePoolID = xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx
Log in to the OVHcloud Control Panel, go to the Public Cloud section and click on Managed Kubernetes Service.
As you can see, your cluster has been successfuly created:
Click on my_desired_cluster, then on the Node pools tab:
Our node pool is also created.
Via Pulumi
One advantage of Pulumi is that it allows you to build your infrastructures with the programming language of your choice. It supports a variety of programming languages.
In this tutorial you will be able to deploy your Kubernetes cluster and its node pool in the Go/Golang programming language.
For your information, our OVH Pulumi provider currently supports Go but also Python, Node.js/Typescript and C#/Dotnet.
Examples:
Before you begin
Verify the Pulumi CLI is successfully installed in your machine with the pulumi version command.
You should have a result like this:
OVHcloud Pulumi provider
In order to create a Kubernetes cluster and other resources, you will use the OVHcloud Pulumi provider. This provider is a bridge to our official Terraform provider.
All available Pulumi resources have their definition and documentation.
In this guide, we will create two resources:
The "OVH provider" needs to be configured with a set of credentials, which can be set using Pulumi stack configuration or environment variables:
ovh:endpoint (environment variable: OVH_ENDPOINT)ovh:applicationKey (environment variable: OVH_APPLICATION_KEY)ovh:applicationSecret (secret) (environment variable: OVH_APPLICATION_SECRET)ovh:consumerKey (environment variable: OVH_CONSUMER_KEY)
Why?
Behind the scenes, the provider is doing requests to OVHcloud APIs.
In order to retrieve this necessary information, please follow our first steps with the OVHcloud APIs guide.
In concrete terms, you have to generate these credentials via the OVH token generation page with the following rights:
When you have successfully generated your OVH tokens, please save them as you will have to use them in the coming minutes.
The last needed information is the serviceName: it is the ID of your Public Cloud project.
How to get it?
In the Public Cloud section, you can retrieve your service name ID thanks to the Copy to clipboard button.
Define the secret keys as environment variables:
export OVH_ENDPOINT="ovh-eu"
export OVH_APPLICATION_KEY="xxx"
export OVH_APPLICATION_SECRET="xxx"
export OVH_CONSUMER_KEY="xxx"
Info
Replace xxx by the correct values and ovh-eu with the correct endpoint.
Deploy your Kubernetes cluster in Go / Golang
Pulumi project creation and initialization
In Pulumi, the infrastructure is organized into projects. In the Pulumi ecosystem, a project represents a Pulumi program which, when run, declares the desired infrastructure for Pulumi to manage.
First, create a folder named pulumi_ovh_kube which represents our project and go into it.
mkdir pulumi_ovh_kube
cd pulumi_ovh_kube
Initialize your project:
The output should be like this:
$ pulumi new go -y
Created project 'pulumi_ovh_kube'
Please enter your desired stack name.
To create a stack in an organization, use the format <org-name>/<stack-name> (e.g. `acmecorp/dev`).
Created stack 'dev'
Installing dependencies...
Finished installing dependencies
Your new project is ready to go!
To perform an initial deployment, run `pulumi up`
The command creates a dev stack and the code organization of your project:
$ tree
.
├── go.mod
├── go.sum
├── main.go
└── Pulumi.yaml
Now you need to install the Pulumi OVH provider.
go get github.com/ovh/pulumi-ovh/sdk/go/...
In order to create an OVHcloud Managed Kubernetes cluster, you need to define the serviceName.
Edit the Pulumi.yaml file with the following content:
config:
serviceName: <your-service-name>
Info
Replace <your-service-name> by your Public Cloud project.
Then, edit the main.go file and replace the content with the following:
package main
import (
"github.com/pulumi/pulumi/sdk/v3/go/pulumi"
"github.com/pulumi/pulumi/sdk/v3/go/pulumi/config"
"github.com/ovh/pulumi-ovh/sdk/go/ovh/cloudproject"
)
func main() {
pulumi.Run(func(ctx *pulumi.Context) error {
serviceName := config.Require(ctx, "serviceName")
// Deploy a new Kubernetes cluster
myKube, err := cloudproject.NewKube(ctx, "my_desired_cluster", &cloudproject.KubeArgs{
ServiceName: pulumi.String(serviceName),
Name: pulumi.String("my_desired_cluster"),
Region: pulumi.String("GRA5"),
})
if err != nil {
return err
}
// Export kubeconfig file to a secret
ctx.Export("kubeconfig", pulumi.ToSecret(myKube.Kubeconfig))
//Create a Node Pool
nodePool, err := cloudproject.NewKubeNodePool(ctx, "my-desired-pool", &cloudproject.KubeNodePoolArgs{
ServiceName: pulumi.String(serviceName),
KubeId: myKube.ID(),
Name: pulumi.String("my-desired-pool"),
DesiredNodes: pulumi.Int(1),
MaxNodes: pulumi.Int(3),
MinNodes: pulumi.Int(1),
FlavorName: pulumi.String("b2-7"),
})
if err != nil {
return err
}
ctx.Export("nodePoolID", nodePool.ID())
return nil
})
}
This Go program will create an OVHcloud Managed Kubernetes cluster:
- Named
my-desired-cluster.
- In the
GRA5 region.
- In your Public Cloud project (depending on the
serviceName you defined).
And a Kubernetes Node Pool:
- Named
my-desired-pool.
- With
b2-7 flavor/machine type.
- With 1 desired node, 2 node minimum and 3 node maximum.
Then, run the go mod tidy command to ask Go to download and install the necessary Go providers and dependencies.
Create your Kubernetes cluster through Pulumi
Now you can deploy your cluster and the node pool. To do that, just execute the pulumi up comand.
This will display the plan/the preview of the desireed state. You will be prompted to choose the stack (dev by default) and to confirm that you want to perform/apply the changes.
$ pulumi up
Previewing update (dev)
View in Browser (Ctrl+O): https://app.pulumi.com/scraly/pulumi_ovh_kube/dev/previews/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
Downloading plugin: 18.02 MiB / 18.02 MiB [=========================] 100.00% 5s
[resource plugin ovh-0.34.0] installing
Type Name Plan
+ pulumi:pulumi:Stack pulumi_ovh_kube-dev create
+ ├─ ovh:CloudProject:Kube my_desired_cluster create
+ └─ ovh:CloudProject:KubeNodePool my-desired-pool create
Outputs:
kubeconfig: [secret]
nodePoolID: output<string>
Resources:
+ 3 to create
Do you want to perform this update? yes
Updating (dev)
View in Browser (Ctrl+O): https://app.pulumi.com/scraly/pulumi_ovh_kube/dev/updates/1
Type Name Status
+ pulumi:pulumi:Stack pulumi_ovh_kube-dev created (394s)
+ ├─ ovh:CloudProject:Kube my_desired_cluster created (241s)
+ └─ ovh:CloudProject:KubeNodePool my-desired-pool created (150s)
Outputs:
kubeconfig: [secret]
nodePoolID: "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
Resources:
+ 3 created
Duration: 6m37s
Log in to the OVHcloud Control Panel, go to the Public Cloud section and click on Managed Kubernetes Service.
As you can see, your cluster has been successfuly created:
Now, click on my_kube_cluster then on the Node pools tab:
YOur node pool is created too.
Connect to the cluster
Via Terraform
Our cluster is created, now we need to connect to it in order to check our nodes, existing pods and to deploy our applications.
In order to do this, retrieve the kubeconfig file locally:
$ terraform output -raw kubeconfig > /Users/<your-user>/.kube/my_kube_cluster.yml
You can define it in your $KUBECONFIG environment variable or you can use it directly in the kubectl command with --kubeconfig option.
List our Node Pool:
$ kubectl --kubeconfig=/Users/<your-user>/.kube/my_kube_cluster.yml get nodepool
NAME FLAVOR AUTO SCALED MONTHLY BILLED ANTI AFFINITY DESIRED CURRENT UP-TO-DATE AVAILABLE MIN MAX AGE
my-pool b2-7 false false false 3 3 3 3 3 3 1d
Display the list of Nodes:
$ kubectl --kubeconfig=/Users/<your-user>/.kube/my_kube_cluster.yml get node
NAME STATUS ROLES AGE VERSION
my-pool-node-1bb290 Ready <none> 1d v1.22.2
my-pool-node-8280a6 Ready <none> 1d v1.22.2
my-pool-node-8a1bfe Ready <none> 1d v1.22.2
Awesome!
You can now deploy your applications and/or create new clusters through Terraform.
Via CDK for Terraform
Our cluster has been created, we now need to connect to it to check our nodes and existing pods and deploy our applications.
In order to do this, the kubeconfig file was created locally:
You can define it in your $KUBECONFIG environment variable or you can use it directly in the kubectl command with --kubeconfig option.
List of our Node Pool:
$ kubectl --kubeconfig=kubeconfig.yaml get nodepool
NAME FLAVOR AUTOSCALED MONTHLYBILLED ANTIAFFINITY DESIRED CURRENT UP-TO-DATE AVAILABLE MIN MAX AGE
my-pool b2-7 false false false 1 1 1 1 1 3 80m
Display the list of Nodes:
$ kubectl --kubeconfig=kubeconfig.yaml get node
NAME STATUS ROLES AGE VERSION
my-pool-node-0784ed Ready <none> 76m v1.28.3
You can now deploy your applications and/or create new clusters through Terraform.
Via Pulumi
Your cluster is created, you now need to connect to it in order to check your nodes, existing pods and to deploy your applications.
In order to do this, retrieve the kubeconfig file locally from the dev Pulumi stack:
pulumi stack output kubeconfig --show-secrets -s dev > kubeconfig.yaml
You can define it in your $KUBECONFIG environment variable or you can use it directly in the kubectl command with the --kubeconfig option.
List your Node Pools:
$ kubectl --kubeconfig=kubeconfig.yaml get nodepool
NAME FLAVOR AUTOSCALED MONTHLYBILLED ANTIAFFINITY DESIRED CURRENT UP-TO-DATE AVAILABLE MIN MAX AGE
my-desired-pool b2-7 false false false 1 1 1 1 1 3 3m25s
Display the list of Nodes:
$ kubectl --kubeconfig=kubeconfig.yaml get node
NAME STATUS ROLES AGE VERSION
my-desired-pool-node-a90c09 Ready <none> 115s v1.27.4
You can now deploy your applications and/or create new clusters through Pulumi.
Known issues
Via Terraform
You defined the node pool you want to create? So it's time to enter the terraform apply command.
ovh_cloud_project_kube_nodepool.node_pool[0]: Creating...
local_file.kubeconfig[0]: Creating...
local_file.kubeconfig[0]: Creation complete after 0s [id=c5d11f6df9df77a0b57b6c14c3be4fb48178f6ac]
Error: calling Post /cloud/project/a212a1e43b614c4ba27a247b890fcf59/kube/90cb98f1-ad48-4f98-95c8-07188ea765cf/nodepool with params my-pool-0(d2.8): 3/3/3:
"gzip: invalid header"
on ovh_kube_cluster.tf line 10, in resource "ovh_cloud_project_kube_nodepool" "node_pool":
10: resource "ovh_cloud_project_kube_nodepool" "node_pool" {
We do agree the error message is not user friendly, we will work on it. ;-)
If you get this "gzip: invalid header" error message, the issue is that you name the flavor or the node pool name with an invalid character: "_" or ".".
The API don't support these characters so that's the reason why you obtained this error message.
In order to fix it, change the flavor name and/or the pool name to a correct one, for example:
resource "ovh_cloud_project_kube_nodepool" "node_pool" {
service_name = var.service_name
kube_id = ovh_cloud_project_kube.my_kube_cluster.id
name = "my-pool" //Warning: "_" char is not allowed!
flavor_name = "b2-7"
desired_nodes = 3
max_nodes = 3
min_nodes = 3
}
"not enough xxx quotas"
By default, the Public Cloud projects as well as the resources total (RAM, CPU, disk space, number of instances, etc.) you can use are limited for security reasons.
When you create a new Kubernetes Node Pool, if you run out of resources in your available quota, the Nodes might be in error.
You may get the following error message: "not enough xxx quotas".
xxx can be: RAM, CPU, VM, Disk or Port.
If this is the case, the quotas must be increased.
In order to check your quotas and increase them, please follow this tutorial:
Increasing Public Cloud quotas.
Via CDK for Terraform
"not enough xxx quotas"
By default, Public Cloud projects as well as the total resources (RAM, CPU, disk space, number of instances, etc.) that you can use are limited for security reasons.
When you create a new Kubernetes Node pool, if you run out of resources in your available quota, the Nodes might be in error.
You may get the following error message: "not enough xxx quotas".
"xxx" can be: RAM, CPU, VM, Disk or Port.
If this is the case, the quotas must be increased. In order to check your quotas and increase them, please follow this tutorial:
Increasing Public Cloud quotas.
Via Pulumi
"Provider is missing a required configuration key"
If you encounter the following error, it means you forgot to export the needed OVHcloud environment variables.
$ pulumi up
Previewing update (dev)
View in Browser (Ctrl+O): https://app.pulumi.com/scraly/pulumi_ovh_kube/dev/previews/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
Type Name Plan Info
+ pulumi:pulumi:Stack pulumi_ovh_kube-dev create 1 message
└─ pulumi:providers:ovh default_github_/api.github.com/ovh/pulumi-ovh 1 error
Diagnostics:
pulumi:providers:ovh (default_github_/api.github.com/ovh/pulumi-ovh):
error: pulumi:providers:ovh resource 'default_github_/api.github.com/ovh/pulumi-ovh' has a problem: Provider is missing a required configuration key, try `pulumi config set ovh:endpoint`: The OVH API endpoint to target (ex: "ovh-eu").
pulumi:pulumi:Stack (pulumi_ovh_kube-dev):
2023/08/10 07:04:39 {0xc0001e25b0}
The solution is to export the missing required configuration:
export OVH_ENDPOINT="ovh-eu"
export OVH_APPLICATION_KEY="xxx"
export OVH_APPLICATION_SECRET="xxx"
export OVH_CONSUMER_KEY="xxx"
Info
Replace xxx by the correct values and ovh-eu with the correct endpoint.
"Node pool name xxx is invalid, only lowercase characters, digits and '-' are accepted"
Have you defined the node pool you want to create? If so, it's time to enter the pulumi up command.
Type Name Status Info
+ pulumi:pulumi:Stack pulumi_ovh_kube-dev **creating failed** 1 error
+ ├─ ovh:CloudProject:Kube my_desired_cluster created (222s)
+ └─ ovh:CloudProject:KubeNodePool my_desired_pool **creating failed** 1 error
Diagnostics:
pulumi:pulumi:Stack (pulumi_ovh_kube-dev):
error: update failed
ovh:CloudProject:KubeNodePool (my_desired_pool):
error: 1 error occurred:
* calling Post /cloud/project/xxxxxxxxxx/kube/xxxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/nodepool with params my_desired_pool(b2-7): 1/1/3:
OVHcloud API error (status code 400): Client::BadRequest: "[InvalidDataError] 400: Node pool name my_desired_pool is invalid, only lowercase characters, digits and '-' are accepted (regex: '^[a-z0-9]([-a-z0-9]*[a-z0-9])?$') (request ID: xxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx)" (X-OVH-Query-Id: EU.ext-3.xxxxxxxx.xxxxx.xxxxxxxxxxxxxxxxx)
Resources:
+ 2 created
Duration: 3m47s
If you get this error message, the issue is that you named the flavor or the node pool with an invalid character: "_" or ".".
The API don't support these characters so that's the reason why you obtained this error message.
In order to fix this, change the flavor name and/or the pool name to a correct one, for example in Go:
nodePool, err := cloudproject.NewKubeNodePool(ctx, "my-desired-pool", &cloudproject.KubeNodePoolArgs{
ServiceName: pulumi.String(serviceName),
KubeId: myKube.ID(),
Name: pulumi.String("my-desired-pool"),
DesiredNodes: pulumi.Int(1),
MaxNodes: pulumi.Int(3),
MinNodes: pulumi.Int(1),
FlavorName: pulumi.String("b2-7"),
})
"not enough xxx quotas"
By default, the Public Cloud projects as well as the resources total (RAM, CPU, disk space, number of instances, etc.) you can use are limited for security reasons.
When you create a new Kubernetes Node Pool, if you run out of resources in your available quota, the Nodes might be in error.
You may get the following error message: "not enough xxx quotas".
"xxx" can be RAM, CPU, VM, Disk or Port.
If this is the case, the quotas must be increased.
In order to check your quotas and increase them, please follow this tutorial:
Increasing Public Cloud quotas
Destroy (cleanup)
Via Terraform
If you want to easily destroy created resources, you can use terraform destroy command.
$ terraform destroy
ovh_cloud_project_kube.my_kube_cluster: Refreshing state... [id=7628f0e1-a082-4ec5-98df-2aba283ca3f3]
ovh_cloud_project_kube_nodepool.node_pool: Refreshing state... [id=ebfa7726-d50c-4fbc-8b24-e722a1ff28f5]
An execution plan has been generated and is shown below.
Resource actions are indicated with the following symbols:
- destroy
Terraform will perform the following actions:
# ovh_cloud_project_kube.my_kube_cluster will be destroyed
- resource "ovh_cloud_project_kube" "my_kube_cluster" {
- control_plane_is_up_to_date = true -> null
- id = "7628f0e1-a082-4ec5-98df-2aba283ca3f3" -> null
- is_up_to_date = true -> null
- kubeconfig = (sensitive value)
- name = "my_kube_cluster" -> null
- next_upgrade_versions = [] -> null
- nodes_url = "z2tj25.nodes.c1.gra7.k8s.ovh.net" -> null
- region = "GRA7" -> null
- service_name = "<your_service_name>" -> null
- status = "READY" -> null
- update_policy = "ALWAYS_UPDATE" -> null
- url = "xxxxxx.c1.gra7.k8s.ovh.net" -> null
- version = "1.22" -> null
}
# ovh_cloud_project_kube_nodepool.node_pool will be destroyed
- resource "ovh_cloud_project_kube_nodepool" "node_pool" {
- anti_affinity = false -> null
- desired_nodes = 3 -> null
- flavor_name = "b2-7" -> null
- id = "ebfa7726-d50c-4fbc-8b24-e722a1ff28f5" -> null
- kube_id = "7628f0e1-a082-4ec5-98df-2aba283ca3f3" -> null
- max_nodes = 3 -> null
- min_nodes = 3 -> null
- monthly_billed = false -> null
- name = "my-pool" -> null
- service_name = "<your_service_name>" -> null
- status = "READY" -> null
}
Plan: 0 to add, 0 to change, 2 to destroy.
Do you really want to destroy all resources?
Terraform will destroy all your managed infrastructure, as shown above.
There is no undo. Only 'yes' will be accepted to confirm.
Enter a value: yes
ovh_cloud_project_kube_nodepool.node_pool: Destroying... [id=ebfa7726-d50c-4fbc-8b24-e722a1ff28f5]
ovh_cloud_project_kube_nodepool.node_pool: Still destroying... [id=ebfa7726-d50c-4fbc-8b24-e722a1ff28f5, 10s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still destroying... [id=ebfa7726-d50c-4fbc-8b24-e722a1ff28f5, 20s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still destroying... [id=ebfa7726-d50c-4fbc-8b24-e722a1ff28f5, 30s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still destroying... [id=ebfa7726-d50c-4fbc-8b24-e722a1ff28f5, 40s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still destroying... [id=ebfa7726-d50c-4fbc-8b24-e722a1ff28f5, 50s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Still destroying... [id=ebfa7726-d50c-4fbc-8b24-e722a1ff28f5, 1m0s elapsed]
ovh_cloud_project_kube_nodepool.node_pool: Destruction complete after 1m2s
ovh_cloud_project_kube.my_kube_cluster: Destroying... [id=7628f0e1-a082-4ec5-98df-2aba283ca3f3]
ovh_cloud_project_kube.my_kube_cluster: Still destroying... [id=7628f0e1-a082-4ec5-98df-2aba283ca3f3, 10s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still destroying... [id=7628f0e1-a082-4ec5-98df-2aba283ca3f3, 20s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Still destroying... [id=7628f0e1-a082-4ec5-98df-2aba283ca3f3, 30s elapsed]
ovh_cloud_project_kube.my_kube_cluster: Destruction complete after 33s
Destroy complete! Resources: 2 destroyed.
Perfect, your Kubernetes cluster and associated resources (Nodes, Pods...) have been correctly destroyed!
Via CDK for Terraform
If you want to easily destroy created resources, you can use the cdktf destroy command.
$ cdktf destroy
ovhcloud Initializing the backend...
ovhcloud Initializing provider plugins...
- Reusing previous version of hashicorp/local from the dependency lock file
ovhcloud - Reusing previous version of ovh/ovh from the dependency lock file
ovhcloud - Using previously-installed hashicorp/local v2.5.1
ovhcloud
ovhcloud - Using previously-installed ovh/ovh v0.37.0
ovhcloud Terraform has been successfully initialized!
You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.
If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Refreshing state... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Refreshing state... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx]
ovhcloud local_file.kubeconfig: Refreshing state... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx]
ovhcloud Terraform used the selected providers to generate the following execution plan.
Resource actions are indicated with the following symbols:
- destroy
Terraform will perform the following actions:
ovhcloud # local_file.kubeconfig (kubeconfig) will be destroyed
- resource "local_file" "kubeconfig" {
- content = (sensitive value) -> null
- content_base64sha256 = "sk91kA2+oGCg2PmlfkpGRKdY2Zo4PCRHx3DMywcUksQ=" -> null
- content_base64sha512 = "1lJHwzWN5BY+dnXW/eQXg+7su89rAOakt8gSN0cK1obxQV8B0ElKPDkHWXXcsM0aUpQKCHRBSvpumKpapfYkTw==" -> null
- content_md5 = "2f46756dbc613886932627a666b21c5b" -> null
- content_sha1 = "82cc5e86199e7c7e80a9797fd7ccb641898cd9c7" -> null
- content_sha256 = "b24f75900dbea060a0d8f9a57e4a4644a758d99a383c2447c770cccb071492c4" -> null
- content_sha512 = "d65247c3358de4163e7675d6fde41783eeecbbcf6b00e6a4b7c81237470ad686f1415f01d0494a3c39075975dcb0cd1a52940a0874414afa6e98aa5aa5f6244f" -> null
- directory_permission = "0777" -> null
- file_permission = "0644" -> null
- filename = "/workspace/guide/ovhcloud-kube/kubeconfig.yaml" -> null
- id = "xxxxxxxxxxxxxxxxxxx" -> null
}
# ovh_cloud_project_kube.my_desired_cluster (my_desired_cluster) will be destroyed
- resource "ovh_cloud_project_kube" "my_desired_cluster" {
- control_plane_is_up_to_date = true -> null
- id = "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx" -> null
- is_up_to_date = true -> null
- kube_proxy_mode = "iptables" -> null
- kubeconfig = (sensitive value) -> null
- kubeconfig_attributes = (sensitive value) -> null
- name = "my_desired_cluster" -> null
- next_upgrade_versions = [] -> null
- nodes_url = "xxxxxx.nodes.c2.gra.k8s.ovh.net" -> null
- region = "GRA5" -> null
- service_name = "xxxxxxxxxxxxxxxxxxxxxxxxxxxx" -> null
- status = "READY" -> null
- update_policy = "ALWAYS_UPDATE" -> null
- url = "xxxxxx.c2.gra.k8s.ovh.net" -> null
- version = "1.28" -> null
- customization_apiserver {
- admissionplugins {
- disabled = [] -> null
- enabled = [
- "AlwaysPullImages",
- "NodeRestriction",
] -> null
}
}
}
# ovh_cloud_project_kube_nodepool.my-pool (my-pool) will be destroyed
- resource "ovh_cloud_project_kube_nodepool" "my-pool" {
- anti_affinity = false -> null
- autoscale = false -> null
- autoscaling_scale_down_unneeded_time_seconds = 600 -> null
- autoscaling_scale_down_unready_time_seconds = 1200 -> null
- autoscaling_scale_down_utilization_threshold = 0.5 -> null
- available_nodes = 1 -> null
ovhcloud - created_at = "2024-03-14T10:56:35Z" -> null
- current_nodes = 1 -> null
- desired_nodes = 1 -> null
- flavor = "b2-7" -> null
- flavor_name = "b2-7" -> null
- id = "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx" -> null
- kube_id = "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx" -> null
- max_nodes = 3 -> null
- min_nodes = 1 -> null
- monthly_billed = false -> null
- name = "my-pool" -> null
- project_id = "xxxxxxxxxxxxxxxxxxxxxxxxxxxx" -> null
- service_name = "xxxxxxxxxxxxxxxxxxxxxxxxxxxx" -> null
- size_status = "CAPACITY_OK" -> null
- status = "READY" -> null
- up_to_date_nodes = 1 -> null
- updated_at = "2024-03-14T11:02:04Z" -> null
}
Plan: 0 to add, 0 to change, 3 to destroy.
Changes to Outputs:
- cluster_version = "1.28" -> null
- nodePoolID = "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx" -> null
Do you really want to destroy all resources?
Terraform will destroy all your managed infrastructure, as shown above.
There is no undo. Only 'yes' will be accepted to confirm.
ovhcloud Enter a value: yes
ovhcloud local_file.kubeconfig: Destroying... [id=xxxxxxxxxxxxxxxxxxx]
ovhcloud local_file.kubeconfig: Destruction complete after 0s
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 10s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 20s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 30s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 40s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 50s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 1m0s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 1m10s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 1m20s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 1m30s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 1m40s elapsed]
ovhcloud ovh_cloud_project_kube_nodepool.my-pool: Destruction complete after 1m46s
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 10s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 20s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 30s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 40s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 50s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 1m0s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Still destroying... [id=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx, 1m10s elapsed]
ovhcloud ovh_cloud_project_kube.my_desired_cluster: Destruction complete after 1m16s
ovhcloud
Destroy complete! Resources: 3 destroyed.
Your Kubernetes cluster and associated resources (Nodes, Pods...) have been correctly destroyed!
Via Pulumi
If you want to easily destroy created resources, you can use the pulumi destroy command.
$ pulumi destroy
Previewing destroy (dev)
View in Browser (Ctrl+O): https://app.pulumi.com/scraly/pulumi_ovh_kube/dev/previews/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
Type Name Plan
- pulumi:pulumi:Stack pulumi_ovh_kube-dev delete
- ├─ ovh:CloudProject:KubeNodePool my-desired-pool delete
- └─ ovh:CloudProject:Kube my_desired_cluster delete
Outputs:
- kubeconfig: [secret]
- nodePoolID: "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
Resources:
- 3 to delete
Do you want to perform this destroy? yes
Destroying (dev)
View in Browser (Ctrl+O): https://app.pulumi.com/scraly/pulumi_ovh_kube/dev/updates/2
Type Name Status
pulumi:pulumi:Stack pulumi_ovh_kube-dev
- ├─ ovh:CloudProject:KubeNodePool my-desired-pool deleted (66s)
- └─ ovh:CloudProject:Kube my_desired_cluster deleted (96s)
Outputs:
- kubeconfig: [secret]
- nodePoolID: "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
Resources:
- 3 deleted
Duration: 2m45s
The resources in the stack have been deleted, but the history and configuration associated with the stack are still maintained.
If you want to remove the stack completely, run `pulumi stack rm dev`.
Your Kubernetes cluster and associated resources (Nodes, Pods...) have been correctly destroyed.
Go further
To have an overview of OVHcloud Managed Kubernetes service, you can go to the OVHcloud Managed Kubernetes page.
To deploy your first application on your Kubernetes cluster, we invite you to follow our guide to configuring default settings for kubectl and deploying a Hello World application.
-
If you need training or technical assistance to implement our solutions, contact your sales representative or click on this link to get a quote and ask our Professional Services experts for assisting you on your specific use case of your project.
-
Join our community of users.
