Creating a cluster

Vedi come Markdown

Find out how to create a Kubernetes cluster managed by OVHcloud using the OVHcloud Control Panel, API, CLI, Terraform, Pulumi or CDK for Terraform

Objective

The OVHcloud Managed Kubernetes service lets you deploy production-ready clusters without the operational overhead of setting them up or maintaining them. Create a cluster through the OVHcloud Control Panel, API, or CLI, or automate the process using Infrastructure as Code tools like Terraform, Pulumi or CDK for Terraform.

Requirements

A Public Cloud project in your OVHcloud account

Tip

Take advantage of reduced prices by committing to a period of 1 to 36 months on your Public Cloud resources. More information on our Savings Plans page.

OVHcloud Control Panel Access

Direct link:
Navigation path: Public Cloud > Select your project > Managed Kubernetes Service

Info

The OVHcloud API, CLI, Terraform, CDK for Terraform, and Pulumi all require OVHcloud API credentials (application_key, application_secret, consumer_key). Follow First steps with the OVHcloud APIs to generate them.

Instructions

Via OVHcloud Control Panel

Via the OVHcloud API

Via the OVHcloud CLI

Via Terraform

Via CDK for Terraform

Via Pulumi

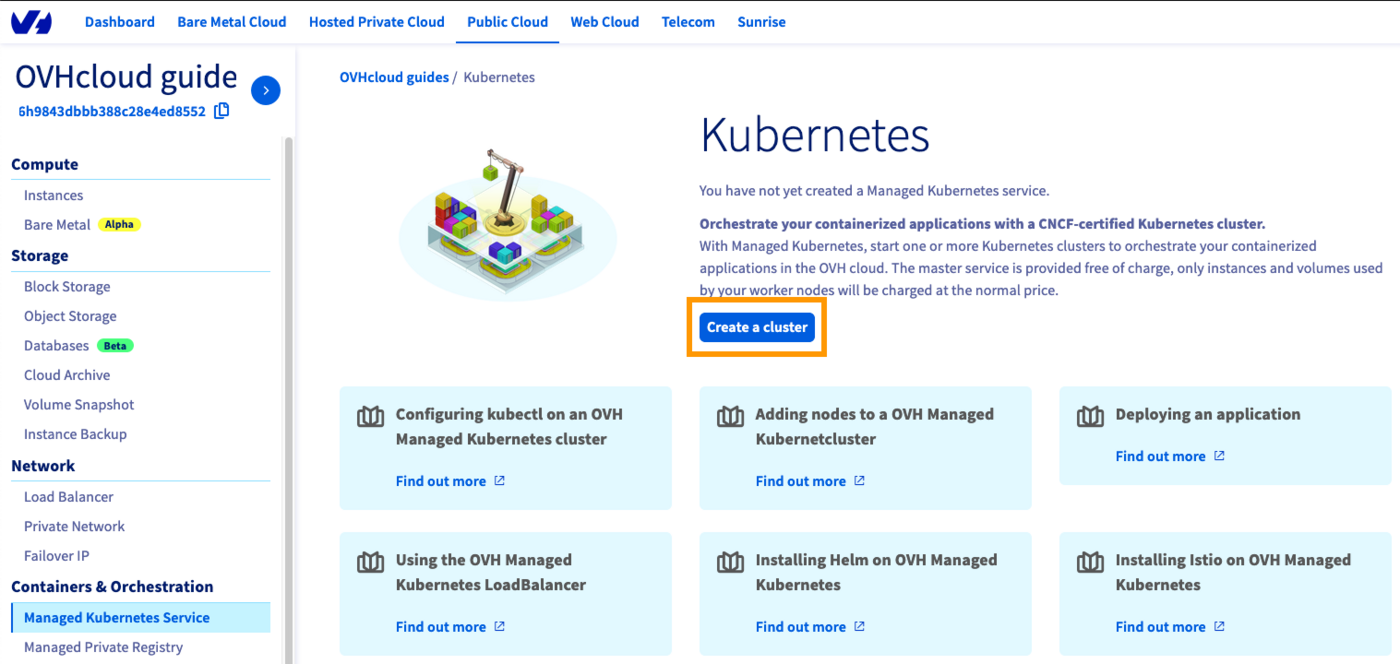

Click on Managed Kubernetes Service in the left-hand menu and click Create a cluster.

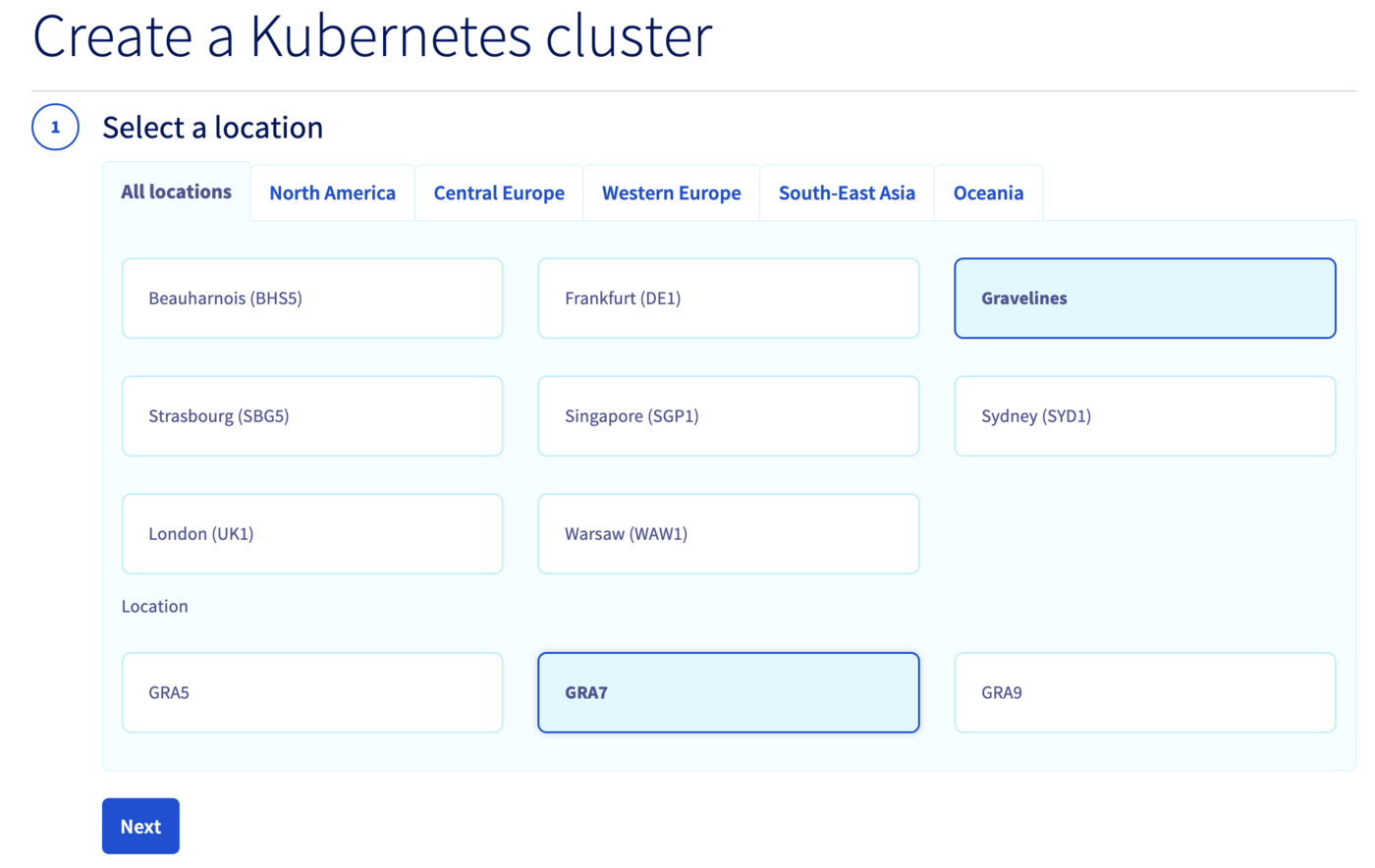

Select a location for your new cluster.

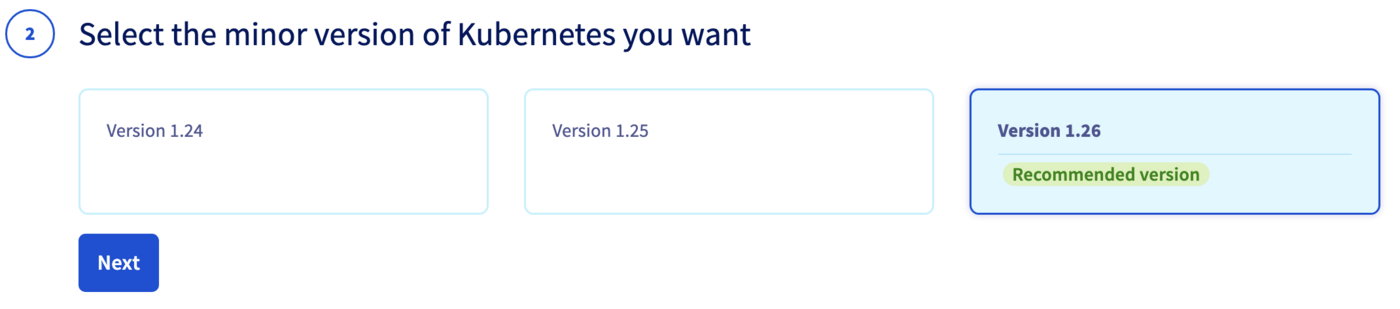

Choose the minor version of Kubernetes.

Info

We recommend always using the latest stable version. Please read our End of life / end of support page to understand our version policy.

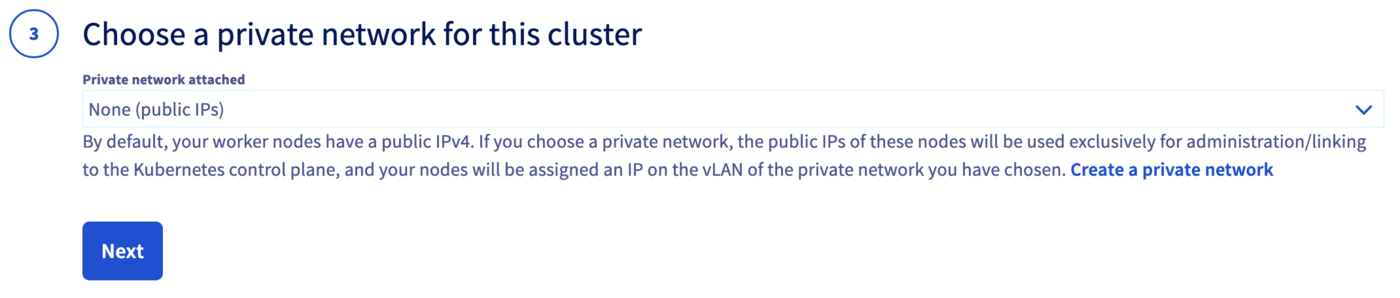

Optionally, integrate your cluster into a private network using OVHcloud vRack. Select an existing vRack network from the dropdown, or skip this step to configure private networking later. For more information, read our guide Using the vRack.

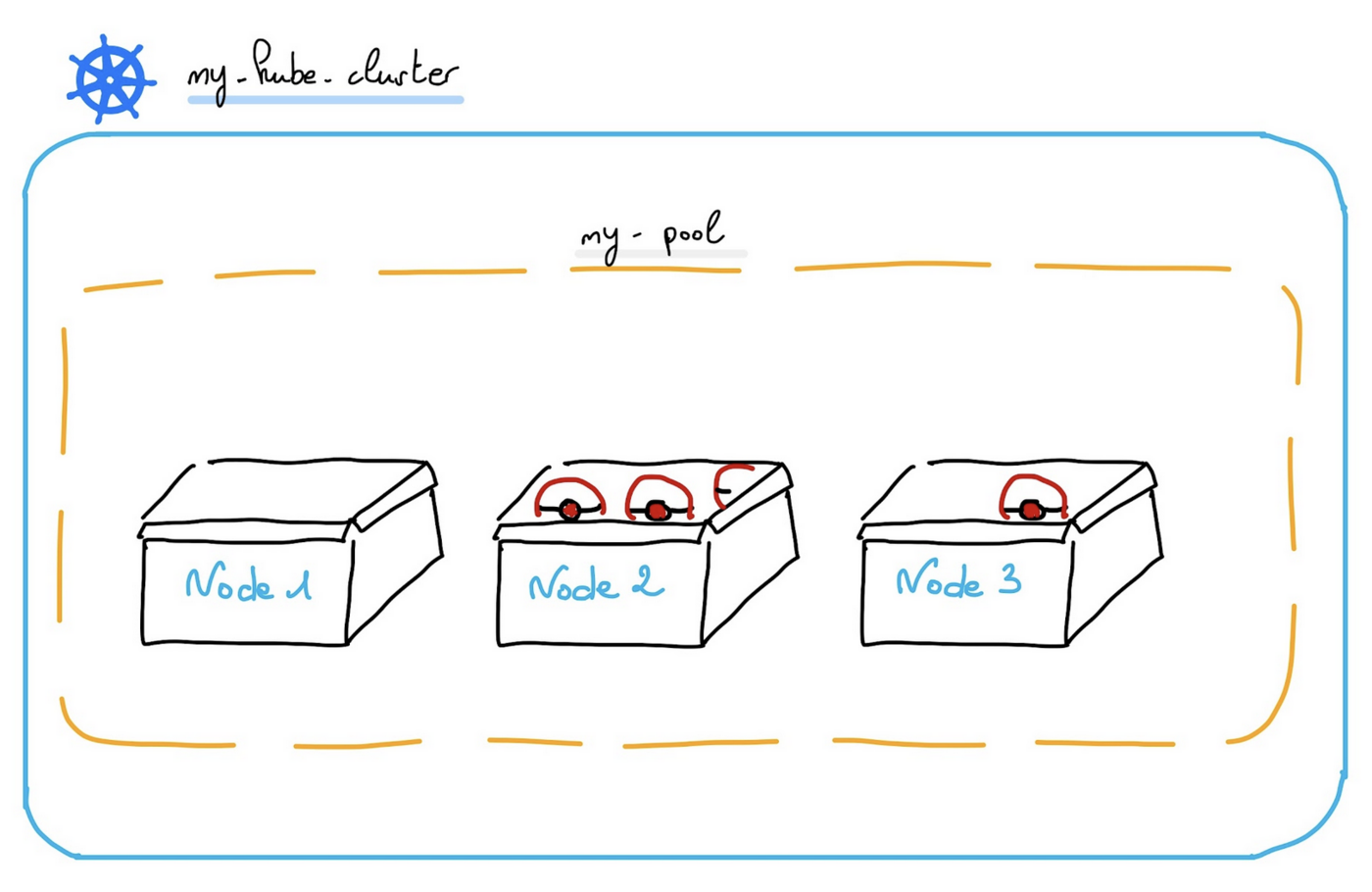

Configure the default node pool. A node pool is a group of nodes sharing the same configuration. You can add a node pool now or skip this step to add one later. Read the Managing node pools guide for more information.

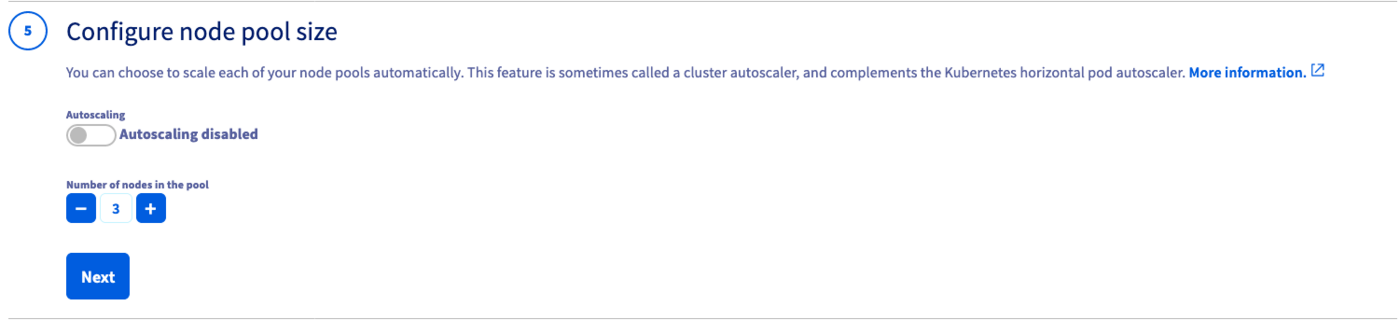

Define the size of the default node pool: enter a name for the pool, choose an instance flavor (instance type), and set the number of nodes.

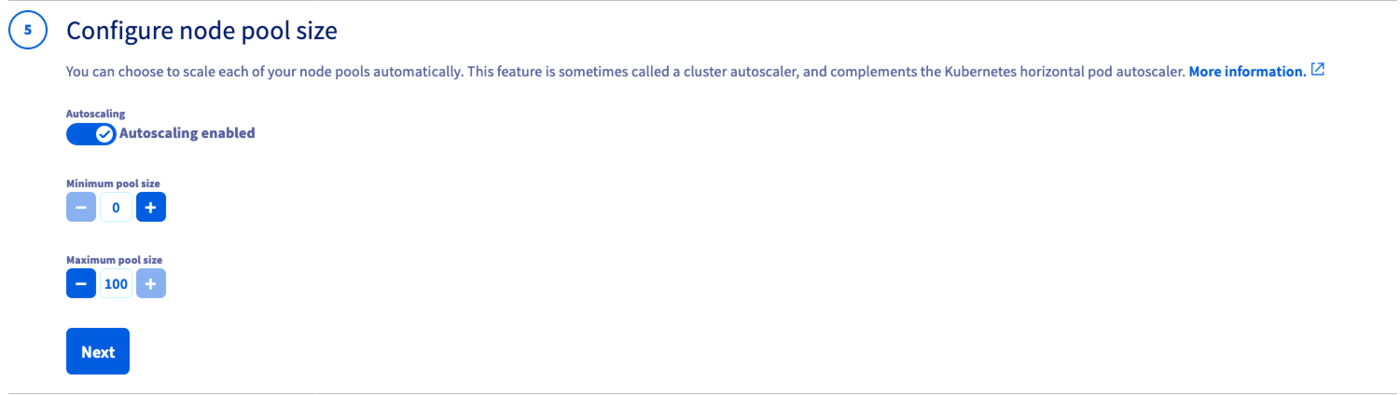

Optionally, enable Autoscaling and define the minimum and maximum pool size.

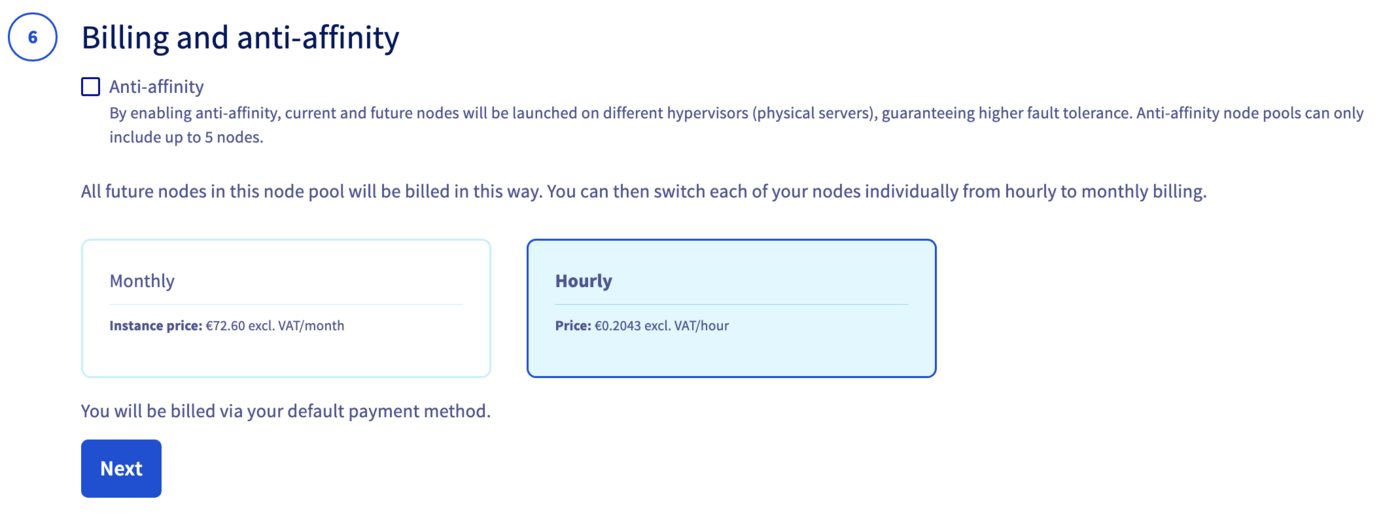

Choose the billing mode (monthly or hourly) and optionally enable anti-affinity mode.

Info

Anti-affinity distributes nodes across different hypervisors for higher fault tolerance. Anti-affinity node pools are limited to 5 nodes. Monthly billing cannot be switched to hourly afterwards.

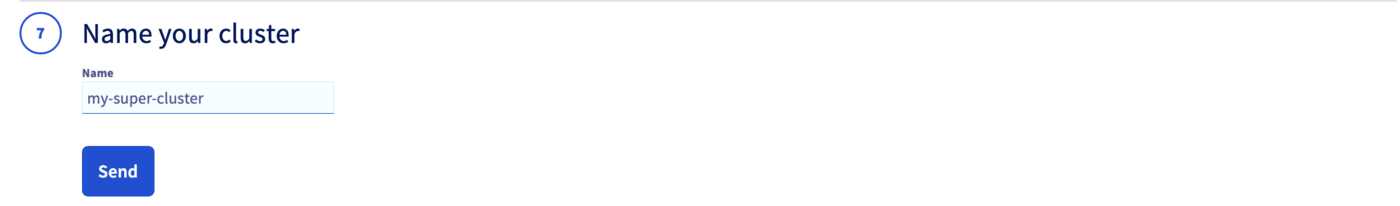

Enter a name for your cluster, review the summary, and click Send.

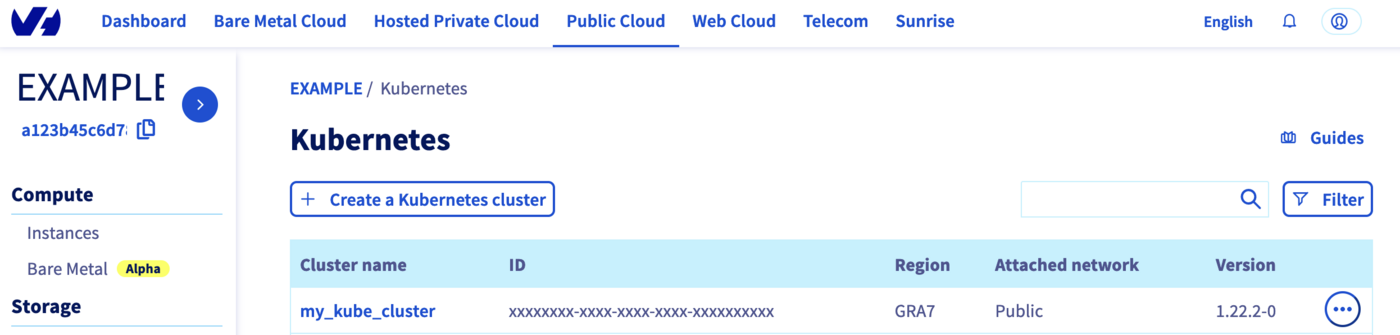

The cluster is available within a few minutes.

Warning

After a cluster is created, the region and private network ID cannot be changed.

Create the cluster:

Call the following endpoint with this body:

POST/cloud/project/{serviceName}/kube

{
  "name": "my-cluster",
  "region": "GRA7",
  "version": "1.34"
}

Info

We recommend always using the latest stable version. Please read our End of life / end of support page to understand our version policy.

Note the id in the response — you will need it to create the node pool.

Create a node pool:

Call the following endpoint with this body:

POST/cloud/project/{serviceName}/kube/{kubeId}/nodepool

{
  "name": "my-pool",
  "flavorName": "b2-7",
  "desiredNodes": 3,
  "minNodes": 3,
  "maxNodes": 3
}

Warning

Node pool names only accept lowercase characters, digits and -. Underscores and dots are not supported.

Warning

After a cluster is created, the region and private network ID cannot be changed.

Info

Install the OVHcloud CLI and configure your credentials before proceeding.

Create the cluster:

ovhcloud cloud kube create \
  --cloud-project <serviceName> \
  --name my-cluster \
  --region GRA7 \
  --version 1.34

Info

We recommend always using the latest stable version. Please read our End of life / end of support page to understand our version policy.

Note the id in the output — you will need it to create the node pool.

Create a node pool:

ovhcloud cloud kube nodepool create <kubeId> \
  --cloud-project <serviceName> \
  --name my-pool \
  --flavor-name b2-7 \
  --desired-nodes 3 \
  --min-nodes 3 \
  --max-nodes 3

Warning

Node pool names only accept lowercase characters, digits and -. Underscores and dots are not supported.

Warning

After a cluster is created, the region and private network ID cannot be changed.

Info

Install Terraform CLI (version 0.12.x minimum) before proceeding.

OVHcloud provides a Terraform provider available in the official Terraform registry.

Your Public Cloud project ID is the service_name. Retrieve it using the Copy to clipboard button in the Public Cloud section.

provider.tf:

terraform {
  required_providers {
    ovh = {
      source = "ovh/ovh"
    }
  }
}

provider "ovh" {
  endpoint           = "ovh-eu"
  application_key    = "<your_access_key>"
  application_secret = "<your_application_secret>"
  consumer_key       = "<your_consumer_key>"
}

Alternatively, use environment variables to avoid storing secrets in source code: OVH_ENDPOINT, OVH_APPLICATION_KEY, OVH_APPLICATION_SECRET, OVH_CONSUMER_KEY.

variables.tf:

variable service_name {
  type    = string
  default = "<your_service_name>"
}

ovh_kube_cluster.tf:

resource "ovh_cloud_project_kube" "my_kube_cluster" {
   service_name = "${var.service_name}"
   name         = "my_kube_cluster"
   region       = "GRA7"
   version      = "1.34"
}

resource "ovh_cloud_project_kube_nodepool" "node_pool" {
   service_name  = "${var.service_name}"
   kube_id       = ovh_cloud_project_kube.my_kube_cluster.id
   name          = "my-pool"
   flavor_name   = "b2-7"
   desired_nodes = 3
   max_nodes     = 3
   min_nodes     = 3
}

output.tf:

output "kubeconfig" {
  value     = ovh_cloud_project_kube.my_kube_cluster.kubeconfig
  sensitive = true
}

Warning

Node pool names only accept lowercase characters, digits and -. Underscores and dots cause a gzip: invalid header error.

Deploy:

terraform init && terraform apply

Info

You need kubectl, CDK for Terraform CLI and Go installed.

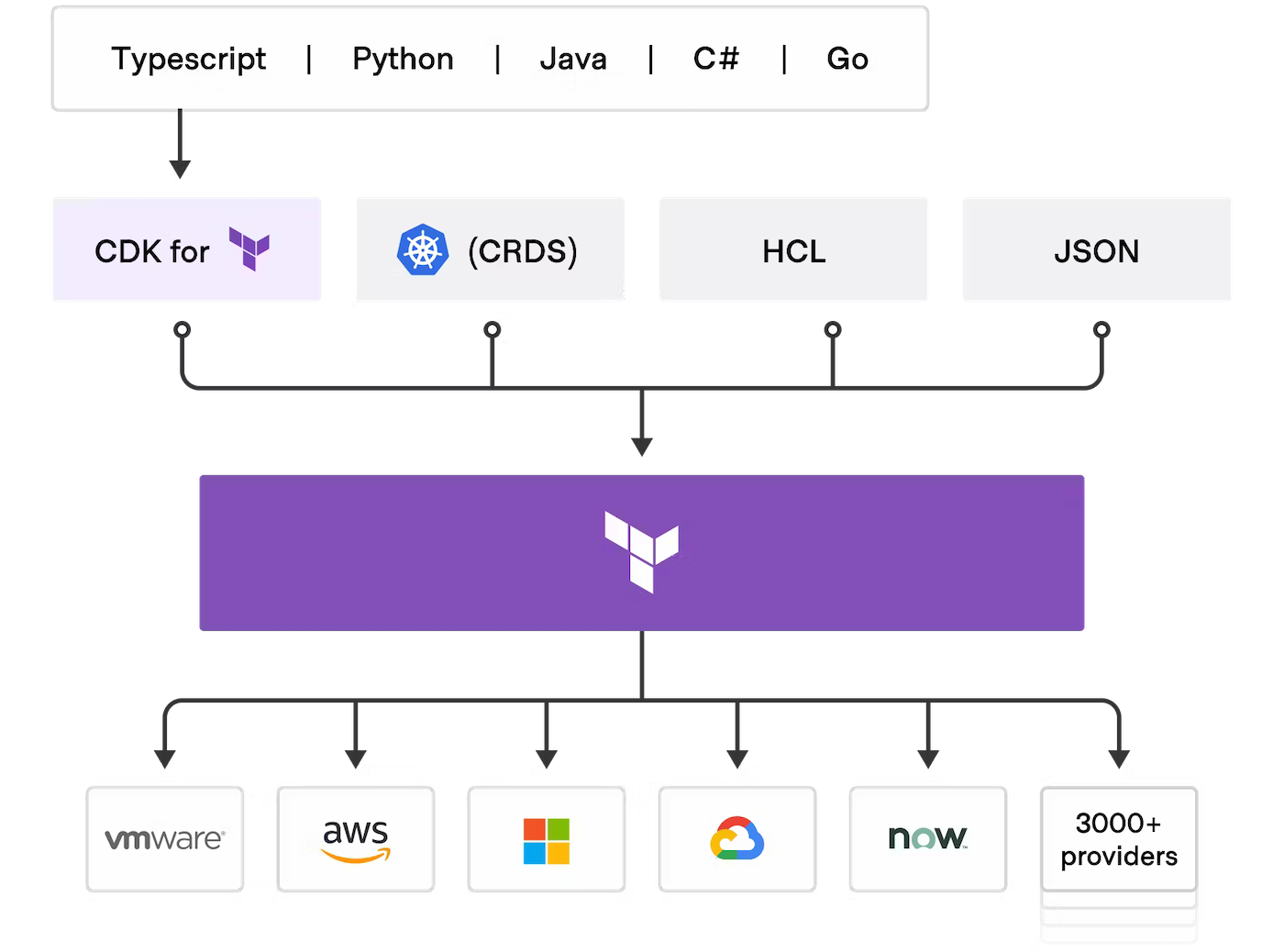

CDKTF translates Go code into Terraform HCL and uses the OVHcloud Terraform provider. Set the required credentials as environment variables:

export OVH_ENDPOINT="ovh-eu"
export OVH_APPLICATION_KEY="xxx"
export OVH_APPLICATION_SECRET="xxx"
export OVH_CONSUMER_KEY="xxx"
export OVH_CLOUD_PROJECT_SERVICE="xxx"

Initialize the project:

mkdir ovhcloud-kube && cd ovhcloud-kube
cdktf init --template=go --providers="ovh/ovh@~>0.37.0" "hashicorp/local" --providers-force-local --local --project-name=ovhcloud-kube

Edit main.go:

package main

import (
    "os"
    "path"

    "cdk.tf/go/stack/generated/hashicorp/local/file"
    local "cdk.tf/go/stack/generated/hashicorp/local/provider"
    "cdk.tf/go/stack/generated/ovh/ovh/cloudprojectkube"
    "cdk.tf/go/stack/generated/ovh/ovh/cloudprojectkubenodepool"
    ovh "cdk.tf/go/stack/generated/ovh/ovh/provider"
    "github.com/aws/constructs-go/constructs/v10"
    "github.com/aws/jsii-runtime-go"
    "github.com/hashicorp/terraform-cdk-go/cdktf"
)

func NewMyStack(scope constructs.Construct, id string) cdktf.TerraformStack {
    stack := cdktf.NewTerraformStack(scope, &id)

    ovh.NewOvhProvider(stack, jsii.String("ovh"), &ovh.OvhProviderConfig{
        Endpoint: jsii.String("ovh-eu"),
    })
    local.NewLocalProvider(stack, jsii.String("local"), &local.LocalProviderConfig{})

    serviceName := os.Getenv("OVH_CLOUD_PROJECT_SERVICE")

    kube := cloudprojectkube.NewCloudProjectKube(stack, jsii.String("my_desired_cluster"), &cloudprojectkube.CloudProjectKubeConfig{
        ServiceName: jsii.String(serviceName),
        Name:        jsii.String("my_desired_cluster"),
        Region:      jsii.String("GRA5"),
    })

    cdktf.NewTerraformOutput(stack, jsii.String("cluster_version"), &cdktf.TerraformOutputConfig{
        Value: kube.Version(),
    })

    pwd, _ := os.Getwd()
    file.NewFile(stack, jsii.String("kubeconfig"), &file.FileConfig{
        Filename:       jsii.String(path.Join(pwd, "kubeconfig.yaml")),
        Content:        kube.Kubeconfig(),
        FilePermission: jsii.String("0644"),
    })

    nodePool := cloudprojectkubenodepool.NewCloudProjectKubeNodepool(stack, jsii.String("my-pool"), &cloudprojectkubenodepool.CloudProjectKubeNodepoolConfig{
        ServiceName:  kube.ServiceName(),
        KubeId:       kube.Id(),
        Name:         jsii.String("my-pool"),
        DesiredNodes: jsii.Number(1),
        MaxNodes:     jsii.Number(3),
        MinNodes:     jsii.Number(1),
        FlavorName:   jsii.String("b2-7"),
    })

    cdktf.NewTerraformOutput(stack, jsii.String("nodePoolID"), &cdktf.TerraformOutputConfig{
        Value: nodePool.Id(),
    })

    return stack
}

func main() {
    app := cdktf.NewApp(nil)
    NewMyStack(app, "ovhcloud")
    app.Synth()
}

Deploy:

cdktf deploy

Info

You need Pulumi CLI, a Pulumi account with an access token, and kubectl installed.

The OVH Pulumi provider supports Go, Python, Node.js/TypeScript, C# and Java. See examples.

Set credentials as environment variables:

export OVH_ENDPOINT="ovh-eu"
export OVH_APPLICATION_KEY="xxx"
export OVH_APPLICATION_SECRET="xxx"
export OVH_CONSUMER_KEY="xxx"

Create and initialize the project:

mkdir pulumi_ovh_kube && cd pulumi_ovh_kube
pulumi new go -y
go get github.com/ovh/pulumi-ovh/sdk/go/...

Edit Pulumi.yaml to add the service name:

config:
 serviceName: <your-service-name>

Edit main.go:

package main

import (
    "github.com/pulumi/pulumi/sdk/v3/go/pulumi"
    "github.com/pulumi/pulumi/sdk/v3/go/pulumi/config"
    "github.com/ovh/pulumi-ovh/sdk/go/ovh/cloudproject"
)

func main() {
    pulumi.Run(func(ctx *pulumi.Context) error {
        serviceName := config.Require(ctx, "serviceName")

        myKube, err := cloudproject.NewKube(ctx, "my_desired_cluster", &cloudproject.KubeArgs{
            ServiceName: pulumi.String(serviceName),
            Name:        pulumi.String("my_desired_cluster"),
            Region:      pulumi.String("GRA5"),
        })
        if err != nil {
            return err
        }

        ctx.Export("kubeconfig", pulumi.ToSecret(myKube.Kubeconfig))

        nodePool, err := cloudproject.NewKubeNodePool(ctx, "my-desired-pool", &cloudproject.KubeNodePoolArgs{
            ServiceName:  pulumi.String(serviceName),
            KubeId:       myKube.ID(),
            Name:         pulumi.String("my-desired-pool"),
            DesiredNodes: pulumi.Int(1),
            MaxNodes:     pulumi.Int(3),
            MinNodes:     pulumi.Int(1),
            FlavorName:   pulumi.String("b2-7"),
        })
        if err != nil {
            return err
        }

        ctx.Export("nodePoolID", nodePool.ID())
        return nil
    })
}

Run go mod tidy then deploy:

pulumi up

Connect to the cluster

Via OVHcloud Control Panel

Via the OVHcloud API

Via the OVHcloud CLI

Via Terraform

Via CDK for Terraform

Via Pulumi

In your cluster page, open the Service tab and download the kubectl configuration file to connect to your cluster.

Call the following endpoint to retrieve the kubeconfig content and save it to a file:

POST/cloud/project/{serviceName}/kube/{kubeId}/kubeconfig

kubectl --kubeconfig=kubeconfig.yaml get nodes

Known issues

"not enough xxx quotas"

By default, Public Cloud resource quotas (RAM, CPU, disk space, number of instances, etc.) are limited for security reasons. If you run out of resources when creating a node pool, follow Increasing Public Cloud quotas to increase them.

Via Terraform

Via Pulumi

"gzip: invalid header"

This error occurs when a node pool name or flavor name contains _ or .. Only lowercase characters, digits and - are accepted:

name        = "my-pool"
flavor_name = "b2-7"

"Provider is missing a required configuration key"

You forgot to export the required OVHcloud environment variables:

export OVH_ENDPOINT="ovh-eu"
export OVH_APPLICATION_KEY="xxx"
export OVH_APPLICATION_SECRET="xxx"
export OVH_CONSUMER_KEY="xxx"

"Node pool name xxx is invalid"

Only lowercase characters, digits and - are accepted in node pool names. Rename your node pool using a valid value:

Name: pulumi.String("my-desired-pool"),

Destroy (cleanup)

Via OVHcloud Control Panel

Via the OVHcloud API

Via the OVHcloud CLI

Via Terraform

Via CDK for Terraform

Via Pulumi

In the Managed Kubernetes Service section, click the ... button next to your cluster and select Delete.

Go further

To have an overview of OVHcloud Managed Kubernetes service, you can go to the OVHcloud Managed Kubernetes page.

To deploy your first application on your Kubernetes cluster, we invite you to follow our guide to configuring default settings for kubectl and deploying a Hello World application.

For training or technical assistance implementing our solutions, contact your sales representative or visit our Professional Services page to request a quote and have your project analysed by our experts.
