Objective

The purpose of this guide is to provide step-by-step instructions to connect multiple on-premises Zerto deployments to a Managed vSphere instance. By following this guide, users will be able to establish secure multi-site replication, ensure disaster recovery readiness, and manage data protection across different sites.

Find out how to set up Zerto Virtual Replication between your Hosted Private Cloud platforms.

Requirements

• Managed vSphere Setup: A Managed vSphere environment with Zerto already deployed.
• On-Premises Zerto: Zerto is installed and configured on your local infrastructure.
• VPN Information: All necessary VPN credentials, IP addresses, and keys for both on-premises and Managed vSphere environments.

---

OVHcloud Control Panel Access

• Direct link: Managed VMware vSphere
• Navigation path: Hosted Private Cloud > Managed VMware vSphere > Select your vSphere service

---

Instructions

1 - Access Zerto Manager on Managed vSphere

• Select the infrastructure concerned.
• Navigate to the Datacenters tab and select the datacenter.
• Navigate to the Zerto tab.

2 - Add your On-Premises Zerto Site

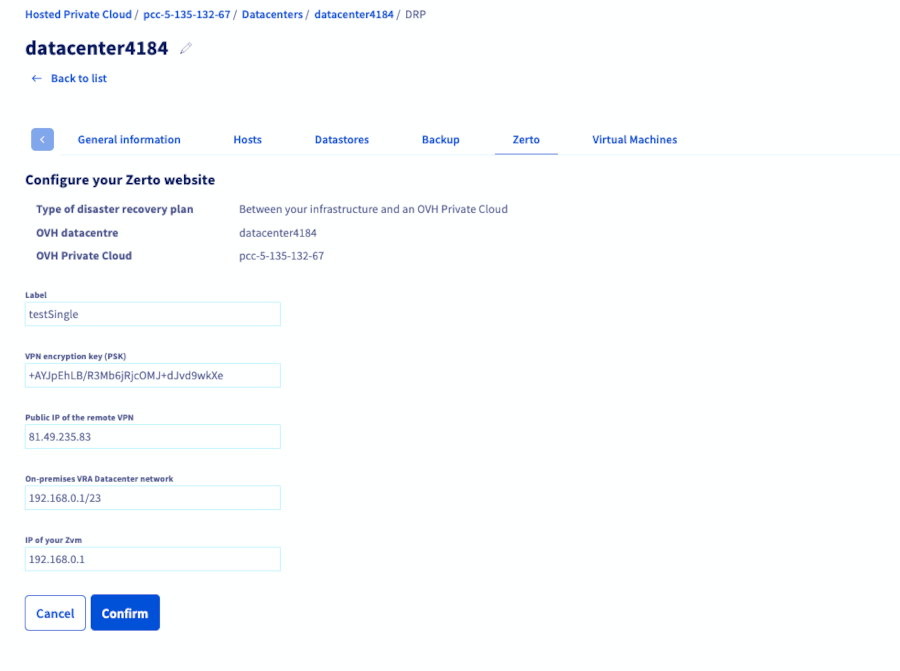

Click the Add a site button, enter your VPN information (IP address and encryption key), and enter the details of your on-premises Zerto deployment. Refer to our example screenshot for guidance:

3 - Start VPN Configuration

Submit your information. The Managed vSphere will automatically start the VPN setup, allowing secure access to your on-premises Zerto site.

4 - Let Automated Processes Run

Managed vSphere will run automated tasks to configure multi-site connectivity.

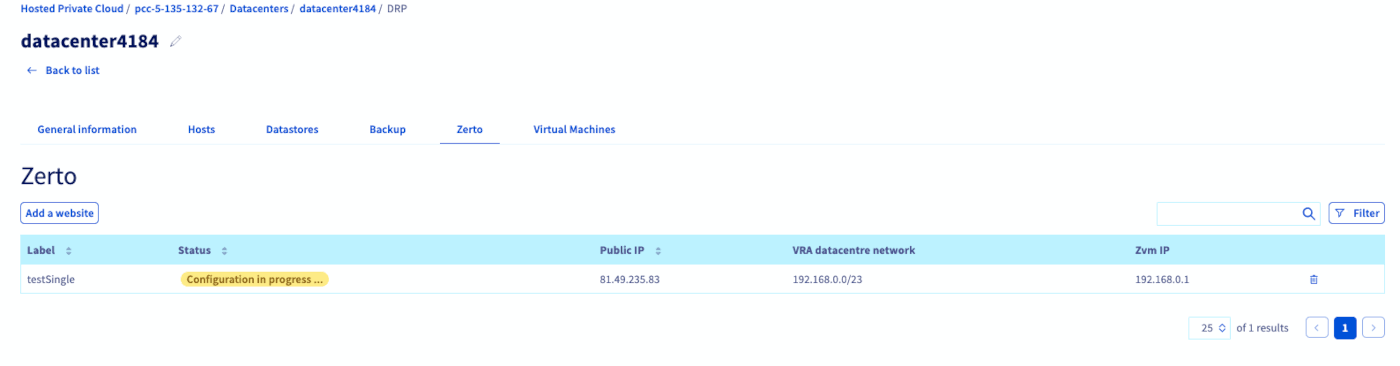

Wait until the status shows Configuration deployed.

5 - Connect the VPN

Connect your on-premises VPN to the Managed vSphere’s Zerto VPN and verify that the connection is active.

6 - Pair the Zerto Sites

• On Managed vSphere Zerto, go to Sites tab and get the token:

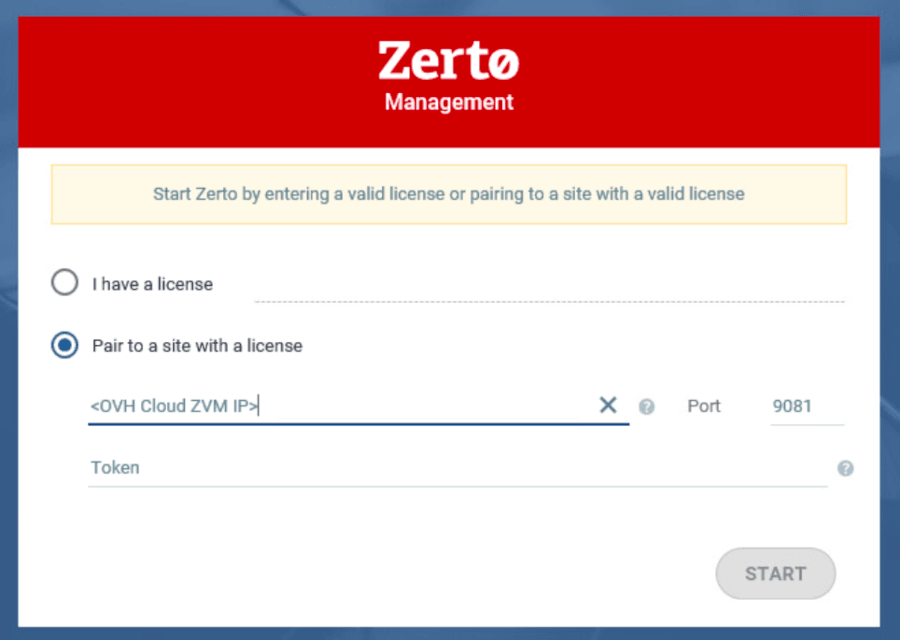

• On your on-premises Zerto, choose Pair to a site and enter the Managed vSphere Zerto IP and token:



Once paired, your multi-site replication setup is complete.

Network Diagram

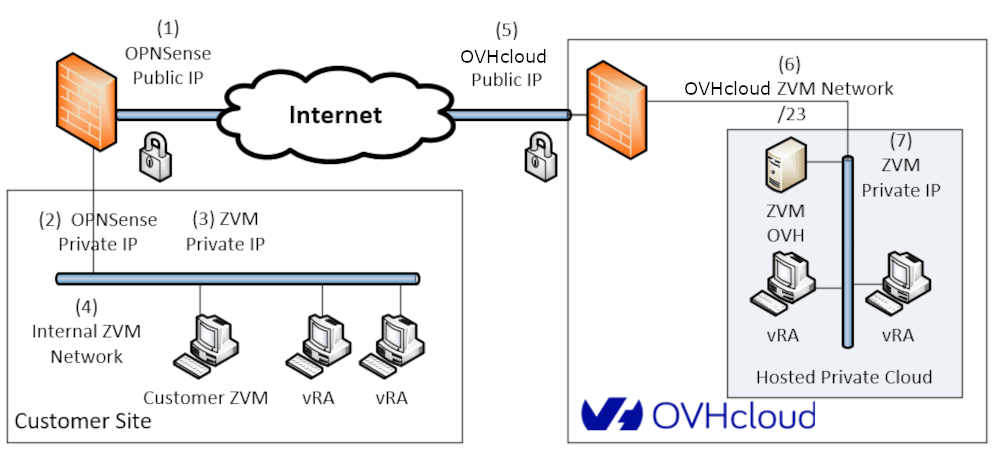

The following diagram illustrates the connectivity setup for multi-site Zerto replication between the customer site and Managed vSphere:

Diagram Explanation:

• OPNSense Public IP: The public IP of the customer firewall/router.
• OPNSense Private IP: The internal IP address of the customer firewall.
• ZVM Private IP: The internal IP of the customer Zerto Virtual Manager.
• Internal ZVM Network: The LAN connecting customer ZVM and vRAs.
• OVHcloud Public IP: The public-facing IP for the Managed vSphere.
• OVHcloud ZVM Network /23: The private network within the hosted Managed vSphere.
• ZVM Private IP (Managed vSphere): The private IP addresses of Zerto VMs (ZVM and vRAs) hosted in Managed vSphere.

This setup ensures secure VPN connectivity between on-premises Zerto and OVHcloud Managed vSphere, allowing multi-site replication and disaster recovery.

Troubleshooting Tips

• VPN issues: Check credentials, firewall and network settings.
• Token/site pairing: Verify the token, ZVM IP and Zerto license.

Security Considerations

• Use strong encryption for all VPN connections.
• Ensure secure authentication methods are in place.
• Limit access to Zerto and Managed vSphere management interfaces.
• Regularly review logs and monitor for suspicious activity.
• Keep Zerto and Managed vSphere software up to date with security patches.
