How to create a Public Cloud instance and connect to it
Objective
Public Cloud instances are easy to deploy and manage. However, being part of the OVHcloud Public Cloud ecosystem, instances offer many configuration options and can be adjusted to different use cases. The following instructions include all the necessary and optional steps to create an instance in the OVHcloud Control Panel and access it remotely.
You can then go further with your Public Cloud project according to your needs.
This guide explains how to get started with a Public Cloud instance.
Requirements
- A Public Cloud project in your OVHcloud account
- Access to the OVHcloud Control Panel
Take advantage of reduced prices by committing to a period of 1 to 36 months on your Public Cloud resources. More information on our Savings Plans page.
Instructions
If you have not created a Public Cloud project yet, start with our guide on how to create a project.
Important technical details about the OVHcloud Public Cloud are available on this guide page.
Content overview
- 1 Creating SSH keys
- 2 Importing SSH keys
- 3 Preparing the network configuration
- 4 Creating the instance
- 5 Connecting to the instance
- 6 First steps on a new instance
You need to provide a public SSH key when creating Public Cloud instances in the OVHcloud Control Panel. After the instance is created you can configure your remote access at your own discretion.
Exception: Login authentication on Windows instances requires username and password because Windows uses RDP (Remote Desktop Protocol).
Step 1: Create an SSH key set
If you already have an SSH key pair ready to use, you can skip this step.
The SSH protocol enables encrypted client-server communication. An SSH key pair consists of a public key and a private key.
- The public key is added to your Public Cloud instance (and can also be stored in the OVHcloud Control Panel).
- The private key is stored on your local device and must be secured from unauthorized access. Only client devices with the matching private key can access your instance. A user account password is not required to connect.
You have 2 options to create and manage your SSH keys:
- Command line interface of your OS (basic OpenSSH client)
- Additional software (compatible with the OpenSSH protocol) with a command line or graphical interface
Most contemporary desktop operating systems natively include the OpenSSH client which can be accessed through the system's command line application (cmd, Powershell, Terminal, etc.). If you are not familiar with using SSH keys as an authentication method, you can use the instructions in this guide to get started and create your key pair.
If you use an alternative software, refer to its user documentation. A usage example for the open-source solution PuTTY is available in our guide: How to use PuTTY.
Step 2: Import SSH keys
You can store your public SSH keys in the Public Cloud section of the OVHcloud Control Panel. This is not mandatory but makes the instance creation process more convenient.
Stored SSH keys help you to create your instances faster in the OVHcloud Control Panel. To change key pairs and add users once an instance is created, please refer to the guide on additional SSH keys.
Public SSH keys added to your OVHcloud Control Panel will be available for Public Cloud services of all regions. You can store keys encrypted with RSA, ECDSA and ED25519.
Log in to the OVHcloud Control Panel, go to the Public Cloud section and select the Public Cloud project concerned.

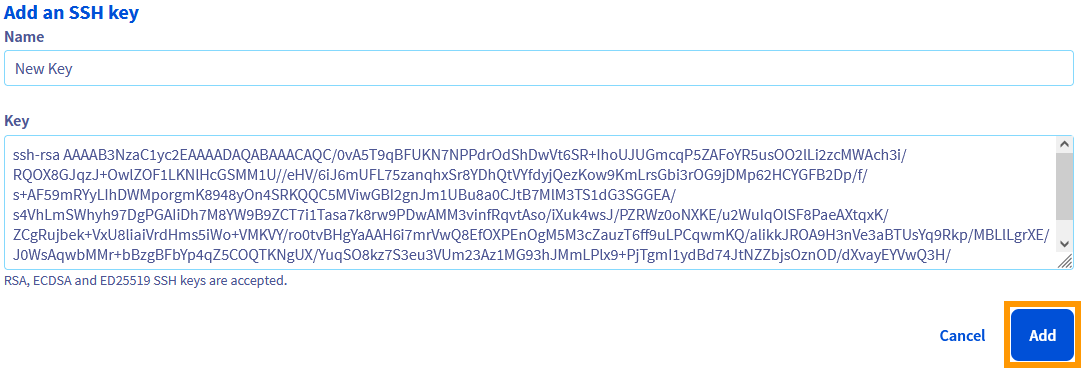

Open SSH Keys in the left-hand menu under Settings. Click on the button Add an SSH key.
In the new window, enter a name for the key. Fill in the Key field with your public key string, for example the one created in Step 1. Confirm by clicking Add.
You can now select this key in Step 4 to add it to a new instance.
Step 3: Prepare the network configuration
Before creating your instance, we recommend to consider the way the instance will be used in terms of networking.
- If you do not need to configure the instance with a private network at this time, you can proceed with step 4. You can create an instance exposed to the public internet. (See Public Mode below.)
- If the instance needs to be connected to a new private network (OVHcloud vRack), create your vRack first before continuing. You can find the details in the Public Cloud vRack guide.
Public Cloud Networking - Modes
Public Mode
Instances in Public Mode are exposed to the public internet directly via IPv4/IPv6. IP addresses cannot be modified but instances can have Additional IP addresses attached (including your own) and they can be connected to a vRack.
Private Mode
Instances in Private Mode can only be exposed to the public internet via a Gateway or a Load Balancer service and Floating IP addresses.
For more information, please consult our guides in the Public Cloud Network Services section. The Concepts guide provides an introduction to Public Cloud Networking.
Local Private Mode
Local Private Mode only applies if you create an instance in a Local Zone. They can be exposed to the public internet directly via IPv4/IPv6. Only instances in the same Local Zone can be connected via private networks. Local Zones are not compatible with vRack. In this mode, DHCP automatically provides IP addresses to your instances.
Find out more on the Local Zones web page.
Step 4: Create the instance
Log in to the OVHcloud Control Panel, go to the Public Cloud section and select the Public Cloud project concerned.

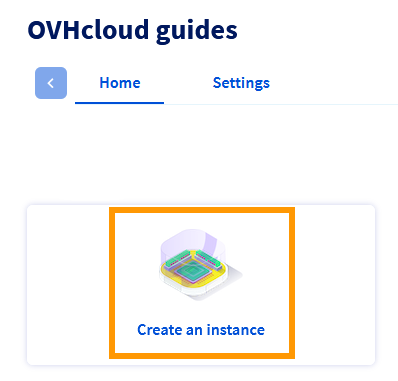

On the "Home" page, click on Create an instance.

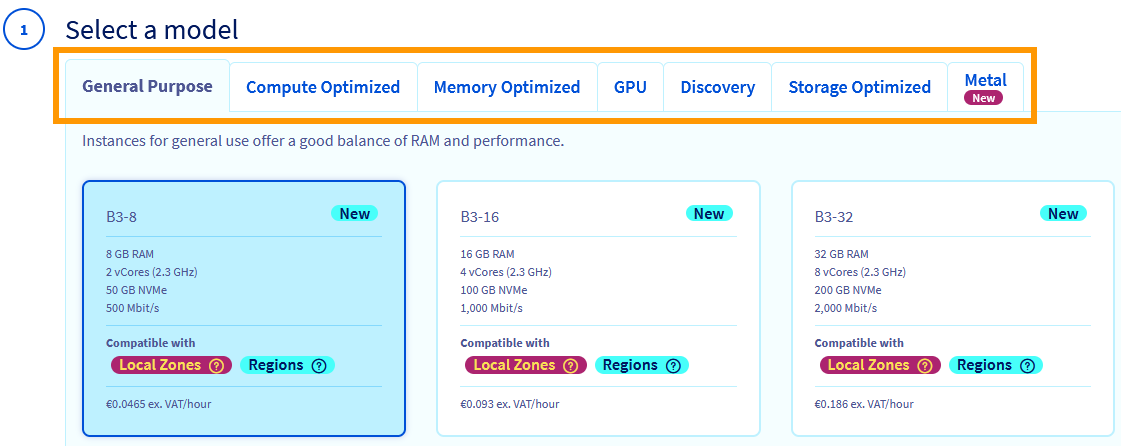

Step 4.1: Select a model
In the first step you select an instance model (might also be referred to as a "flavour") which defines the resources of the instance. Click on the tab with the key resource for your requirements to find our optimized instance models.
In the section Discovery, we offer favourably priced shared-resource instance models. These are ideal to try out the Public Cloud in general or to test a web application, for example.
Instance models of the type Metal provide dedicated physical resources.
Your Public Cloud resources total will initially be limited for cost control and security reasons. You can verify these quotas by clicking Quota & Regions in the left-hand navigation bar under Settings. Please consult the dedicated documentation for more information.
Note that you can upgrade your instance after creation to have more resources available. Switching to a smaller model however is not possible with a regular instance. You can find more information on this topic in Step 4.4 below.
Additional information
Instance model categories
Regions and Local Zones
Regions
A region is defined as a location in the world comprised of one or several data centres where OVHcloud services are hosted. You can find more information on regions, geographical division and availability of services on our region web page and our infrastructure web page.
Local Zones
Local Zones are an extension of regions that bring OVHcloud services closer to specific locations, offering reduced latency and improved performances for applications. You can find more information on the Local Zones web page and in the Local Zones capabilities documentation.

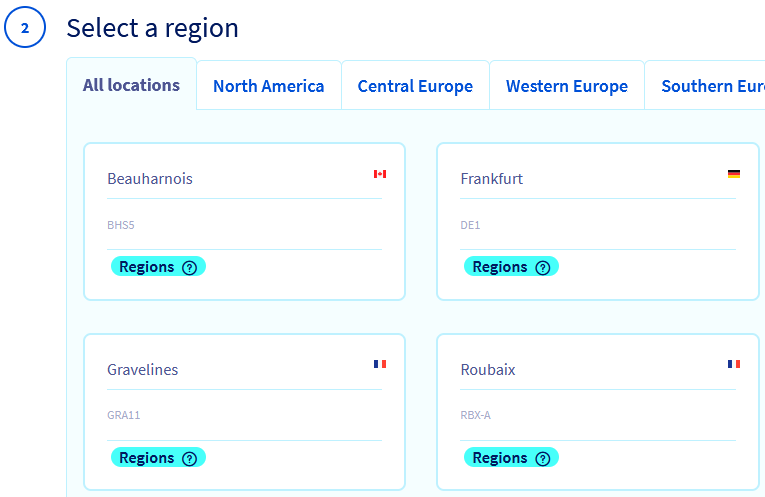

Step 4.2: Select a region
Select a region closest to your users or customers. These options might be limited, depending on the choice of model in Step 4.1. Note that if you select a Local Zone in this step, networking limitations will apply to the instance (see Step 3).
Please also refer to the information on the Local Zones web page and in the Local Zones capabilities documentation.

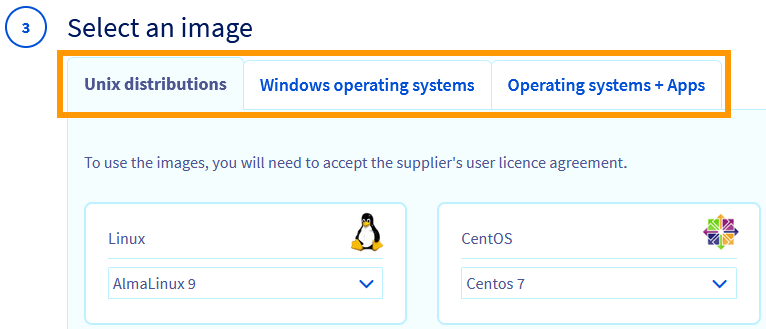

Step 4.3: Select an image
Click on the appropriate tab and select an operating system for your instance from the drop-down menus.
The images available in this step depend on the choices made in the previous steps, i.e. compatibility with the instance model and regional availability. For example, if you want to select a Windows OS and there are no options in the Windows tab, you need to modify the choices of the previous step or steps.
If you select an operating system that requires paid licensing, these costs will automatically be included in the billing of the project.
This step also requires a public SSH key to be added (Windows instances excluded). You have 2 options:
- Use a public key already stored in the OVHcloud Control Panel

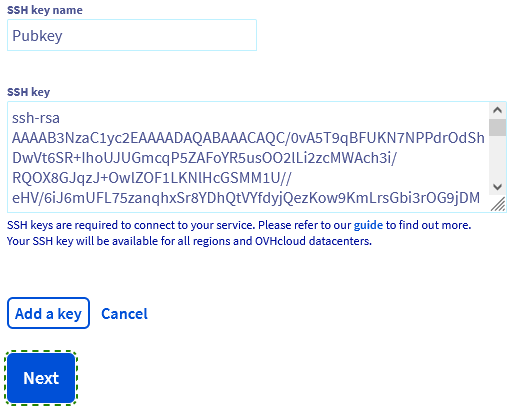

- Enter a public a key directly
Click on the tabs below to view their explanations:

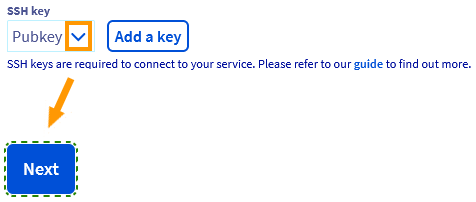

To add a key that is already stored in the OVHcloud Control Panel (see Step 2), select it from the list.

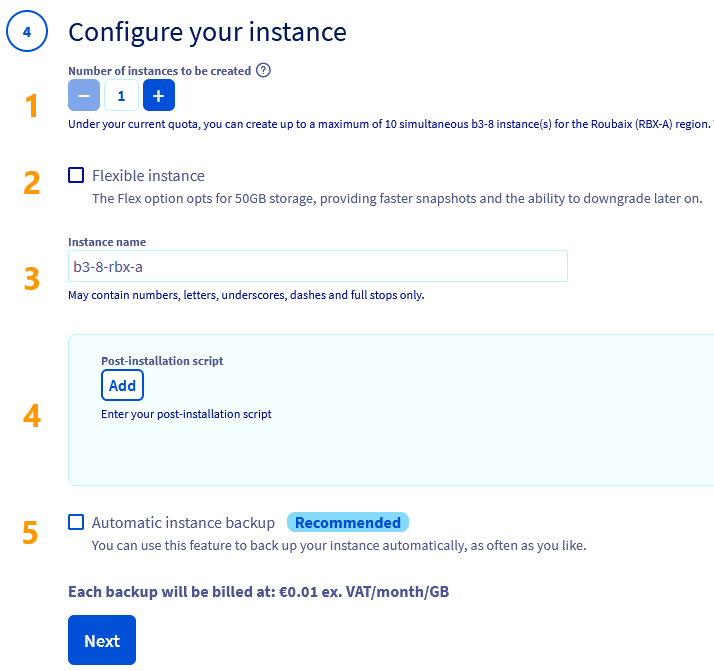

Step 4.4: Configure your instance
This step offers several configuration options. Click on the tabs below to view the details:
You can create multiple instances based on the selections in the creation steps but resource quota limitations will apply.

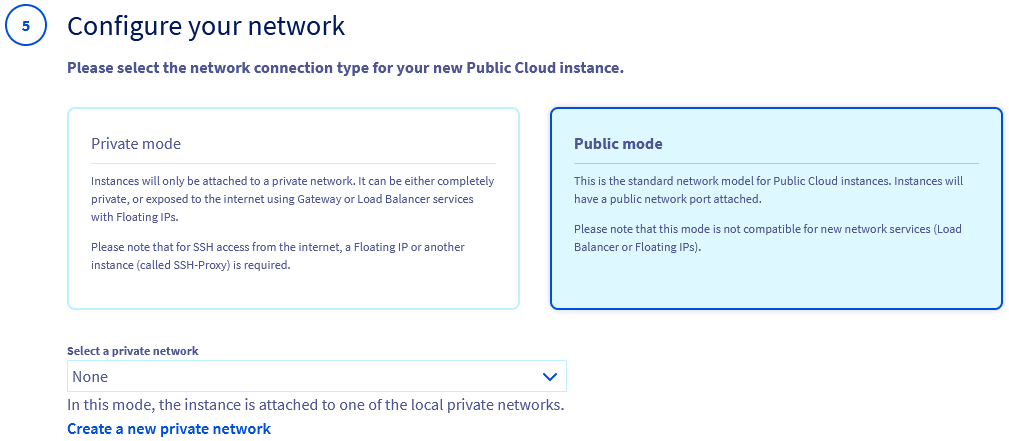

Step 4.5: Configure your network

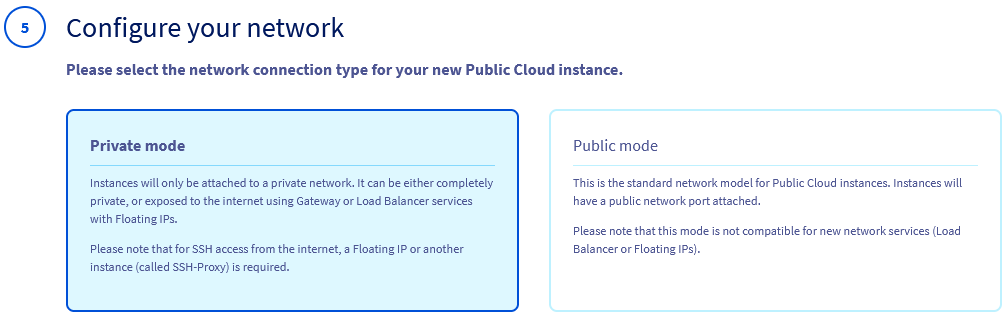

In this step you need to apply the Public Cloud network mode you have decided on, based on the information in Step 3 above. Your options depend on the previous choice of location for the instance (Region or Local Zone).
Regions
The instance can remain fully private.

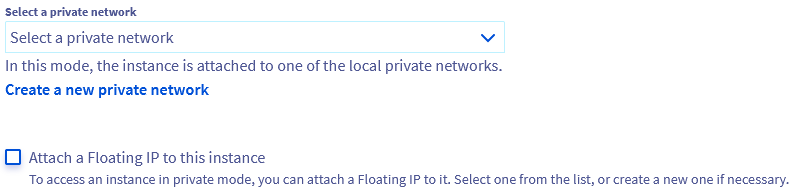

You can connect the instance to a private network and a Floating IP. No dedicated public IP address will be attached.
Note that if you click on Create a new private network, the instance creation process will be interrupted and has to be restarted from the beginning.

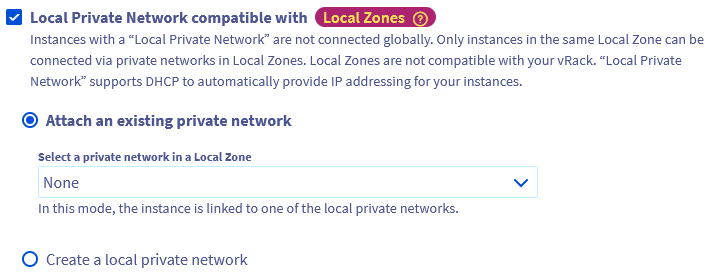

Local Zones

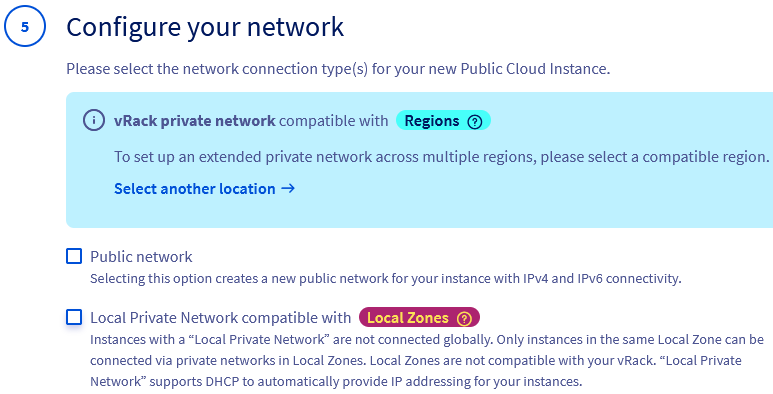

You can choose to attach the instance to a private network, make it publicly reachable or both.
If you select the option Public network, the instance will be exposed to the public internet directly via IPv4/IPv6.
You can additionally connect the instance to a private network (not compatible with vRack) if you select Local Private Network compatible with Local Zones (see tab Local Private Network).

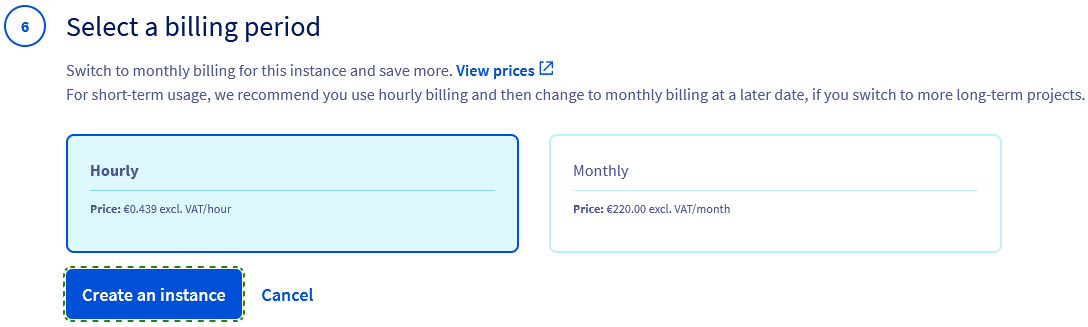

Step 4.6: Select a billing period
Please note that hourly billing might be the only selection displayed, depending on the choice of instance model. This is a temporary limitation; new Public Cloud billing options will soon be available.
Monthly billing will result in lower cost over time but cannot be changed to hourly billing after the instance is created.
Once you have finished your instance configuration, click on the button Create an instance. It may take a few minutes until your service is delivered.
Step 5: Connect to the instance
The instructions in this part concern remote connections by means of the OpenSSH and RDP protocols through a public network (internet).
Note that we provide alternative ways of access (mainly used for troubleshoooting) which are only available via your OVHcloud Control Panel:
If you have installed an OS with application, refer to our guide on first steps with applications as well as the official documentation by the respective publisher.
5.1: Verify the instance status in the OVHcloud Control Panel
Log in to the OVHcloud Control Panel, go to the Public Cloud section and select the Public Cloud project concerned.

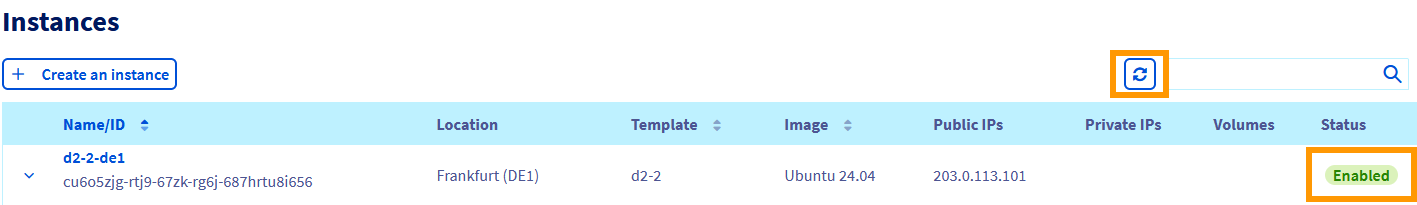

Select Instances in the left-hand navigation bar under Compute. Your instance is ready when the status is set to Enabled in the table. If the instance was recently created and has a different status, click on the "Refresh" button located next to the search filter.
Click on the instance's name in this table to open the Dashboard on which you can find all information about the instance. To learn more about the functions available on this page, consult our guide on managing instances in the Control Panel.
A user with elevated permissions (sudo) is automatically created on the instance. The username reflects the image installed, e.g "ubuntu", "debian", "fedora", etc. You can verify this on the right-hand side of the Dashboard in the section Networks.
If your SSH key pair is set up correctly, you can now connect to the instance with the preconfigured user and your SSH key. You can find more detailed instructions in the subsequent paragraphs.
Access via VNC console on a new GNU/Linux OS instance created in the Control Panel must be enabled first as described in the guide section below.
This guide does not cover private networking for instances. Please consult our documentation on Public Cloud Network Services regarding this topic.
5.2: First login on an instance with a GNU/Linux OS installed
If you receive error messages regarding your SSH keys, verify that your local device has a properly configured private SSH key using the information in this guide.
If you still encounter issues, you can replace the key pair with the help of this guide.
If you have created an instance without an SSH key, via the OVHcloud API or the OpenStack Horizon interface, you can only add an SSH key to your instance via rescue mode by following the instructions set out in this guide.
You can access your instance immediately after creation through the command line interface of your local device (Terminal, Command prompt, Powershell, etc.) via SSH.
Example:
Depending on your setup, you will have to enter a passphrase that protects your private key or specify the path to your key file. Consult our SSH keys guide for detailed information on this topic.
If you use an alternative SSH client software, refer to its user documentation. A usage example for the open-source solution PuTTY is available in this guide.
Continue with Step 6 below.
5.3: Windows instances
5.3.1: Finish the installation of the Windows instance
After verifying that the Windows instance is installed, open the tab VNC console in your OVHcloud Control Panel.
You will then need to complete the initial setup of your Windows OS. Follow the steps below by navigating through the tabs:
Configure your country/region, the preferred Windows language, and your keyboard layout. Then click on the button Next at the bottom right.
5.3.2: Log in remotely from Windows
On your local Windows device, you can use the Remote Desktop Connection client application to connect to your instance.
Enter the IPv4 address of your instance, then your username and passphrase. Usually a warning message will appear, asking to confirm the connection because of an unknown certificate. Click on Yes to log in.
If you experience any issues with this procedure, verify that remote (RDP) connections are allowed on your device by checking your system settings, firewall rules and possible network restrictions.
5.3.3: Log in remotely from another OS
Connections from a desktop OS other than Windows usually require a client software compatible with the Remote Desktop Protocol (RDP). Some desktop environments and operating systems might have a native client built in.
Whichever client you are using, you only need the IP address of your instance and your password for the Administrator account to connect.
Example of use

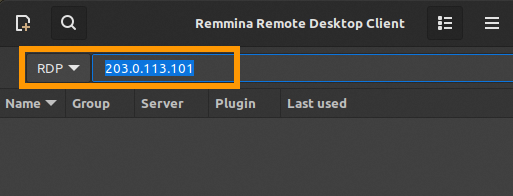

The free and open-source software Remmina Remote Desktop Client is available for many GNU/Linux desktop distributions. If you do not find Remmina in your desktop environment's software manager, you can obtain it from the official website.

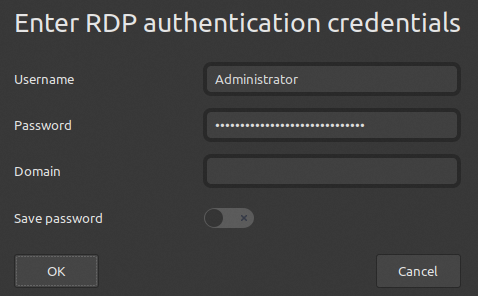

Open Remmina and make sure the connection protocol is set to "RDP". Enter the IPv4 address of your Public Cloud instance and press Enter.

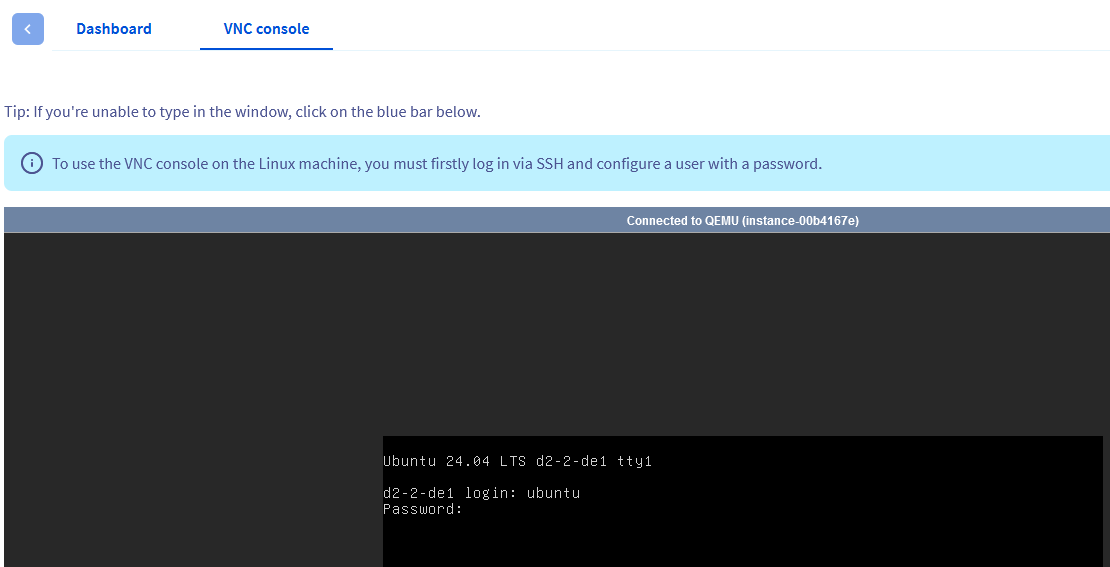

5.4: VNC console access
The VNC console allows you to connect to your instances even when other means of access are not available.
Log in to the OVHcloud Control Panel, go to the Public Cloud section and select the Public Cloud project concerned.
Select Instances in the left-hand navigation bar under Compute. Click on the instance name and open the tab VNC console.
You will need to have a user account with a password configured on the instance in order to use the VNC console. To set a password for the preconfigured account, follow the steps in section 6.1.1 below.
Step 6: First steps on a new instance
Windows instances
There are no additional steps required for instances with a Windows OS installed.
You can find more information in the Go further section below.
6.1: User management
When configuring user accounts and permission levels on an instance, we recommend to make use of the information in our user account guide.
6.1.1: Set a password for the current user account
When logged on to your instance, set a password for the current user by entering this command:
Enter a passphrase, confirm with Enter and repeat.
This is sufficient to enable logins via the VNC console in your OVHcloud Control Panel. Remote SSH logins with this password however are still disabled by default.
6.1.2: How to enable remote logins via password (optional)
This step is not necessary and should only be executed if you have a viable reason to enable this access type; for example if you need to temporarily log in to the instance from a device that does not have your private SSH key stored on it.
The following example illustrates a temporary solution on an instance with Ubuntu installed. Note that you might need to adjust the commands according to your OS. It is not recommended to keep this configuration permanently because it adds a potential security risk by opening the system to SSH-based attacks.
When logged on to your instance, open the pertinent configuration file with a text editor. Example:
Edit the line #PasswordAuthentication yes as follows:
Edit the line Include /etc/ssh/sshd_config.d/*.conf as follows:
Save the file and close the editor.
Restart the SSH service with one of the following commands:
You can now log in via SSH with username and password as well.
Reverse these changes to return to the key-based login for the instance.
6.2: Additional SSH keys
If you want to allow more user accounts to access the instance, the standard procedure is as follows:
- Create the account on the instance.
- Create a new SSH key pair on the device concerned.
- Add the public key to the instance.
Use our dedicated guide for a detailed explanation of these steps.
