Configuring a vROps alert via the SMTP protocol

Objective

This guide shows you how to configure your SMTP server to automate the sending of alerts and reports by email to vROps.

Requirements

A working SMTP server
SMTP flows allowed between your SMTP server and your vROps instance

Instructions

Open the flow

The first step is to open a flow on the OVHcloud API to enable vROps to communicate with your SMTP server.

You can check that the flow has been opened using this endpoint.

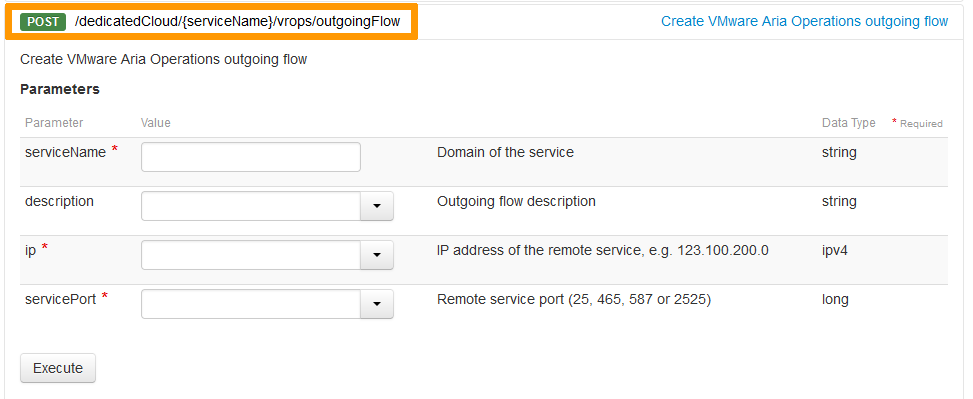

To do this, use the following API call:

POST/dedicatedCloud/{serviceName}/vrops/outgoingFlow

Fill in the API call fields. If the results are not as expected, check your server port openings.

PARAMETER	DESCRIPTION
serviceName	Domain of the service
description	Outgoing flow description (for example, here connect to SMTP)
ip	IP address of the remote service, e.g., 123.100.200.0
servicePort	Remote service port (587)

Configuring vROps alerting

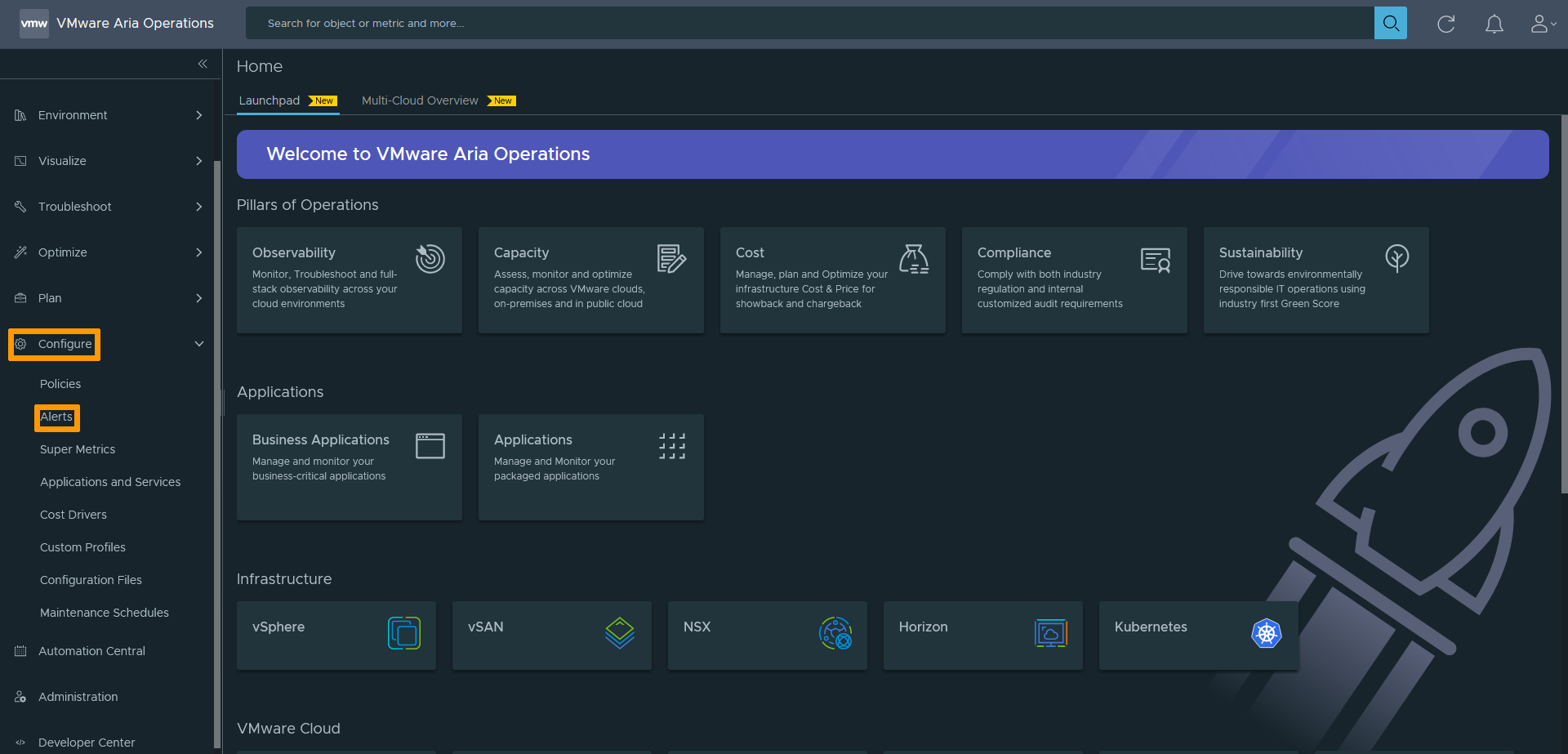

Once the flow has been opened, you need to configure the email alert on your vROps. To do this, go to the Configure section, then the Alerts section.

Panel Alert

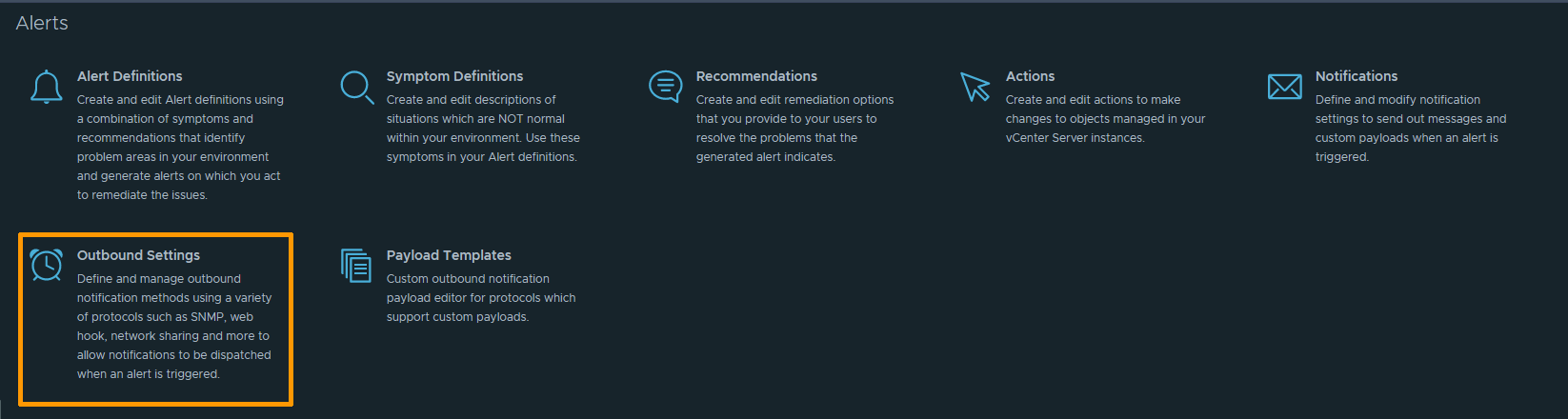

Several types of alerts are available, just select Outbound Settings.

Panel Alert2

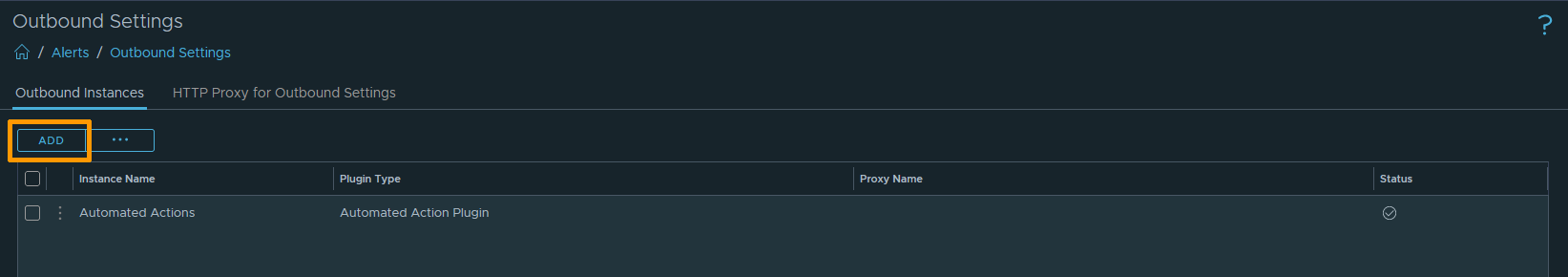

The page shows a summary of all your Outbound Settings. Click on the ADD button.

Add Button

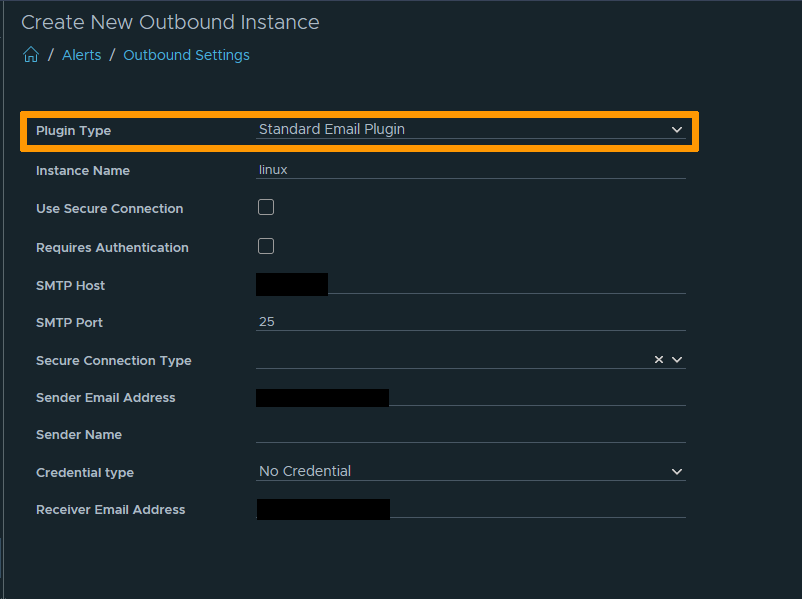

In the Plugin type option, select Standard Email Plugin. A series of options will appear, just fill in the fields.

OPTION	DESCRIPTION
Use Secure Connection	Activates secure communication encryption using SSL/TLS. If you select this option, you must select a method in the `Secure Connection Type` drop-down menu.
Requires Authentication	Activates authentication on the email user account that you use to configure this SMTP instance. If you select this option, you must provide a password for the user account.
SMTP Host	URL or IP address of your email host server.
SMTP Port	Default port SMTP uses to connect with the server.
Secure Connection Type	Select either SSL/TLS as the communication encryption method used in your environment from the drop-down menu. You must select a connection type if you select `Use Secure Connection`.
User Name	Email user account that is used to connect to the email server.
Password	Password for the connection user account. A password is required if you select `Requires Authentication`.
Sender Email Address	Email address that appears on the notification message.
Sender Name	Displayed name for the sender email address.
Receiver Email Address	Receiver's email address.

Alert Configure

Warning

For demonstration purposes, authentication has not been configured on the SMTP server. However, for obvious security reasons, we strongly advise you to do so!

You can test your configuration using the Test button at the bottom of the page.

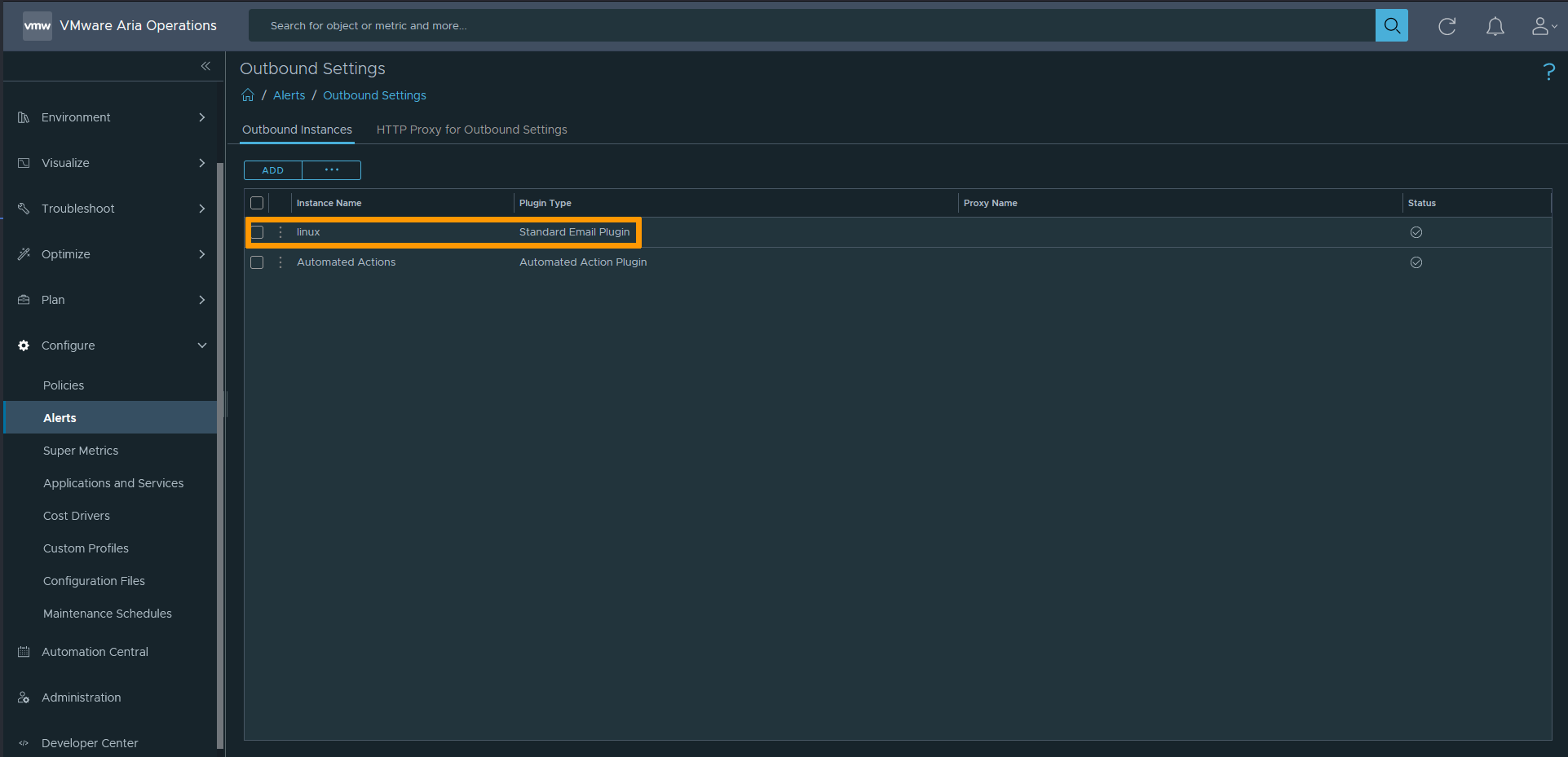

Once these operations are complete, you will find the details of your alert configuration in the previous summary.

Finally, check that your alert is working properly by verifying that the emails are being received correctly.

ResultAlert

Modification of an existing alert

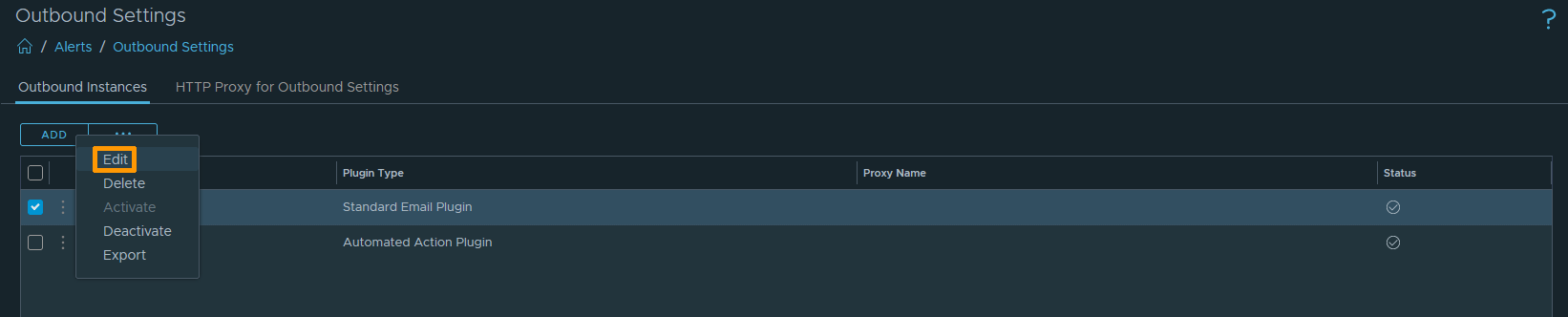

You can modify an existing alert by clicking on it from the menu.
