Resetting an OVHcloud Managed Kubernetes cluster

Objective

OVHcloud Managed Kubernetes service provides you Kubernetes clusters without the hassle of installing or operating them.

Through the OVHcloud Control Panel and the API, you can reset your OVHcloud Managed Kubernetes cluster.

The whole cluster configuration is reset but some values can be defined (optional):

• workerNodesPolicy: reinstall|delete
• minor_version: for ex. 1.25
• updatePolicy: "ALWAYS_UPDATE" by default
• customization: API Server & kube proxy configuration
• privateNetworkId: private network openstack UUID
• privateNetworkConfiguration: true|false
• defaultVrackGateway: gateway IP
• kubeProxyMode: ipvs|iptables

Requirements

• an OVHcloud Managed Kubernetes cluster

OVHcloud Control Panel Access

• Direct link: All my Public Cloud projects
• Navigation path: Public Cloud > Select your project > Managed Kubernetes Service

Instructions

Reset a Kubernetes cluster on the OVHcloud Control Panel

Step 1 - Ask for cluster reset on the OVHcloud Control Panel

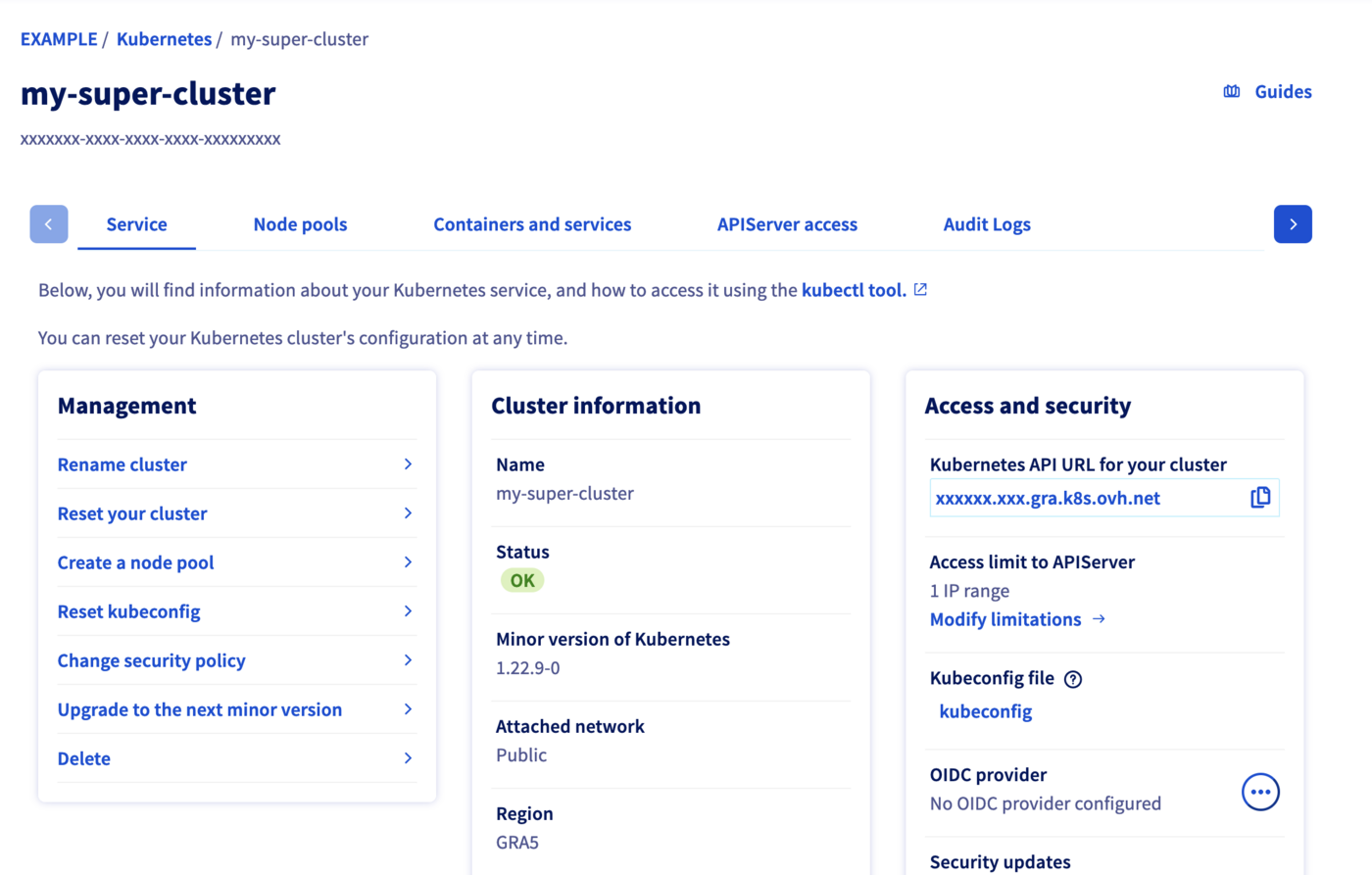

Click on your Kubernetes cluster name to open its details page. Go to the Service tab of the administration UI, then click on Reset your cluster.

Step 2 - Choose the type of reset you want

You have two options on the reset menu, Delete and Reinstall.

• Choosing Delete nodes means that the current cluster nodes are deleted, and the cluster is reinitialized to an empty state.

• Choosing Keep and reinstall nodes means that the cluster is reinitialized without destroying the nodes.

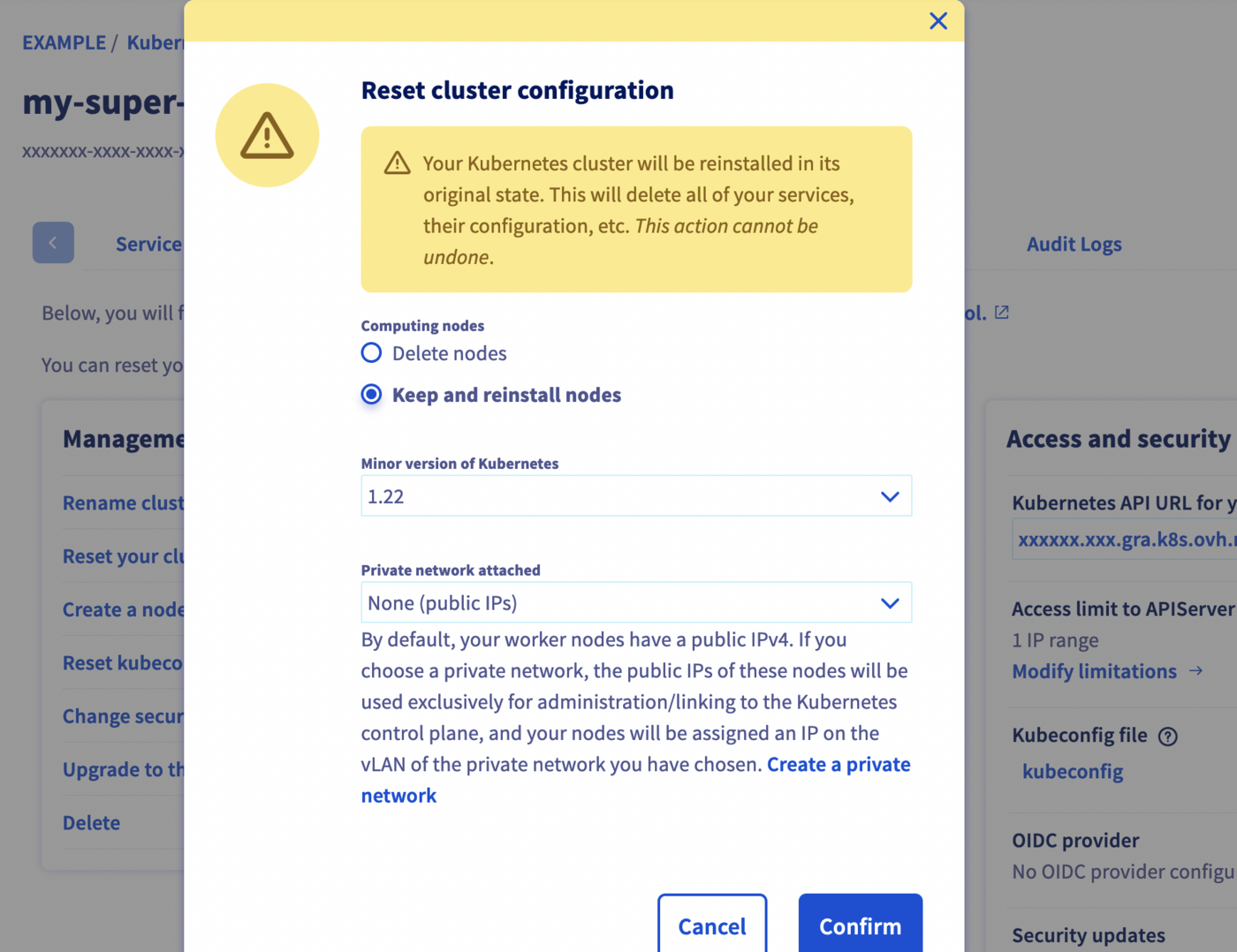

In the reset dialog, select either Delete nodes or Keep and reinstall nodes depending on your needs. You can also choose the minor version of the cluster and the private network attached.

Click on the Confirm button to continue.

Step 3 - Wait for the resetting to end

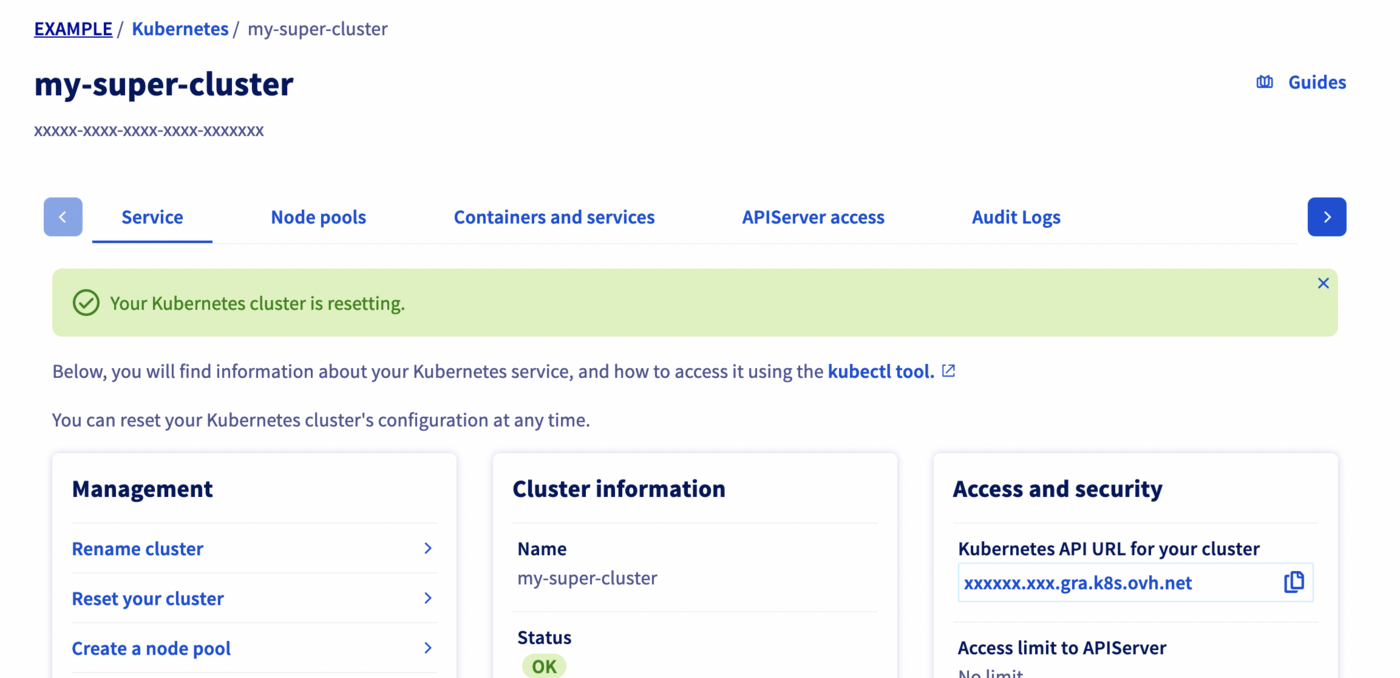

Depending on the chosen kind of reset, the process can take several minutes. During that time, a message on the manager warns you that the cluster is under resetting:

Reset a Kubernetes cluster through the API

The API Explorer

To simplify things, we are using the API Explorer which allows to explore, learn and interact with the API in an interactive way.

If you go to the Kubernetes section of the API Explorer, you will see the available endpoints, such as:

API endpoints

• Reset a Kubernetes cluster:

Input:

{
  "name": "my-test-cluster",
  "updatePolicy": "ALWAYS_UPDATE",
  "version": "1.34"
}

Result:

null

By default, if you don't specify it, the workerNodesPolicy option will be equivalent to delete. If you don't want your Nodes deleted but reinstalled instead, you have to specify "workerNodesPolicy": "reinstall".

• Check the Kubernetes cluster is resetting:

Result:

{
  "id": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx",
  "region": "GRA5",
  "name": "my-test-cluster",
  "url": "xxxxxx.xx.gra.k8s.ovh.net",
  "nodesUrl": "xxxxxx.nodes.c1.gra.k8s.ovh.net",
  "version": "1.34.1",
  "nextUpgradeVersions": [],
  "kubeProxyMode": "iptables",
  "customization": {
    "apiServer": {
      "admissionPlugins": {
        "enabled": [
          "AlwaysPullImages",
          "NodeRestriction"
        ],
        "disabled": []
      }
    }
  },
  "status": "REDEPLOYING",
  "updatePolicy": "ALWAYS_UPDATE",
  "isUpToDate": true,
  "controlPlaneIsUpToDate": true,
  "privateNetworkId": null,
  "createdAt": "2023-03-21T10:53:35Z",
  "updatedAt": "2023-03-22T09:16:34Z"
}

Go further

To have an overview of OVHcloud Managed Kubernetes service, you can go to the OVHcloud Managed Kubernetes page.

Otherwise to skip it and learn more about using your Kubernetes cluster the practical way, we invite you to look at our tutorials.
