How to manage nodes and node pools on an OVHcloud Managed Kubernetes cluster

In your OVHcloud Managed Kubernetes cluster, nodes are grouped in node pools (group of nodes sharing the same configuration).

In the cluster creation call, you can specify the specs of a first node pool that will be created with it. Then, you can update this node pool, or add additional node pools of different sizes and types.

Upon creation, a node pool is defined by its name (name), the type of instance within our available catalog (flavorName), the number of identical nodes that you want in that node pool (desiredNodes), and potentially self-defined boundaries to limit the value of desired nodes (minNodes and maxNodes).

You can also enable the autoscale feature, and the desiredNodes will be automatically updated at runtime within the minNodes and maxNodes boundaries, depending on the resource reservations of your workload (see Using the cluster autoscaler).

Setting the antiAffinity boolean ensures that nodes in that node pool will be created on different hypervisors (baremetal machines) and therefore ensure the best availability for your workload. The maximum number of nodes is set to 5 if this feature is activated on a nodepool (you can of course create multiple node pools with each 5 anti-affinity nodes max).

Setting the template property will allow you to define some specs (annotations, finalizers, labels, taints, schedulability) that will be applied to each node under this node pool.

If your cluster have been created in a 3AZ Region, you also must specify an AZ with the availabilityZones parameter.

You can enable the creation of Floating IPS with the attachFloatingIps parameter. If enabled boolean is true, a Floating IP will be attached to each node.

Finally the boolean monthlyBilled ensures that all nodes in a node pool will be spawned in monthly billing mode and therefore benefit from the monthly discount.

After creation, the desiredNodes, minNodes, maxNodes, autoscale and template properties can also be edited at any time.

In this guide we explain how to do some basic operations with nodes and node pools using the OVHcloud API: adding nodes to an existing node pool, creating a new node pool, etc.

In your OVHcloud Managed Kubernetes cluster, nodes are grouped in node pools (group of nodes sharing the same configuration).

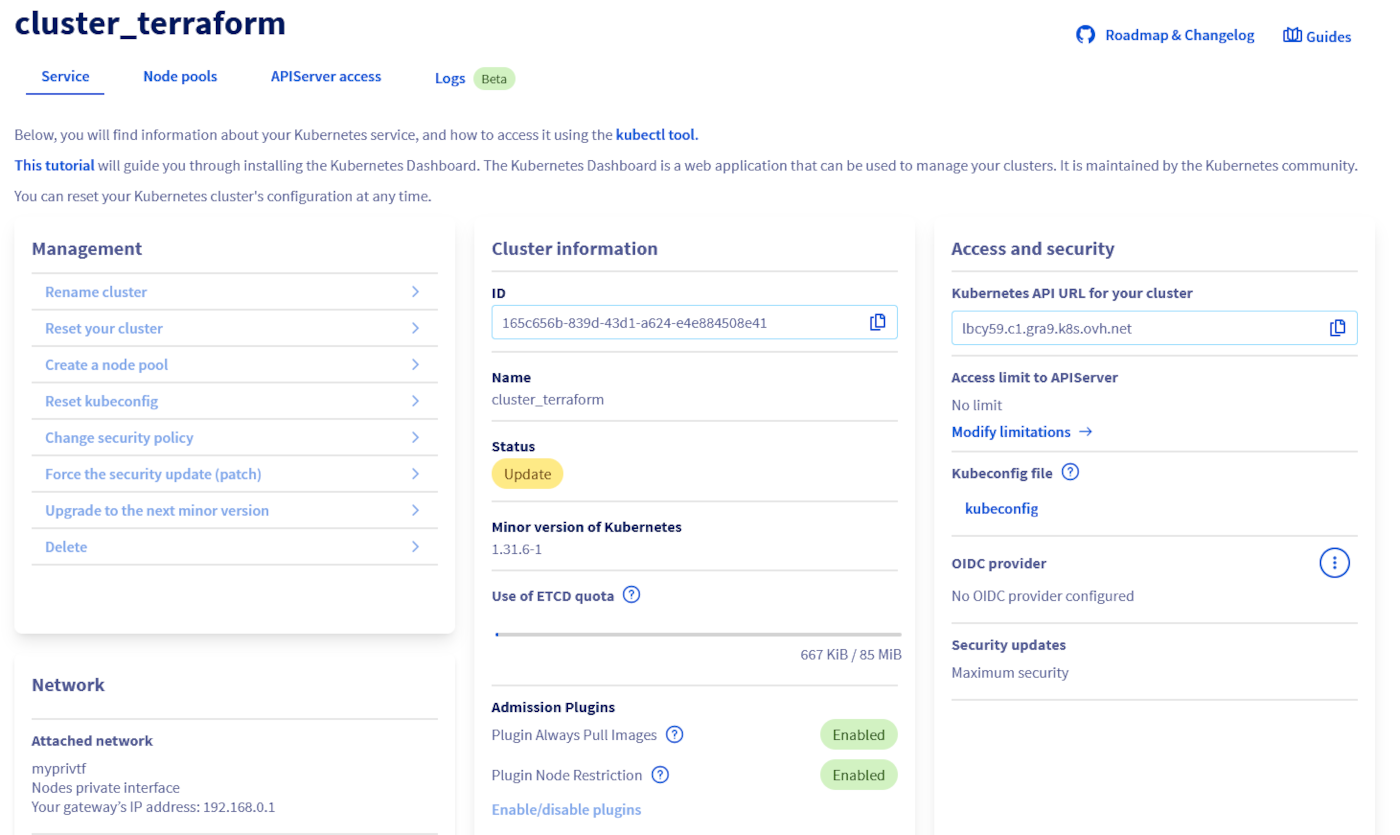

When you create your cluster, it's created with a default node pool. Then, you can modify the size of this node pool, or add additional node pools of different sizes and types.

In this guide we explain how to do some basic operations with nodes and node pools using the NodePools CRD: adding nodes to an existing node pool, creating a new node pool, etc.

To simplify things, we are using the API Explorer, which allows to explore, learn and interact with the API in an interactive way.

If you go to the Cloud section of the API Explorer, you will see the available /cloud/project/{serviceName}/kube endpoint.

Kubernetes Custom Resources are extensions of the Kubernetes API. Like the default Kubernetes resources, the Custom Resources are endpoints in the Kubernetes API that store collections of API objects of a certain kind. Custom Resources allows to easily extend Kubernetes by adding new features and behaviors.

The simplest way to add a Custom Resource to Kubernetes is to define a CustomResourceDefinition (CRD) with the resource schema.

One of our targets in developing the node pools for OVHcloud Managed Kubernetes was to give our users the capability to fully manage node pools (and by extension nodes themselves) from within Kubernetes, so the logical way to do it was to propose them as Custom Resources in your Kubernetes cluster, by developing the NodePools CRD.

To verify that the NodePools CRD in available in your cluster, do:

kubectl get crd

You get the list of installed CRDs and inside it the nodepools.kube.cloud.ovh.com

$ kubectl get crd
NAME                                             CREATED AT
...
ingresses.networking.internal.knative.dev              2023-01-03T07:25:05Z
ipamblocks.crd.projectcalico.org                       2022-09-22T07:00:52Z
ipamconfigs.crd.projectcalico.org                      2022-09-22T07:00:52Z
ipamhandles.crd.projectcalico.org                      2022-09-22T07:00:53Z
ippools.crd.projectcalico.org                          2022-09-22T07:00:53Z
ipreservations.crd.projectcalico.org                   2022-09-22T07:00:53Z
kubecontrollersconfigurations.crd.projectcalico.org    2022-09-22T07:00:53Z
metrics.autoscaling.internal.knative.dev               2023-01-03T07:25:05Z
networkpolicies.crd.projectcalico.org                  2022-09-22T07:00:53Z
networksets.crd.projectcalico.org                      2022-09-22T07:00:53Z
nodefeaturerules.nfd.k8s-sigs.io                       2023-04-25T07:59:58Z
nodefeatures.nfd.k8s-sigs.io                           2023-04-25T07:59:58Z
<b style={{color:"yellow"}}>nodepools.kube.cloud.ovh.com                           2022-09-22T06:59:43Z</b>
podautoscalers.autoscaling.internal.knative.dev        2023-01-03T07:25:05Z
podmonitors.monitoring.coreos.com                      2023-04-26T09:19:12Z
podvolumebackups.velero.io                             2022-10-04T06:56:54Z
podvolumerestores.velero.io                            2022-10-04T06:56:54Z
probes.monitoring.coreos.com                           2023-04-26T09:19:12Z
...

You can get the details of the NodePools CRD by doing:

kubectl describe crd nodepools.kube.cloud.ovh.com

The most interesting part is the spec of the CRD, describing the NodePool object and its properties:

spec:
  description: NodePoolSpec defines the desired state of NodePool
  properties:
    antiAffinity:
      description: Represents whether the pool should deploy instances exclusively on different hypervisors.
      nullable: true
      type: boolean
    attachFloatingIPs:
      description: AttachFloatingIPs describe network exposition of all nodes in the pool.
      nullable: true
      properties:
        enabled:
          description: Enabled describe the node network exposition. If True, a FloatingIP will be assigned to each node.
          type: boolean
      type: object
    autoscale:
      description: Represents whether the pool should be autoscaled.
      nullable: true
      type: boolean
    autoscaling:
      description: Represents the autoscaling customization of a node pool.
      nullable: true
      properties:
        scaleDownUnneededTimeSeconds:
          description: Represents how long a node should be unneeded before it is eligible for scale down.
          format: int32
          minimum: 0
          nullable: true
          type: integer
        scaleDownUnreadyTimeSeconds:
          description: Represents how long an unready node should be unneeded before it is eligible for scale down.
          format: int32
          minimum: 0
          nullable: true
          type: integer
        scaleDownUtilizationThreshold:
          description: Represents the ratio of used resources (CPU & RAM)
            over allocatable resources below which a node is eligible for
            scale down Kubebuilder does not handle float, this must be a
            string.
          nullable: true
          type: string
      type: object
    availabilityZones:
      description: Represents the availability zones of the node pool.
      items:
        type: string
      nullable: true
      type: array
    desiredNodes:
      description: Represents the number of nodes wanted in the pool.
      format: int32
      maximum: 999
      minimum: 0
      type: integer
    flavor:
      description: Represents the node flavors wanted in the pool.
      type: string
    maxNodes:
      description: Represents the maximum number of nodes which should be
        present in the pool.
      format: int32
      maximum: 999
      minimum: 0
      nullable: true
      type: integer
    minNodes:
      description: Represents the minimum number of nodes which should be
        present in the pool.
      format: int32
      maximum: 100
      minimum: 0
      nullable: true
      type: integer
    monthlyBilled:
      description: Represents the billing type of the pool. False means that the pool is hourly-billed.
      nullable: true
      type: boolean
    template:
      description: Template describes the configuration of the nodes in the pool. On change, it will be applied to existing and future nodes.
      nullable: true
      properties:
        metadata:
          description: Standard object's metadata.
          properties:
            annotations:
              additionalProperties:
                type: string
              description: 'Annotations is an unstructured key value map
                stored with a resource that may be set by external tools
                to store and retrieve arbitrary metadata. They are not queryable
                and should be preserved when modifying objects. More info:
                http://kubernetes.io/docs/user-guide/annotations'
              type: object
            finalizers:
              description: Must be empty before the object is deleted from
                the registry. Each entry is an identifier for the responsible
                component that will remove the entry from the list. If the
                deletionTimestamp of the object is non-nil, entries in this
                list can only be removed.
              items:
                type: string
              type: array
            labels:
              additionalProperties:
                type: string
              description: 'Map of string keys and values that can be used
                to organize and categorize (scope and select) objects. May
                match selectors of replication controllers and services.
                More info: http://kubernetes.io/docs/user-guide/labels'
              type: object
          required:
          - annotations
          - finalizers
          - labels
          type: object
        spec:
          description: Specification of the desired behavior of the node.
          properties:
            taints:
              description: If specified, the node's taints.
              items:
                description: The node this Taint is attached to has the "effect" on any pod that does not tolerate the Taint.
                properties:
                  effect:
                    description: Required. The effect of the taint on pods
                      that do not tolerate the taint. Valid effects are
                      NoSchedule, PreferNoSchedule and NoExecute.
                    type: string
                  key:
                    description: Required. The taint key to be applied to a node.
                    type: string
                  timeAdded:
                    description: TimeAdded represents the time at which the taint was added. It is only written for NoExecute taints.
                    format: date-time
                    type: string
                  value:
                    description: The taint value corresponding to the taint
                      key.
                    type: string
                required:
                - effect
                - key
                type: object
              type: array
            unschedulable:
              description: 'Unschedulable controls node schedulability of
                new pods. By default, node is schedulable. More info: https://kubernetes.io/docs/concepts/nodes/node/#manual-node-administration'
              type: boolean
          required:
          - taints
          - unschedulable
          type: object
      required:
      - metadata
      - spec
      type: object
  required:
  - flavor
 type: object

After creation:

• The desiredNodes can be edited and the node pool will automatically be resized to accommodate this new value.
• minNodes, maxNodes, autoscale and autoscaling can also be edited at any time.
• /!\ flavor, name and antiAffinity are not editable.

Be aware that maxNodes is set by default to 5 when antiAffinity is enabled.

To configure cluster autoscaling based on node pools, follow the documentation Configuring the cluster autoscaler and Cluster autoscaler example.
To customers developing they own autoscaling scripts, we strongly encourage you to define minNodes and maxNodes.

The GET /cloud/project/{serviceName}/kube/{kubeId} API endpoint provides important information about your OVHcloud Managed Kubernetes cluster, including its status and URL.

Result:

{
  "id": "xxxxxxxx-xxxx-4cdf-xxxx-xxxxxxxxxxxx",
  "region": "GRA5",
  "name": "my_kube_cluster",
  "url": "xxxxxx.c1.gra.k8s.ovh.net",
  "nodesUrl": "xxxxxx.nodes.c1.gra.k8s.ovh.net",
  "version": "1.34.1",
  "nextUpgradeVersions": [],
  "kubeProxyMode": "iptables",
  "customization": {
    "apiServer": {
      "admissionPlugins": {
        "enabled": [
          "NodeRestriction"
        ],
        "disabled": [
          "AlwaysPullImages"
        ]
      }
    },
    "kubeProxy": {
      "iptables": {},
      "ipvs": {}
    }
  },
  "status": "READY",
  "updatePolicy": "ALWAYS_UPDATE",
  "isUpToDate": true,
  "controlPlaneIsUpToDate": true,
  "privateNetworkId": null,
  "createdAt": "2023-02-09T10:41:13Z",
  "updatedAt": "2023-02-09T10:45:06Z"
}

The GET /cloud/project API endpoint lists all the available Public Cloud Services associated to your OVHcloud account:

Result:

[
  "a212xxxxxxxxxxxxxxxxx59"
]

Choose the Public Cloud Service corresponding to your OVHcloud Managed Kubernetes. In this example, we will refer to it as serviceName.

The GET /cloud/project/{serviceName}/kube API endpoint lists all the available clusters in your chosen project:

Result:

[
  "xxxxxxxx-xxxx-4cdf-xxxx-xxxxxxxxxxxx",
  "xxxxxxxx-xxxx-43f6-xxxx-xxxxxxxxxxxx",
  "xxxxxxxx-xxxx-4217-xxxx-xxxxxxxxxxxx",
  "xxxxxxxx-xxxx-458b-xxxx-xxxxxxxxxxxx",
  "xxxxxxxx-xxxx-4845-xxxx-xxxxxxxxxxxx"
]

By calling it, you can view a list of your Kubernetes clusters ID. Note down the ID of the cluster you want to use. In this example, we will refer to it as kubeId.

To list node pools, you can use:

kubectl get nodepools

In my case I have one node pool in my cluster, called my-node-pool, with 2 B2-7 nodes:

$ kubectl get nodepools
NAME            FLAVOR   AUTOSCALED   MONTHLY BILLED   ANTIAFFINITY   DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   MIN   MAX   AGE
nodepool-b2-7   b2-7     false        true             true           2         2         2            2           0     5     14d

You can see the state of the node pool, how many nodes you want in the pool (DESIRED), how many actually are (CURRENT), how many of them are up-to-date (UP-TO-DATE) and how many are available to be used (AVAILABLE).

Use the GET /cloud/project/{serviceName}/kube/{kubeId}/nodepool/{nodePoolId} API endpoint to get information on a specific node pool:

Result:

{
  "id": "xxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx",
  "projectId": "xxxx",
  "name": "nodepool-xxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx",
  "flavor": "b2-7",
  "status": "READY",
  "sizeStatus": "CAPACITY_OK",
  "autoscale": false,
  "monthlyBilled": false,
  "antiAffinity": false,
  "desiredNodes": 1,
  "minNodes": 0,
  "maxNodes": 100,
  "currentNodes": 1,
  "availableNodes": 1,
  "upToDateNodes": 0,
  "createdAt": "2022-09-22T06:58:09Z",
  "updatedAt": "2022-12-15T15:14:33Z",
  "autoscaling": {
    "scaleDownUtilizationThreshold": 0.5,
    "scaleDownUnneededTimeSeconds": 600,
    "scaleDownUnreadyTimeSeconds": 1200
  },
  "template": {
    "metadata": {
      "labels": {},
      "annotations": {},
      "finalizers": []
    },
    "spec": {
      "unschedulable": false,
      "taints": []
    }
  }
}

Use this command:

kubectl get nodepool <nodepool-name> -o yaml

Use the POST /cloud/project/{serviceName}/kube/{kubeId}/nodepool API endpoint to create a new node pool:

Request:

{
  "antiAffinity": false,
  "autoscale": false,
  "desiredNodes": 1,
  "flavorName": "b2-7",
  "monthlyBilled": false,
  "name": "my-node-pool"
}

You will need to give it a flavorName parameter, with the flavor of the instance you want to create. For this tutorial choose a general purpose node, like the b2-7 flavor.

If you want your node pool to have at least one node, set the desiredNodes to a value above 0.

On a 3AZ Region, the availabilityZones is also mandatory. To get the availibilityZones available for a region, you can use the GET /cloud/project/{serviceName}/capabilities/productAvailability API endpoint.

To upsize or downsize your node pool, you can use the PUT /cloud/project/{serviceName}/kube/{kubeId}/nodepool/{nodePoolId} API endpoint, and set the desiredNodes to the new pool size. You can also modify some other properties:

{
  "antiAffinity": false,
  "autoscale": false,
  "desiredNodes": 4,
  "flavorName": "b2-7",
  "monthlyBilled": false,
  "name": "my-node-pool"
}

To upsize or downsize your node pool, you can simply edit the YAML file and re-apply it.
For example, raise the desiredNodes to 5 in new-nodepool.yaml and apply the file:

$ kubectl apply -f new-nodepool.yaml
nodepool.kube.cloud.ovh.com/my-new-node-pool configured

$ kubectl get nodepools
NAME               FLAVOR   AUTOSCALED   MONTHLY BILLED   ANTIAFFINITY   DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   MIN   MAX   AGE
my-new-node-pool   b2-7     false        false            false          5         3         3                        0     100   3s
nodepool-b2-7      b2-7     false        true             true           2         2         2            2           0     5     14d

The DESIRED number of nodes has changed, and the two additional nodes will be created.

Then, after some minutes:

$ kubectl get nodepools
NAME               FLAVOR   AUTOSCALED   MONTHLY BILLED   ANTIAFFINITY   DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   MIN   MAX   AGE
my-new-node-pool   b2-7     false        false            false          5         5         5            3           0     100   3s
nodepool-b2-7      b2-7     false        true             true           2         2         2            2           0     5     14d

$ kubectl get nodepools
NAME               FLAVOR   AUTOSCALED   MONTHLY BILLED   ANTIAFFINITY   DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   MIN   MAX   AGE
my-new-node-pool   b2-7     false        false            false          5         5         5            5           0     100   3s
nodepool-b2-7      b2-7     false        true             true           2         2         2            2           0     5     14d

You can also use kubectl scale —replicas=X to change the number of desired nodes. For example, let's resize it back to 2 nodes:

kubectl scale --replicas=2 nodepool my-new-node-pool

$ kubectl scale --replicas=2 nodepool my-new-node-pool
nodepool.kube.cloud.ovh.com/my-new-node-pool scaled

$ kubectl get nodepools
NAME               FLAVOR   AUTOSCALED   MONTHLY BILLED   ANTIAFFINITY   DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   MIN   MAX   AGE
my-new-node-pool   b2-7     false        false            false          2         5         5            5           0     100   3s
nodepool-b2-7      b2-7     false        true             true           2         2         2            2           0     5     14d

Then, after some minutes:

$ kubectl get nodepools
NAME               FLAVOR   AUTOSCALED   MONTHLY BILLED   ANTIAFFINITY   DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   MIN   MAX   AGE
my-new-node-pool   b2-7     false        false            false          2         2         2            2           0     100   3s
nodepool-b2-7      b2-7     false        true             true           2         2         2            2           0     5     14d

To delete a node pool, use the DELETE /cloud/project/{serviceName}/kube/{kubeId}/nodepool/{nodePoolId} API endpoint:

You can simply use kubectl to delete a node pool, as any other Kubernetes resource:

kubectl delete nodepool my-new-node-pool

After executing this command, Kubernetes will change the state of the nodes to Ready,SchedulingDisabled. After a little time, Nodes will be deleted.
